3. Install Seat and Rollers
A. Attach the Seat Pad to the Seat Stem using
four 1-inch zinc buttonhead bolts
two zinc flat washers
Wrench tighten using a 6mm hex key.
B. Insert the Seat Stem into the Seat Upright
Assembly. Pull out the seat adjustment pin to
insert the stem. Place the Seat Stem at its lowest
position.
C. Attach the Back Pad to the Main Upright using
two 2½-inch hex head bolts
two flat washers
Wrench tighten.

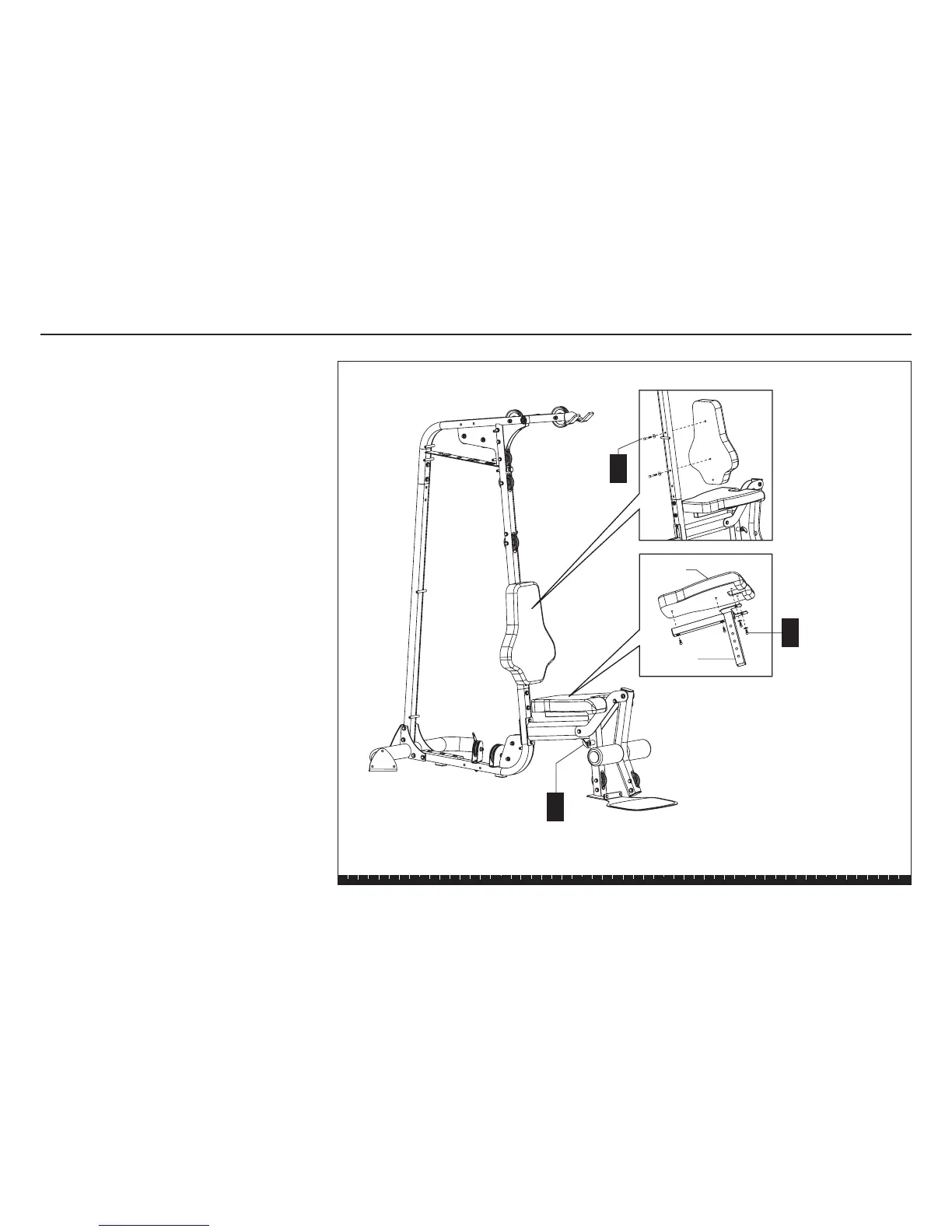

Step 3. Install Seat and Rollers
A
4 - 1" zinc
buttonhead bolts
2 - zinc washers
B
C
2 - 2½" bolts
2 - washers
Pull out the seat
adjustment pin to
insert stem.
Back
Pad
Seat Stem
Seat Pad

Precor move beyond S3.15 Specifications

Weight and Dimensions

length	72 inches (182 cm)
height	83 inches (211 cm)
width	51 inches (130 cm)
shipping weight	221 lb (100 kg)
