S3.15 Assembly and Maintenance Guide
page 22
1 2 3 4 5 6
9. Install Leg Press Option
Cable Connection
Note: If you plan to attach the Multi-Hip or Leg Press
Options, make sure that cable ends are on opposite
sides of the Main Base. Do not position the cable ends
as shown in this illustration.
A. Start at the Base Frame and feed the threaded end
of Cable 130195 under the 3½-inch pulley. Attach
the pulley to its base frame bracket using
one 2-inch hex head bolt
one flat washer
Wrench tighten.
B. Attach the threaded end of the cable to the Single
Floating Pulley. Continue turning the screw at least
three to four full turns to secure it inside the
floating pulley housing.

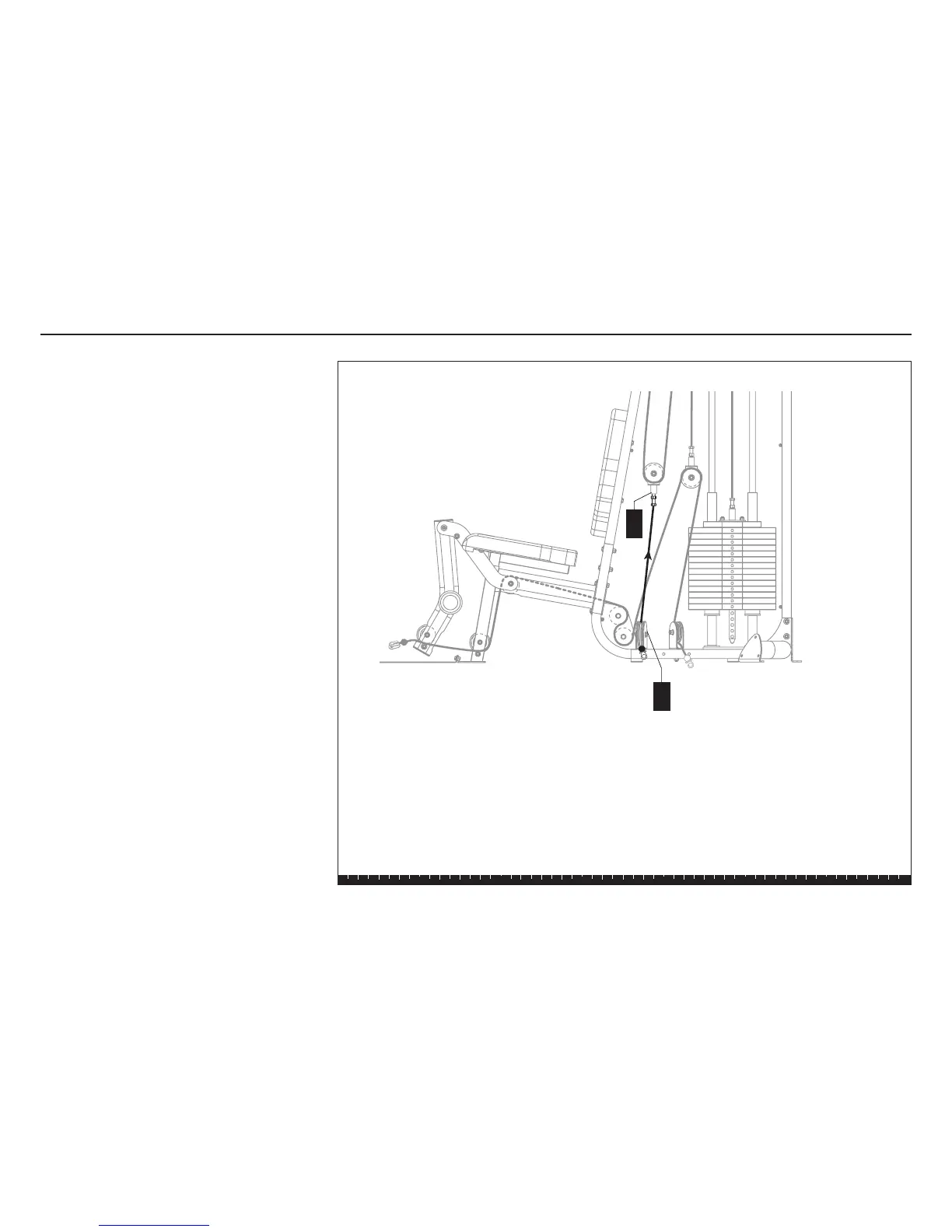

Step 9. Install Leg Press Option Cable Connection
B
A
1 - 2" zinc bolt
1 - washer

Precor move beyond S3.15 Specifications

Weight and Dimensions

length	72 inches (182 cm)
height	83 inches (211 cm)
width	51 inches (130 cm)
shipping weight	221 lb (100 kg)
