Precor move beyond S3.15 User Manual

S3.15 Assembly and Maintenance Guide
page 21
1 2 3 4 5 6
1 - rubber washer
1 - cable stop ball
1 - U-bracket
1 - 1¼" bolt
1 - locknut
G. Continue to feed the cable through the Seat Frame.
H. Disassemble the 3½-inch pulley located beneath
the seat. Feed the cable over the pulley and
reattach the pulley to the Seat Frame using
one 3-inch hex head bolt
two ³⁄₄-inch shoulder spacers
one locknut
J. Feed the cable under the lower 3½-inch pulley
located on the Seat Stem.
K. Feed the cable through the opening and under the
3½-inch pulley located in the Leg Extension Arm.
L. Replace the rubber washer and cable stop ball
onto the end of the cable and insert the end of the
cable into the U-bracket. Complete the U-bracket
assembly using
one 1¼-inch shoulder bolt
one locknut
M. Wrench tighten all pulley fasteners.

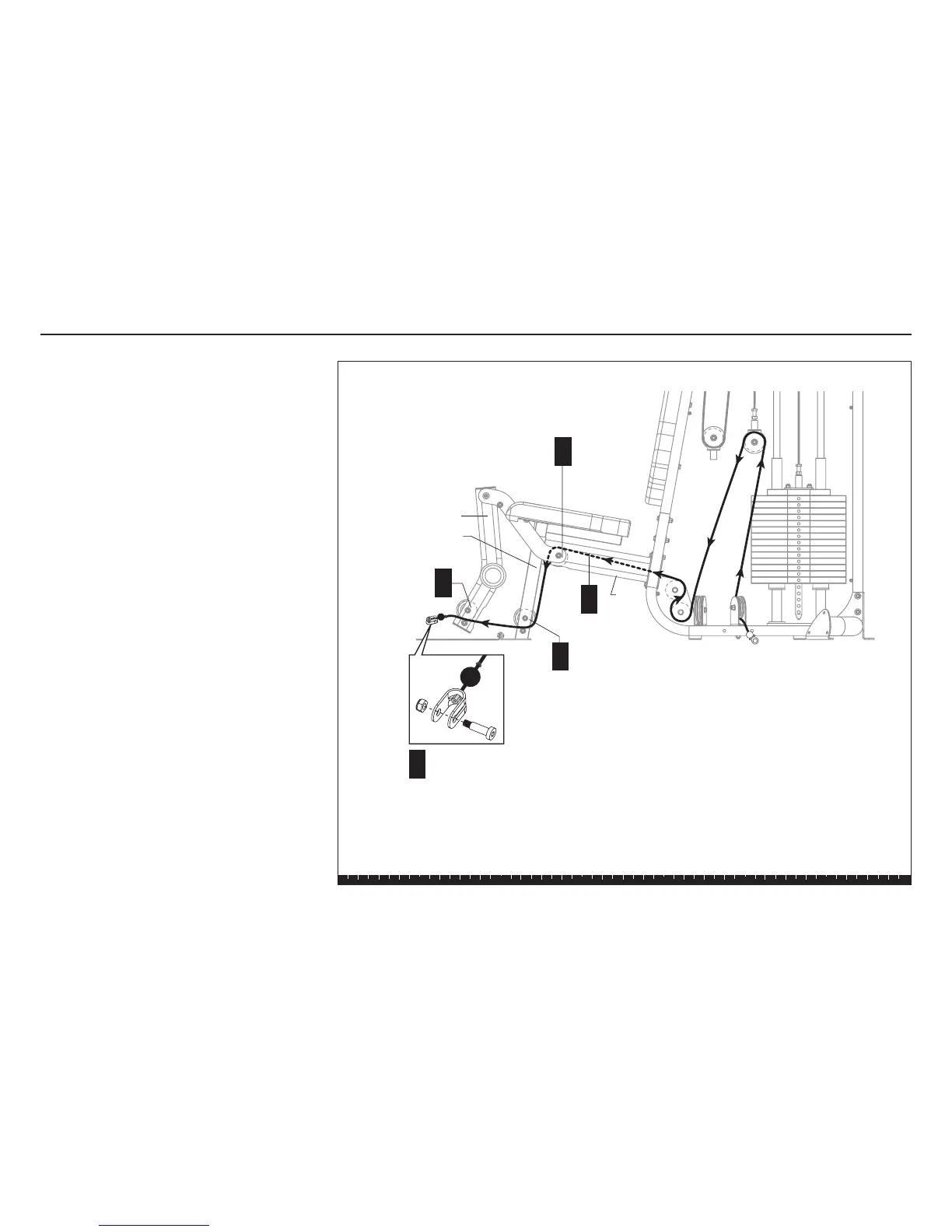

Step 8. Install Leg Extension Cable, continued
J
H
1 - 3" bolt
2 - ³⁄₄" shoulder spacers
1 - locknut
Seat
Frame
Leg Extension Arm
Seat Stem
L
K
G

Precor move beyond S3.15 Specifications

Weight and Dimensions

length	72 inches (182 cm)
height	83 inches (211 cm)
width	51 inches (130 cm)
shipping weight	221 lb (100 kg)
