S3.15 Assembly and Maintenance Guide
page 23
1 2 3 4 5 6

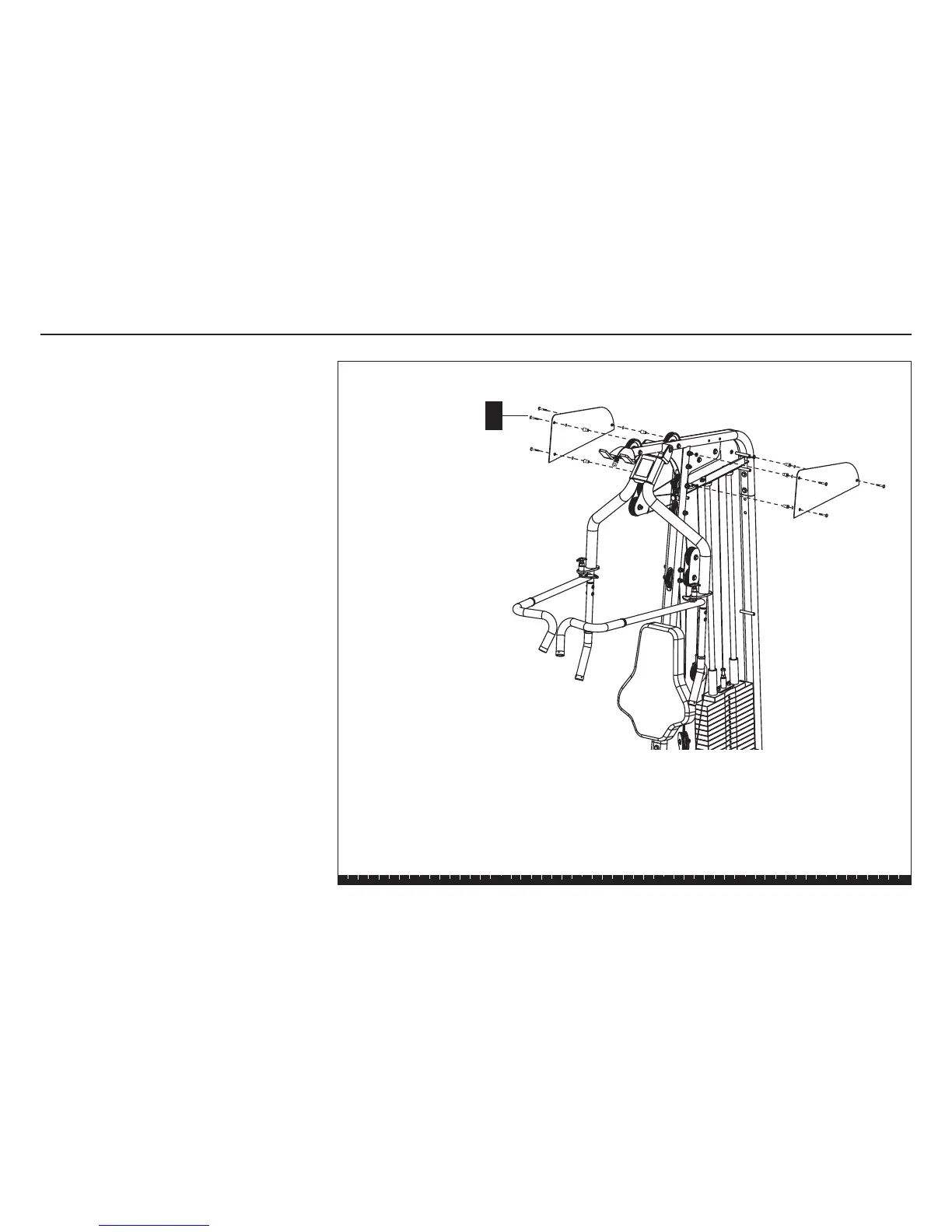

10. Attach Upper Shrouds
A. Attach the Upper Shrouds to the Top Beam using
six 1¾-inch zinc buttonhead bolts
six black plastic washers
six tapered spacers
Wrench tighten.
A
6 - 1¾" zinc buttonhead bolts
6 - black plastic washers
6 - tapered spacers
Step 10. Attach Upper Shrouds
