20 Installing and Operating the Personal Viewing System (PVS) for Display C
EFX: Rewiring the Equipment
A PVS requires new cables to support its functionality.
Note: Use the cable retaining features when available to keep
the cords from interfering with the machinery.
Perform the assembly steps in the order presented. As you
remove the screws, set them aside in a safe place. You will
need them again later to complete the assembly.
To expose the wiring and connections inside the display
console:
1. Use a Phillips-head screwdriver to remove the eight
screws that secure the front and back neck covers. Set the
fasteners and covers aside.

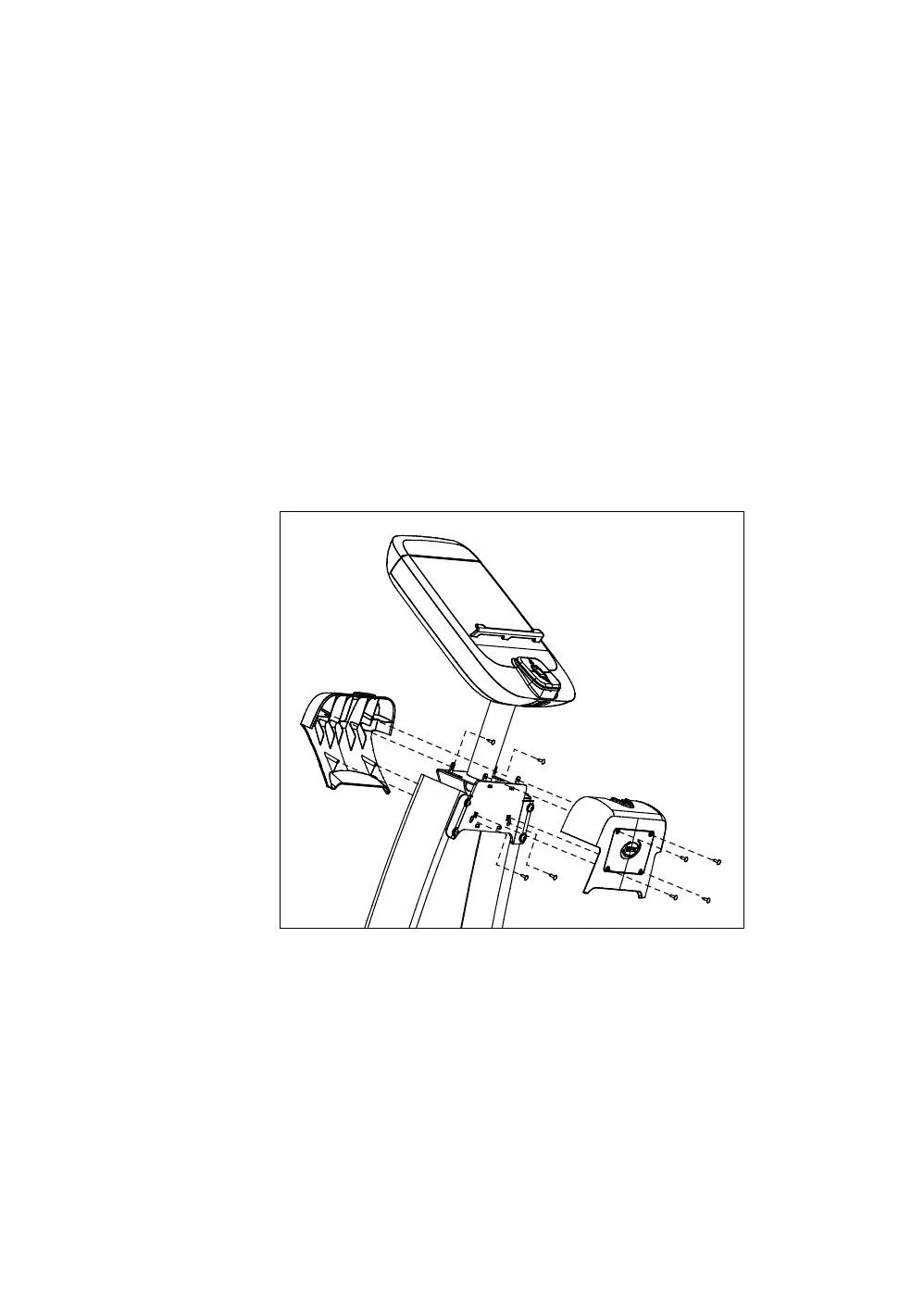

Figure 4: EFX cover removal
