Beginning the Assembly 33
Treadmill: Rewiring the Equipment
CAUTION: Turn OFF the treadmill and unplug it. The ON/OFF
(I/O) switch is located on the front of the treadmill beneath the
hood overhang.
Important: Unplug any RJ45 connections from the back of the
display console cover before removing the cover.
Perform the assembly steps in the order presented. As you
remove the screws, set them aside in a safe place. You will
need them again later to complete the assembly
To expose the wiring and connections inside the display
console and install the PVS:
1. Use a Phillips-head screwdriver to remove the nine
screws that secure the display console back cover. Set the
fasteners aside.

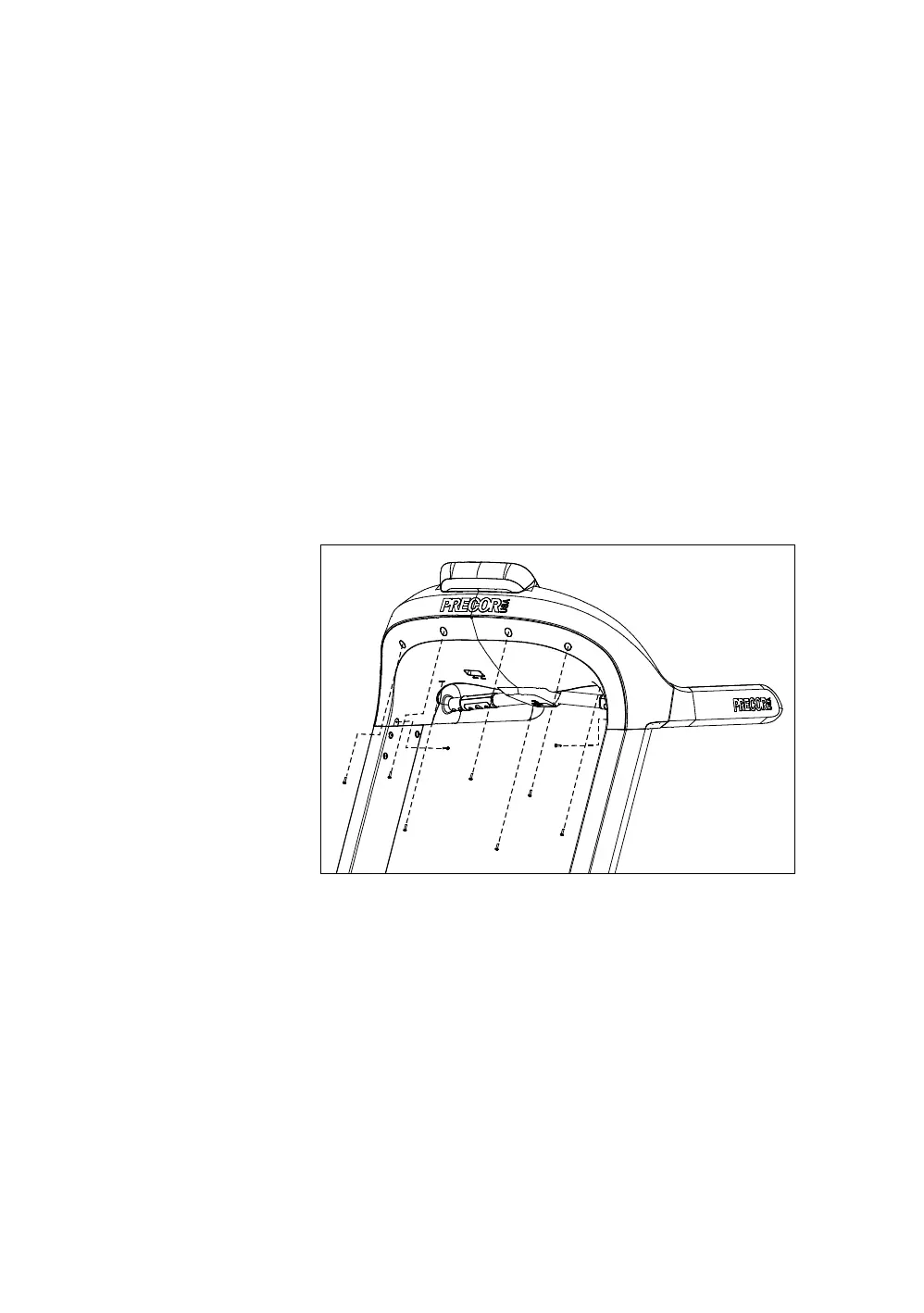

Figure 29: Console back cover removal and replacement
To Next Page
