3.3 Wired Ethernet Control Setup

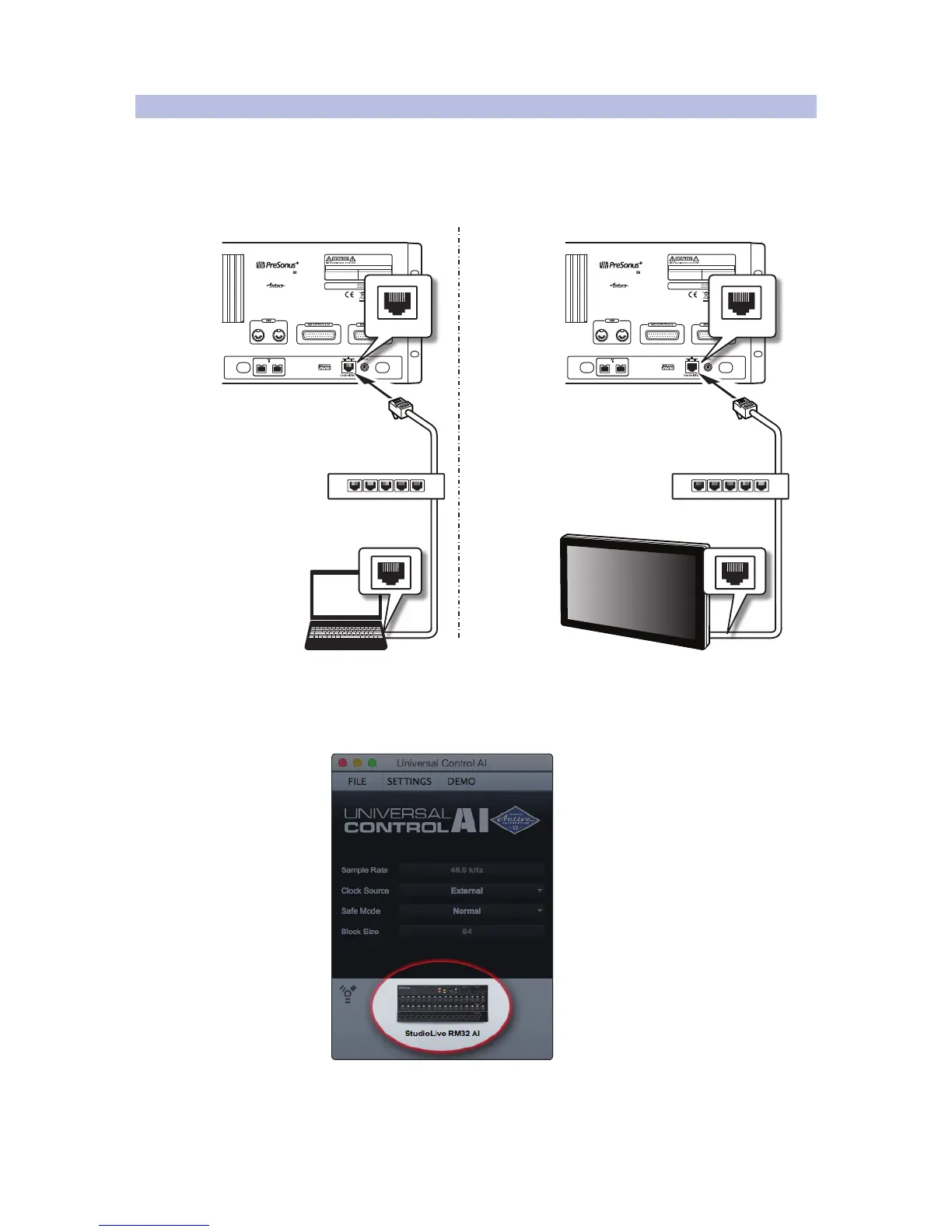

A wired Ethernet setup is the simplest:
1. Connect standard CAT5e or CAT6 Ethernet cables from your
computer’s Ethernet port to an Ethernet router, and from the router
to the Control port on the RM-series mixer’s rear panel.
2. Launch UC Surface software on a computer (Mac or
Windows) that is connected to the router.
3. The Universal Control launch window will appear and
should recognize the presence of your RM mixer.
