PRESONUS RM32AI - 4.4 Connecting Mix Outputs

39
4 Connecting Your RM-series Mixer to Your Audio System
4.4 Connecting Mix Outputs
StudioLive™ RM-Series Mixers
Owner’s Manual
4.4 Connecting Mix Outputs

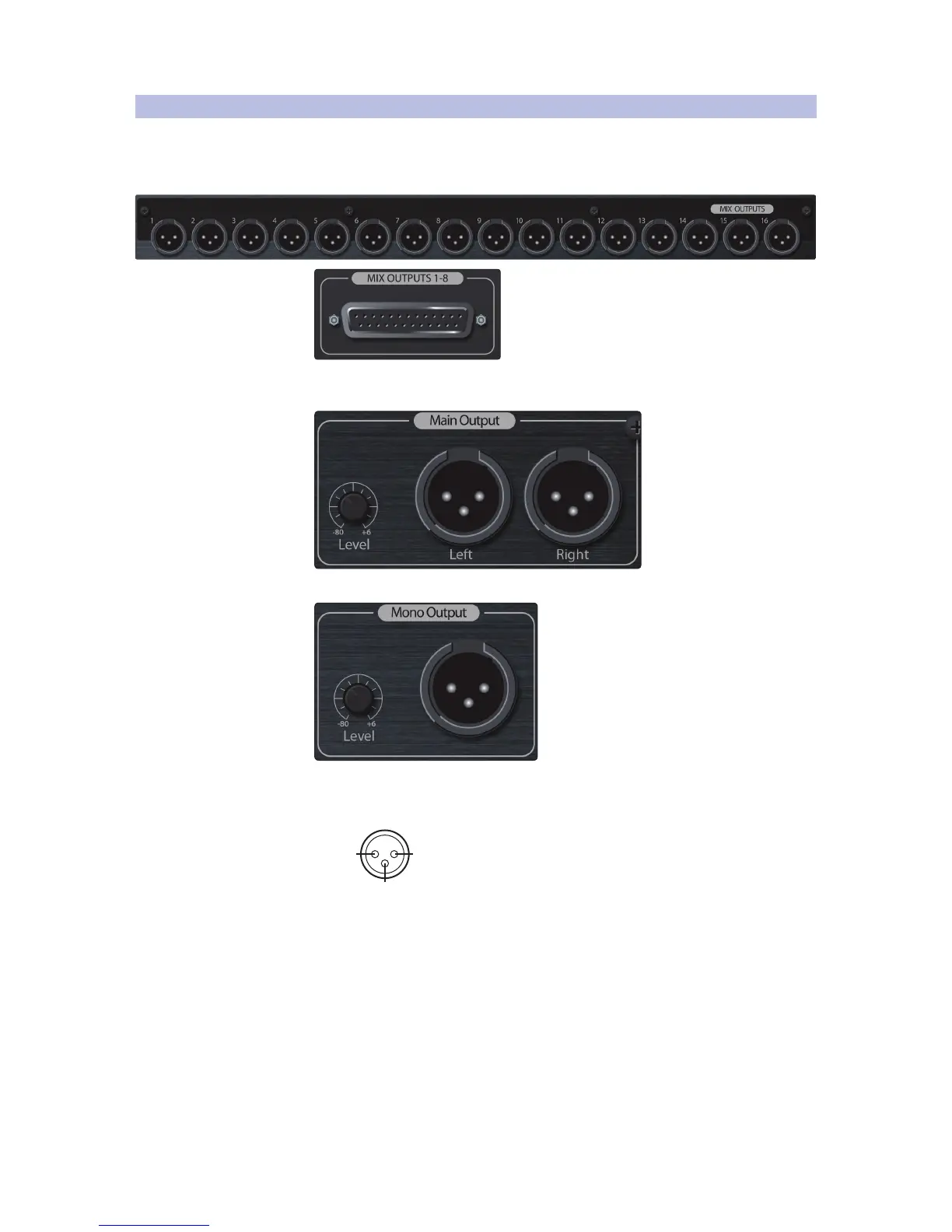

Mixes appear on the following connectors:
• Aux mixes are on 16/8 front-panel male XLR jacks
and rear-panel DB25 connectors.
• Main mix on a front-panel stereo pair of male XLR jacks, with dedicated
level control, and in S/PDIF digital format on a rear-panel RCA jack.
• Mono/Center mix on a front-panel male XLR jack with a dedicated level control.
The XLR jacks are electrically balanced and rated +24 dBu
maximum output level. They are wired as follows:
21
3
Ground
XLR
[-]
[+]
Pin 1 = GND Pin 2 = Signal+ Pin 3 = Signal–
There is a lot you can feed from all of these mix outputs, such as:
• Main house loudspeakers
• Stage wedge monitors
• In-ear monitors
• Sidefill monitors
• Delay or fill stacks for the house
• Broadcast chain
