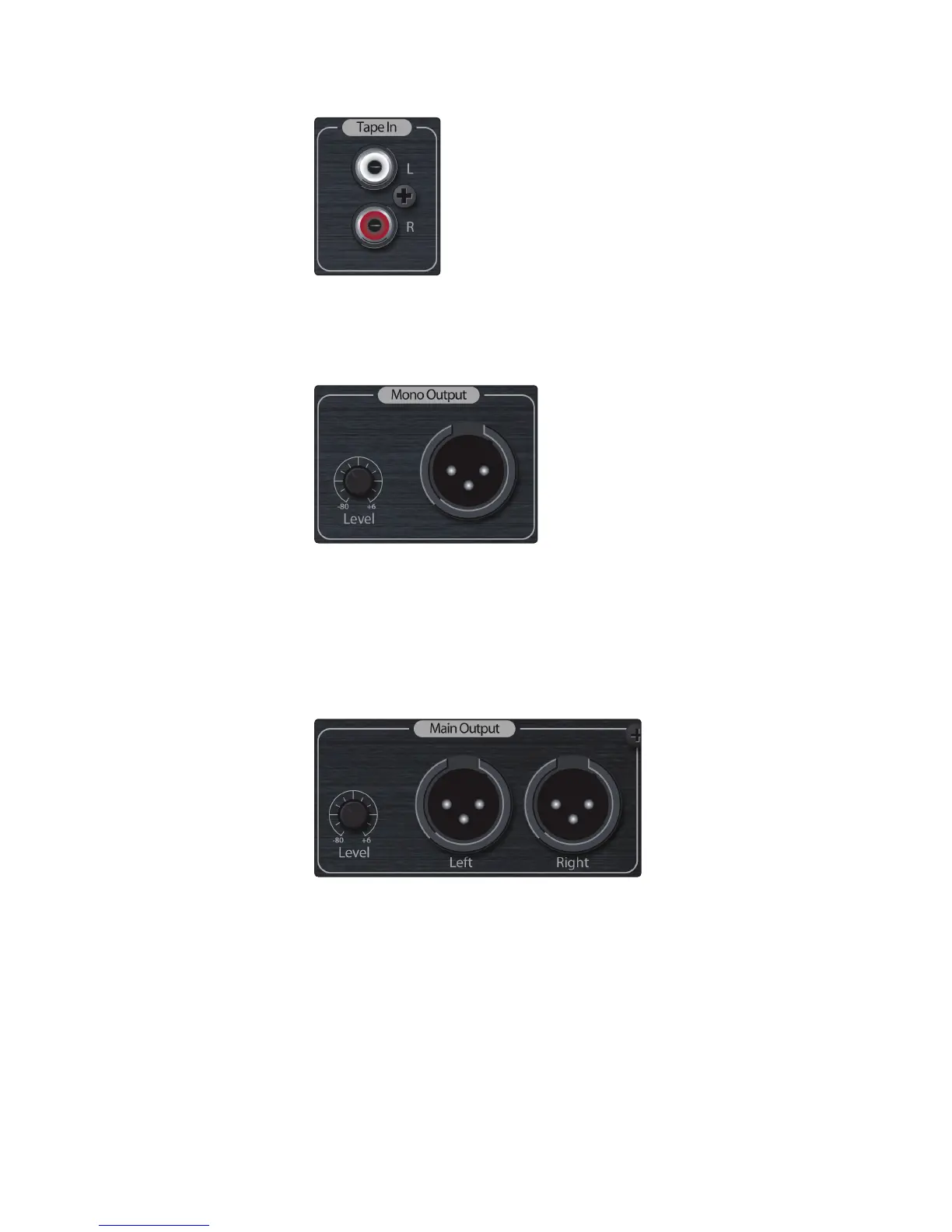

Tape In jacks
A stereo pair of unbalanced inputs on RCA jacks, useful for returning
all varieties of consumer music players and devices.
For more information, see 4.3 Connecting a Stereo Playback Device.
Mono/Center Out section
The Mono/Center output carries the Mono or Center mix and is convenient for
feeding mono sound systems, such as a center channel send for true LCR mixing or
a subwoofer send. Signals are assigned to the Mono mix in the UC Surface mixer.
Mono Output jack: A balanced XLR output carrying the Mono/Center mix.
Mono Output level: An independent level control for the Mono output.
For more information, see 4.4 Connecting Mix Outputs.
Main Output section
Main Output L/R jacks: Balanced XLR outputs carrying the
left and right channel signals of the Main mix.
Main Output level: An independent level control for the Main mix outputs.
For more information, see 4.4 Connecting Mix Outputs.
