4.1 The Fat Channel
4.1.5 Fat Channel: Output Assignments

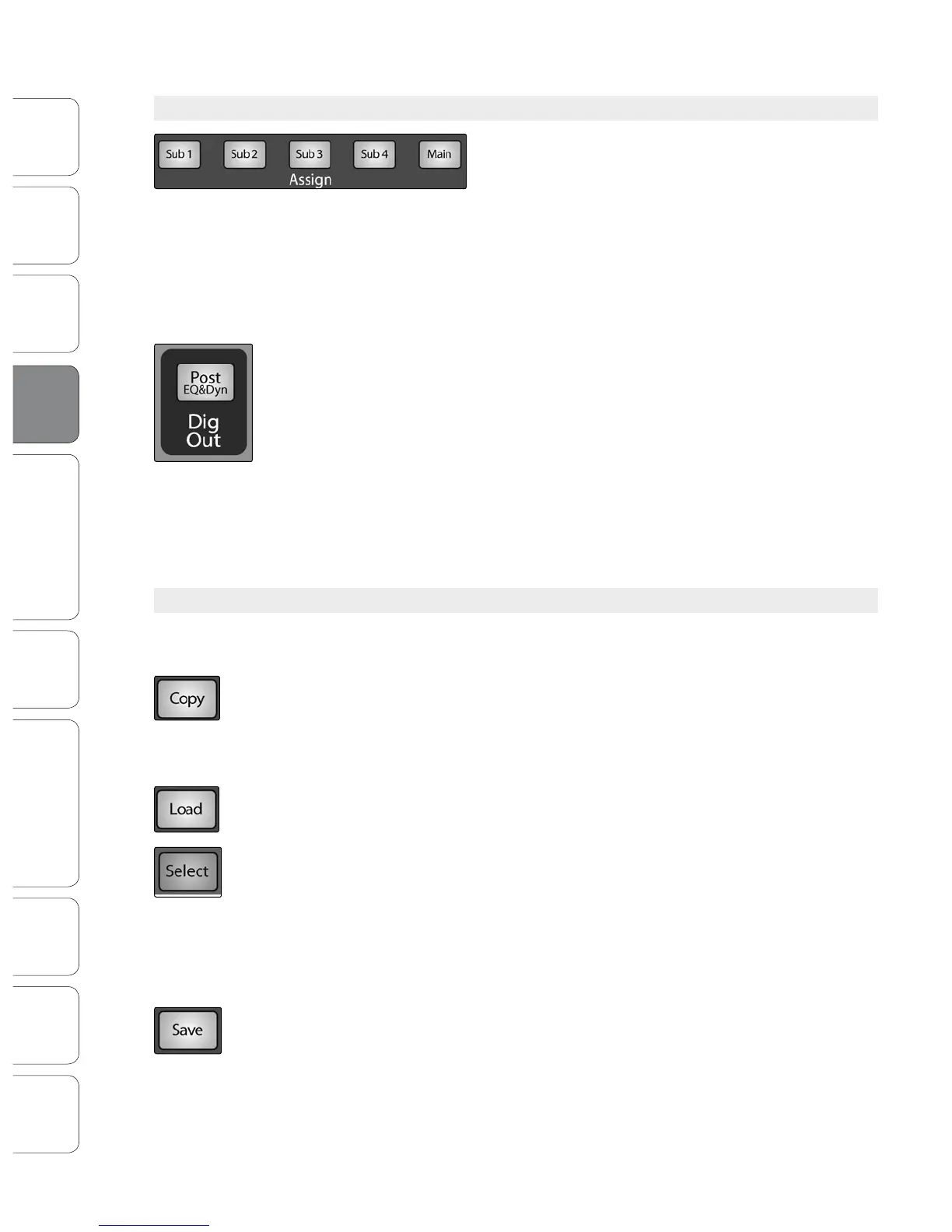

Output assignments are set within the Fat Channel. It
should be noted that the StudioLive will prevent you
from creating a feedback loop.
Subgroups can only be assigned to the main outs, and the ten aux
sends cannot be assigned to a subgroup or to the main outputs.
Any channel on the input bus can be assigned to any or all of the
subgroup outputs, as well as to the main outputs. This includes the 24
main inputs and the 2 auxiliary inputs. The internal eects returns can also
be assigned to any or all of the subgroups and to the main outputs.
The Fat Channel also gives you the option of sending just the unprocessed audio to
your computer or including the Fat Channel settings in the recorded signal. When the
Dig Out button is enabled, the signal being sent to the FireWire bus is post-EQ and
post-dynamics processing; the button will illuminate to indicate this signal ow.
When the button is disabled, the signal being sent to the FireWire bus is pre-Fat
Channel. The Dig Out button is only available when one of the 24 channel inputs is
selected. The subgroups, main output, aux bus, aux inputs, and internal eects
returns automatically send their signals post-Fat Channel dynamics and EQ. All
FireWire sends are pre-fader except for the subgroups and the main outputs. For
more information on using your StudioLive as an audio interface, please consult
Section 6.
4.1.6 Copying, Loading, and Storing Fat Channel Settings
Every setting in the Fat Channel can be copied from one channel to another
and can be saved and stored as a user preset to be recalled later.
Press the Copy button to copy the settings on the selected channel or bus. Every
Select button on the StudioLive except the button for the currently selected channel
will begin to ash. The Select button for the selected channel will not illuminate. You
can copy a Fat Channel setting from any channel or bus to any combination of
channels and buses.
The Load button will also start to ash.
To paste the current channel’s Fat Channel setting to another channel or bus, simply
press that channel’s Select button. It will stop ashing and illuminate. After you have
selected every channel to which you want the settings pasted, press the Load button.
The StudioLive will return to its normal state, indicating that the Fat Channel settings
have been successfully pasted.
The Load button can also be used to recall saved settings and
presets. For complete recall instructions, see Section 5.2.
You can save your Fat Channel settings for future use. To store the currently selected
channel’s Fat Channel settings, press the Save button. For complete channel-preset
storage instructions, see Section 5.2.
