Care and Maintenance
151
1. Stop engine, open engine compartment
doors and place rear start switch to OFF
position;
2. Unscrew and remove the dipstick located on
top of the fluid tank and wipe with a clean
rag;
3. Replace dipstick in tank, then remove to
check fluid level;
4. Add hydraulic fluid until it reaches the FULL
mark on the dipstick (use Dexron II, Dexron
IIE, Dexron III or Mercon fluid type);
5. Replace and tighten dipstick;
6. Place engine rear start switch to NORMAL
position. Close engine compartment doors.

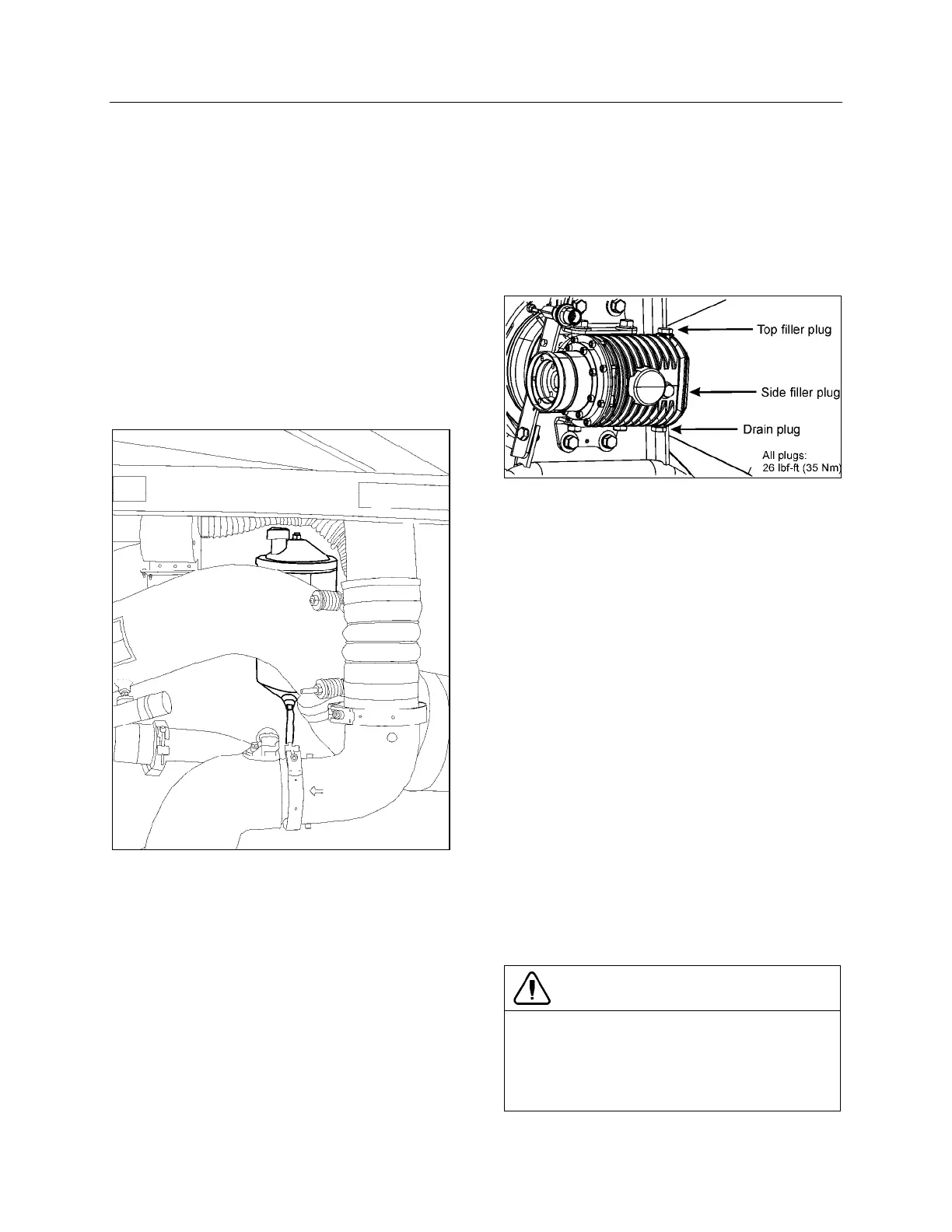

ENGINE COMPARTMENT 14059
COOLING FAN RIGHT ANGLE GEARBOX OIL
LEVEL
Check cooling fan right angle gearbox oil level
as follows:
1. Stop engine, open engine compartment
doors and place engine rear start switch to
OFF position;
2. Remove side oil filler plug;
3. Add oil through the top or side oil filling point
if the oil level has fallen below the side oil
filling point;
4. The oil level is correct once the top of the oil
has reached the bottom of the side oil filling
point or once oil has already started to
escape from the side oil filling point;
5. Replace the seal and screw the side and top
filler plugs back in;
6. Place engine rear start switch to NORMAL
position. Close engine compartment door.
RIGHT ANGLE GEARBOX OIL LEVEL CHECK 05118
DRIVE AXLE WHEEL BEARING OIL LEVEL
Drive axle wheel bearings are lubricated by the
differential oil. Maintain differential oil at correct
level to ensure adequate lubrication of drive axle
wheel bearings at all times.
FRONT AND TAG AXLE WHEEL HUBS
The unitized hub bearings used on the NDS
range of axles, are non-serviceable items.
Bearings are pre-adjusted, lubricated and have
seals fitted as part of the manufacturing process.
The bearings are greased for life and there is no
need or facility for re-lubrication.
COOLANT FLUID LEVEL
Coolant level is correct when coolant is visible
through the surge tank sight glass when cold.
Fill the tank as necessary with the same 50/50
water-antifreeze mixture normally used. Do not
mix two different types of coolant. Refer to the
Maintenance Manual for proper coolant type
specifications or see the label affixed near the
coolant surge tank on the vehicle.
CAUTION
On Volvo D13 engine, use only Extended Life
Coolant (ELC). Do not add supplemental
coolant additives (SCA) to extended life
coolant. Do not use a coolant filter containing
Supplemental Coolant Additives (SCA).
