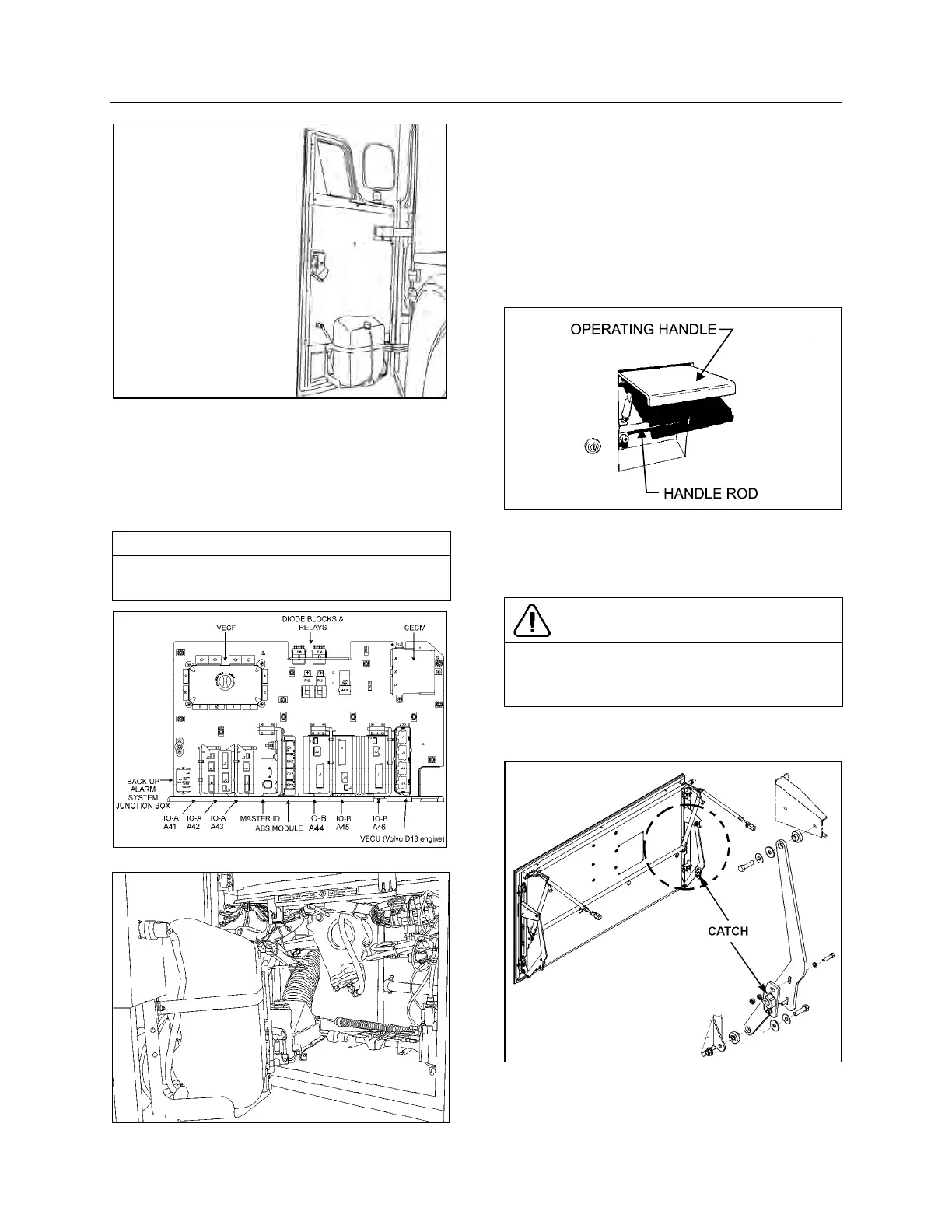

Coach Exterior
12
FRONT SERVICE COMPARTMENT DOOR 18610
This compartment door can be locked/unlocked
using the exterior compartment key.
The light in the front electrical and service
compartment turns ON automatically when the
door is opened.
NOTE
Jack and tools are located inside the front
electrical and service compartment.
FRONT ELECTRICAL COMPARTMENT 06673
FRONT SERVICE COMPARTMENT 18611
BAGGAGE COMPARTMENTS
The baggage compartments of the X3-45 Coach
provide 406 ft
3
(11.5 m
3
) of storage capacity.
The compartments can be locked or unlocked
by using the exterior compartment key. Pull up
operating handle to release the latch, and then
pull the door open. Pressurized cylinders assist
the opening and closing of the baggage
compartment doors and hold the doors open.
BAGGAGE DOOR LOCK AND LEVER 18043
To close, pull the door down by the handle rod.
Complete the closing of the door by returning
the operating handle to its initial position.
CAUTION
Do not slam shut the baggage compartment
doors. Damage to door weather-stripping or
locking mechanism could result.
Lights in the baggage compartments turn ON
automatically when the door is opened.
BAGGAGE DOOR CATCH 18612
