Coach Exterior
11

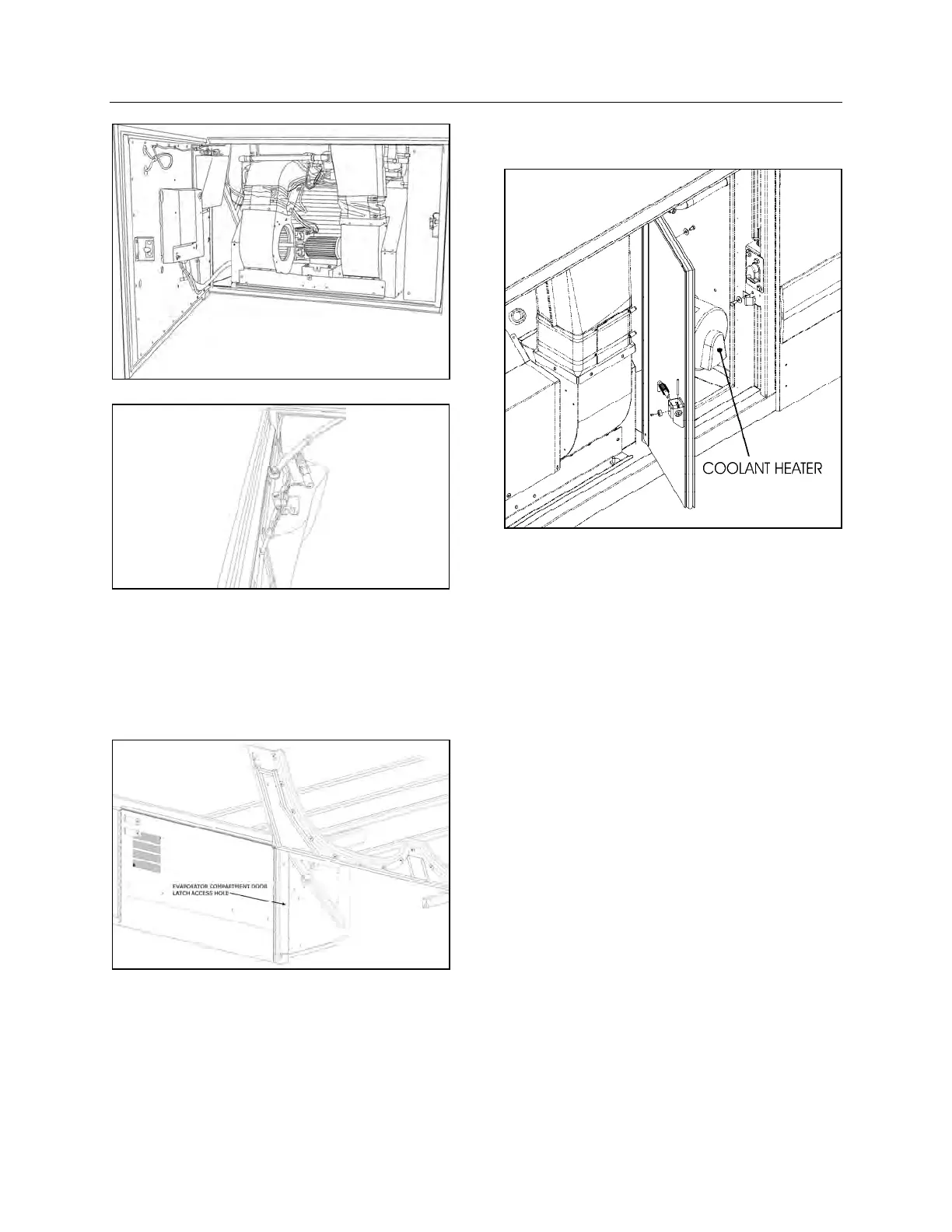

EVAPORATOR COMPARTMENT
22274
RECIRCULATION DAMPER 22302
In case of damage or malfunction of the
evaporator compartment door release latch, the
door can still be opened using the access hole
located forward of the compartment.
Insert a small rod through the access hole to
release the latch.
EVAPORATOR COMPARTMENT DOOR RELEASE LATCH
ACCESS HOLE
COOLANT HEATER COMPARTMENT
The vehicle may be equipped with the optional
preheater located aft of the evaporator
compartment, inside the engine coolant heater
compartment and accessible through the
evaporator compartment door.
COOLANT HEATER COMPARTMENT
The water recirculating pump is also located in
the engine coolant heater compartment.
FRONT ELECTRICAL AND SERVICE
COMPARTMENT
To open the front electrical and service
compartment door, pull the rod inside the
vehicle, next to the driver’s power window or use
the key to open from outside the coach. The
front electrical and service compartment
provides access to the following:
• Front terminal block;
• VECU with Volvo D13 engine;
• Vehicle Electrical Center Front (VECF),
CECM and Multiplex Modules;
• Relays and fuses;
• ABS Electronic Control Unit (ECU);
• Emergency door opening unlatch valve;
• Windshield washer reservoir & headlights
washer reservoir (optional);
• Accessory system fill valve;
• Accessory air tank drain valve;
• Jack and tools.
