Coach Exterior
10

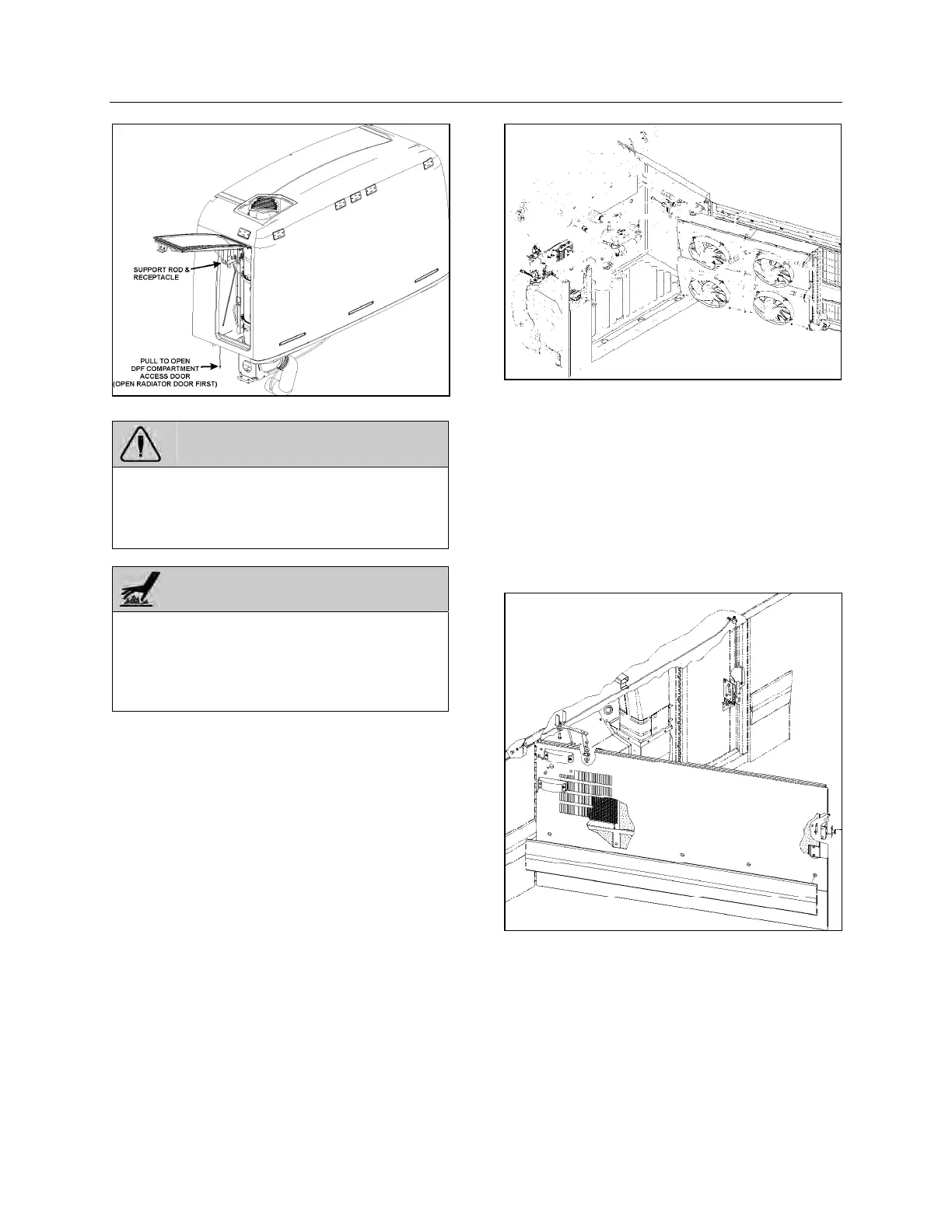

ACCESS TO THE CATALYTIC CONVERTER 04023
WARNING
After inserting the support rod into the
receptacle, make sure the rod supports the
door securely from falling down on to your
head or body.
WARNING
External and internal temperatures remain hot
long after engine has been shutdown. Allow
the Exhaust Aftertreatment System to cool
before handling. Wear protective clothing and
glove while servicing.
CONDENSER COMPARTMENT (A/C)
Pull the release latch located inside the adjacent
baggage compartment to open the condenser
door.
The condenser compartment provides access to
the following:
• Diesel Exhaust Fluid (DEF) Tank
• Condenser;
• Condenser fans and motors;
• Filter dryer and moisture indicator;
• Receiver tank;
CONDENSER COMPARTMENT (A/C) 22299
EVAPORATOR COMPARTMENT
The HVAC (Heating, Ventilating and Air-
Conditioning) evaporator blower and coolant
heater are located in this compartment. The
compartment door release latch is located on
the right side of the baggage compartment and
to the left of the HVAC compartment door. Pull
the release latch then swing the HVAC
compartment door open.
EVAPORATOR COMPARTMENT
