Care and Maintenance
155

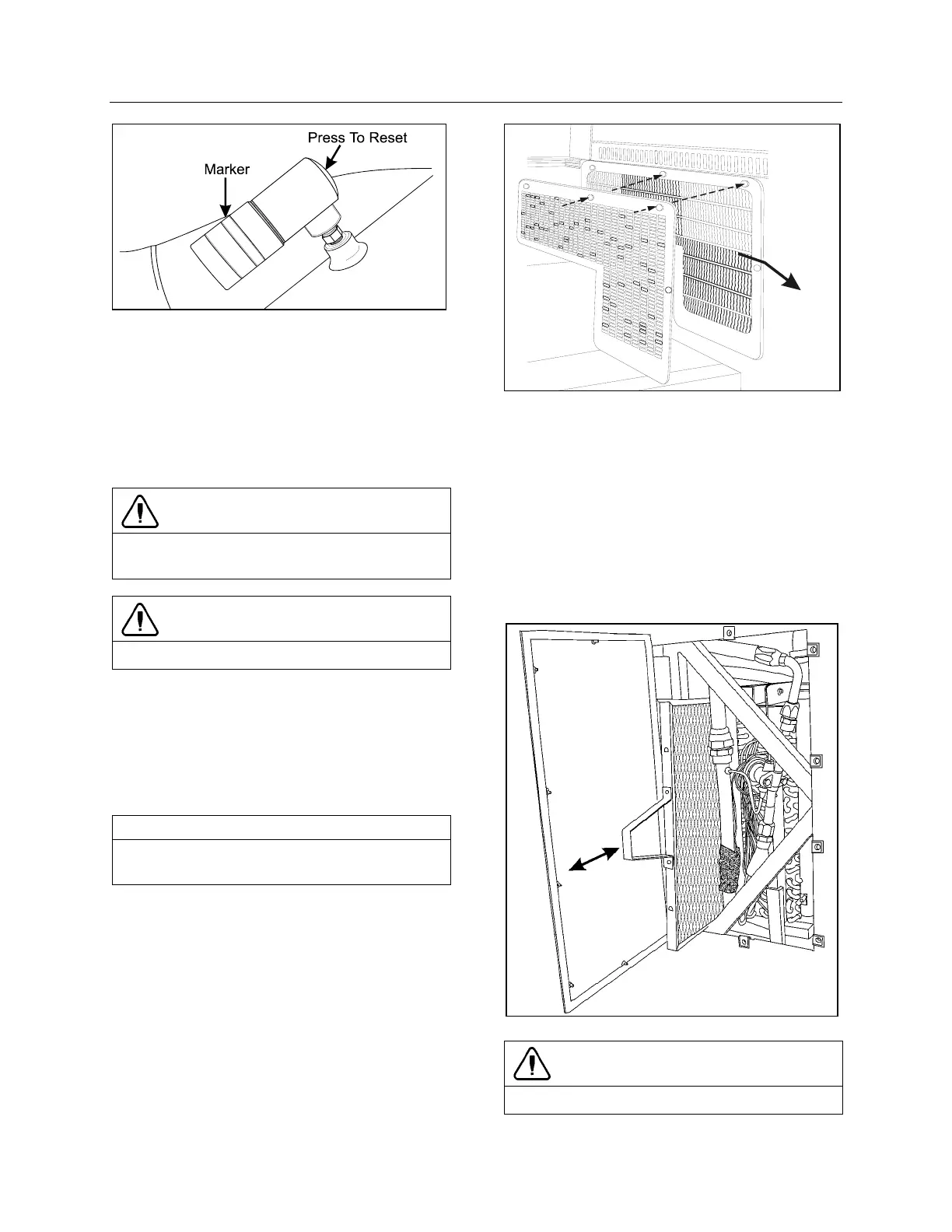

AIR FILTER RESTRICTION INDICATOR 01052
A/C AND HEATING SYSTEM AIR FILTERS
For maximum air conditioning and heating
system efficiency, air filters should be inspected
and cleaned as required in maintenance
schedule to ensure proper ventilation of the
evaporator and heating radiator cores. To clean
filters, back flush with water, then dry with air.
CAUTION
Do not use high pressure water jet to avoid
damaging filter.
CAUTION
Be sure not to reverse filter upon installation.
Driver’s Area Air Filters
The driver HVAC system's air filters are located
behind the R.H. console. To gain access to the
A/C filters, unscrew the grill located at the top
step of the entrance door steps. Remove the
filters for cleaning or replacement.
NOTE
If the windshield is continuously fogged, check
that the driver’s air filter is not clogged.
DRIVER'S AREA AIR FILTER REMOVAL
22193
Passengers Area Air Filter
The central HVAC system's air filter is located in
the evaporator compartment on driver’s side of
the vehicle. To access, open the baggage
compartment forward of the evaporator
compartment. An access door held shut by six
retaining screws is located in the wall separating
the baggage compartment and the evaporator
compartment. Slide out the filter for maintenance
purposes.
PASSENGERS AREA AIR FILTER REMOVAL 22306
CAUTION
Be sure not to install filter in inverted position.
