PICTOGRAMS displayed on the driver information display (DID)
NOTE
In certain situations, the pictogram displayed represents a system or a function of the vehicle. A particular
pictogram may be displayed with different messages. In that situation, it is very important to pay attention
to the message displayed with the pictogram.
Warning pictograms, pop-up message pictograms, verifications and information pictograms

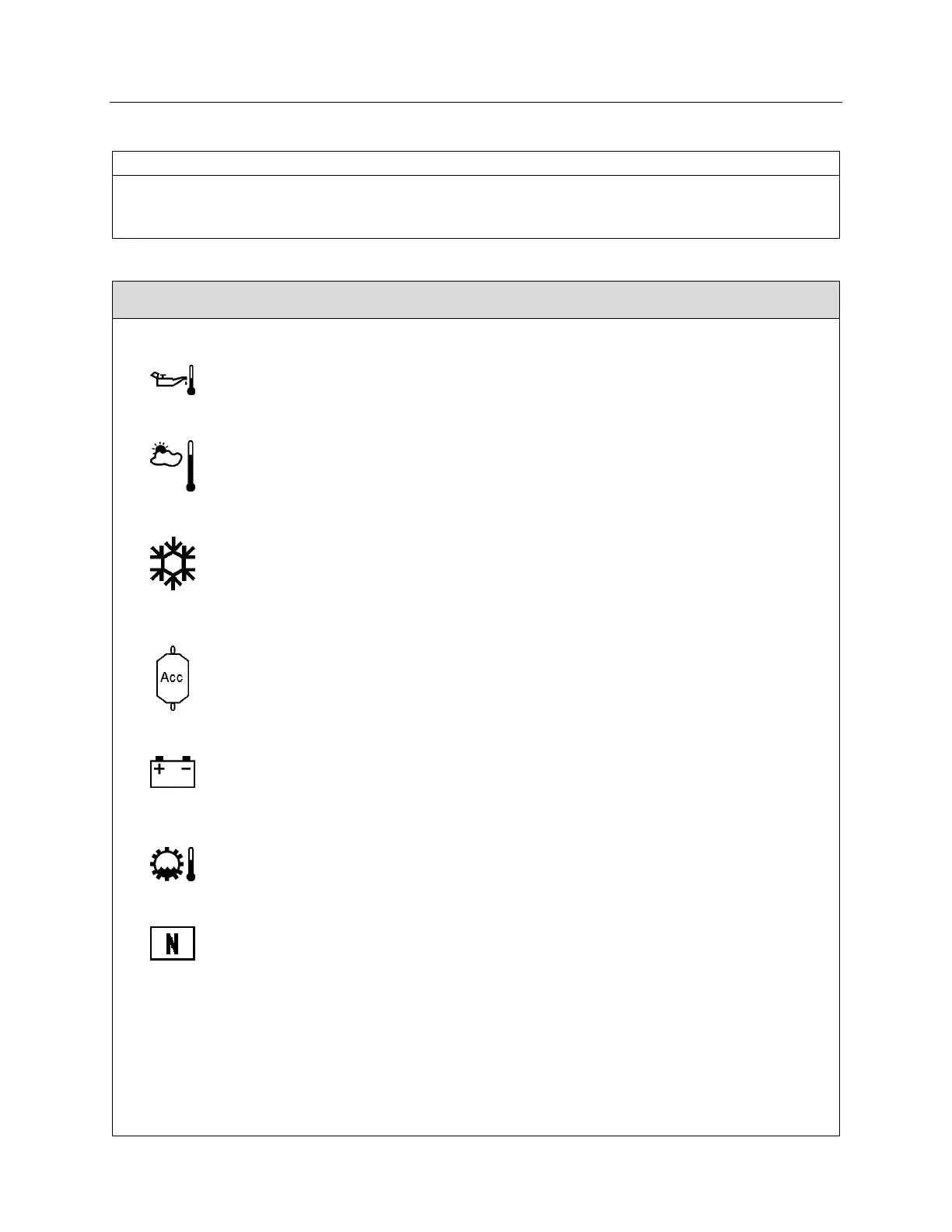

DRIVER INFORMATION DISPLAY “GAUGES” MENU PICTOGRAMS
Pictogram Description
Engine oil temperature
Outside air temperature
A/C
A/c compressor pressure
This pictogram is displayed with A/C compressor suction pressure value (low side)
and discharge pressure value (high side).
Accessories air pressure
Normal pressure should be between 95 and 125 psi.
Voltmeter
This pictogram is displayed with both the 12-volt and 24-volt electrical system current
voltage value. When the engine is running, the 24-volt electrical system voltage value
should be between 26,5 et 28,0 volts.
Transmission oil temperature
Current gear position (I-Shift transmission)
Indicate the current transmission gear position on the Volvo I-Shift transmission.
R= reverse
N = neutral
D= drive
M= manual mode
