Controls and Instruments
72

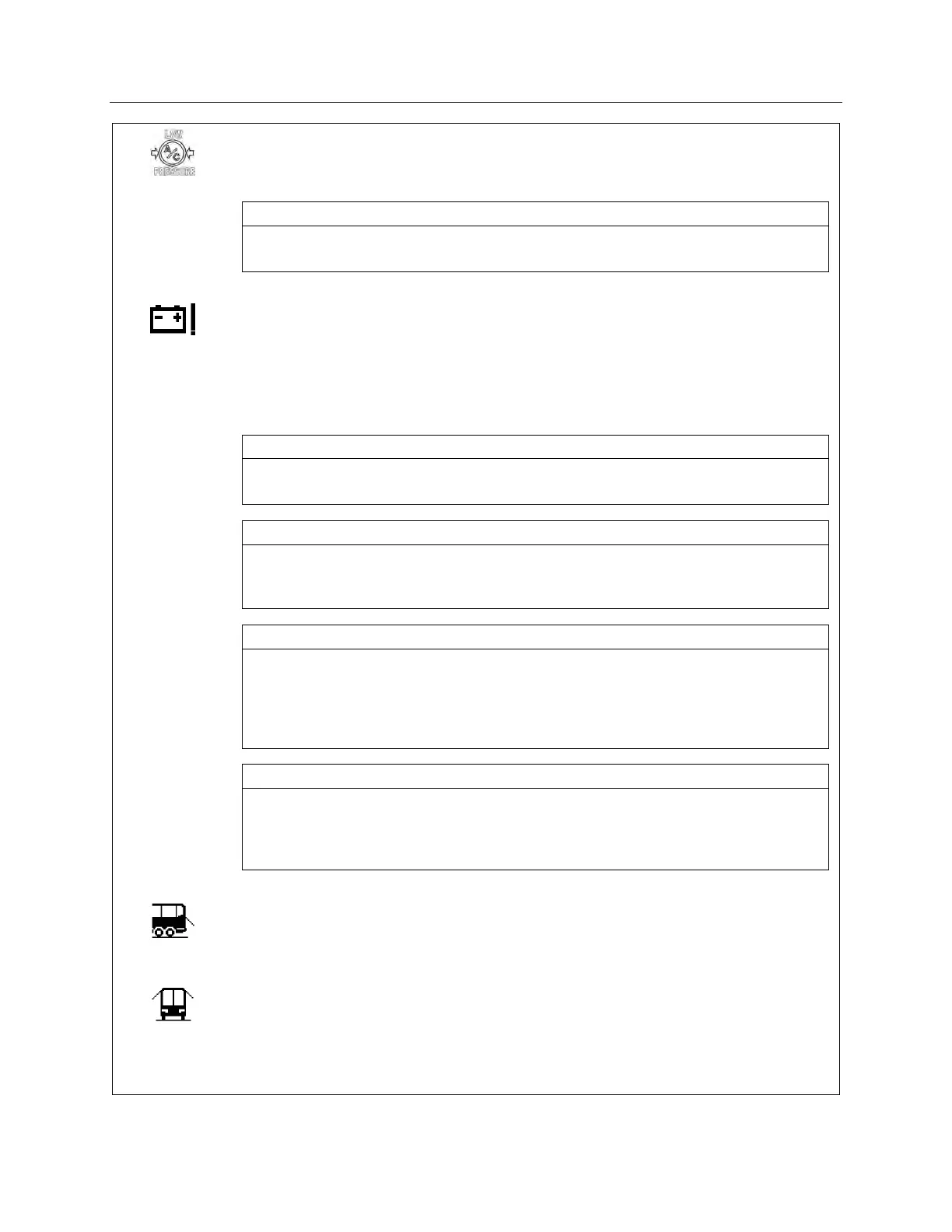

A/C system pressure low
This pictogram indicates that the A/C system pressure is too low. If the A/C pressure
is too low, the compressor clutch disengages and the fan stops.
NOTE
When outside temperature is low, it is possible and normal for that pictogram to
appear.
Battery voltage warning
This pictogram indicates that the battery voltage is too high, too low or the
12-volts/24-volts battery arrangement is not equalized.
The value LOW or HIGH is displayed at the right of the pictogram to indicate if the
voltage is too low or too high.
NOTE
This pictogram will illuminate for a few seconds after the engine is started because
of the voltage drop when the starter is engaged.
NOTE
To identify the battery problem (too high, too low or not equalized voltage), using
the DID menus, perform a system diagnostic by selecting
DIAGNOSTIC, VIEW
ACTIVE FAULTS, ELECTRICAL SYSTEM and see the fault messages.
NOTE
To prevent discharge of the batteries when the engine in not running, some
functions are automatically switched off if the batteries voltage drops below 24.0
volts for more than 30 seconds. Set the ignition key to the OFF position and then
turn the ignition key to the ON position to reactivate the functions for a period of 30
seconds before they switch off again.
NOTE
If the battery equalizer indicator illuminates, make sure that the battery equalizer
circuit breakers are reset before requesting breakdown assistance. Wait 15
minutes after setting breakers to allow batteries to equalize. The breakers are
located on the rear junction panel, on the engine compartment R.H. side.
Engine door ajar
This pictogram indicates that the engine compartment door is ajar.
Emergency window open
This pictogram indicates that an emergency window is open or unlocked.
