Counter-Clockwise 129-255
Slow 129
Fast 255
9 COLOR MIX CONTROL Sets color mix control mode home: 0
Continuous 0-9
Spin Cyan 10-19
Spin Yellow 20-29
Spin Magenta 30-39
Spin ALL mixers 40-49
Reserved 50-255
10 COLOR TEMPERATURE Linear color temperature adjustment home: 50
7500k 0
Open 50
3000k 255
11 DESIGNER COLOR Color Wheel Choice home: 0
Color Choice [Mode: Continuous, Discrete, Strobe] 0-255
Open 0
Open / Color 1 26
Color 1 32
Color 1 / Color 2 42
Color 2 64
Color 2 / Color 3 79
Color 3 96
Color 3 / Color 4 114
Color 4 128
Color 4 / Color 5 145
Color 5 160
Color 5 / Color 6 175
Color 6 192
Color 6 / Color 7 208
Color 7 224
Color 7 / Open 232
Open 255
Wheel Spin [Mode: Spin] 0-255
Clockwise 0-126
Fast 0
Slow 126
Stop 127-128
Counter-Clockwise 129-255
Slow 129
Fast 255
12 DESIGNER CONTROL Sets Designer Wheel control mode home: 0
Continuous 0-9
Discrete 10-19
Spin 20-39
Strobe Random - Slow 40-43
Strobe Random - Medium 44-46
Strobe Random - Fast 47-49
Linear Strobe Rate 50-255

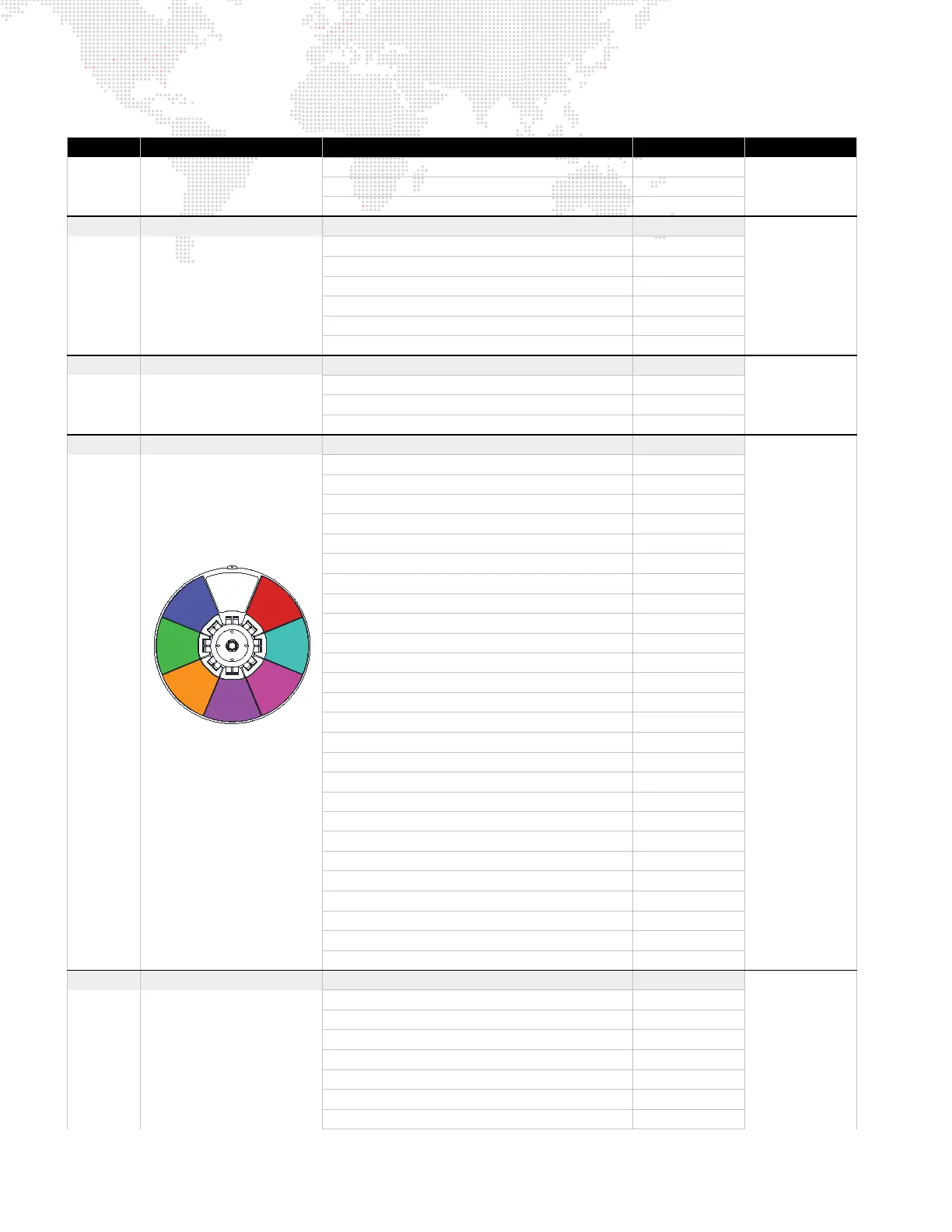

Table 3-1: Best Boy DMX Channel Mapping (Continued)
Channel Function Description 8-Bit 16-Bit
OPEN
1
2
3
4
5
6
7
