BEST BOY
®
HP SPOT LUMINAIRE USER MANUAL 41
Slow 50
Fast 255

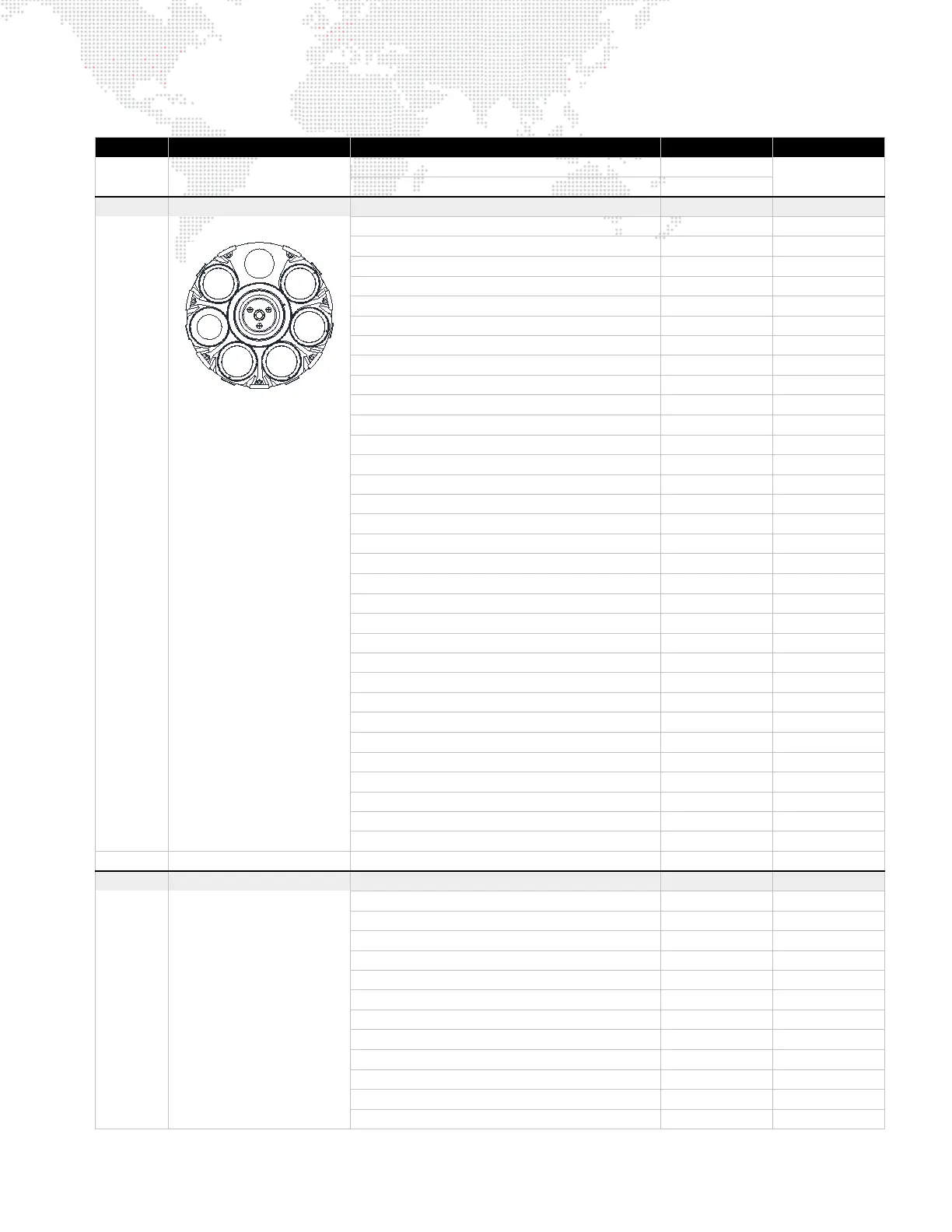

13 GOBO 1 Rotating Gobo 1 Choice / Modifier home: 0 0
Discrete Choice 0-64 0-16383
Open 0-9 0-2339
Gobo 1 10-18 2340-4679
Gobo 2 19-27 4680-7019
Gobo 3 28-35 7020-9359
Gobo 4 36-45 9360-11699
Gobo 5 46-54 11700-14039
Gobo 6 55-63 14040-16383
Continuous Choice 64-191 16384-49150
Open 64 16384
Open / Gobo 1 74 18850
Gobo 1 82 21014
Gobo 1 / Gobo 2 91 23400
Gobo 2 100 25661
Gobo 2 / Gobo 3 109 27980
Gobo 3 118 30284
Gobo 3 / Gobo 4 128 32760
Gobo 4 137 34966
Gobo 4 / Gobo 5 147 37543
Gobo 5 155 39642
Gobo 5 / Gobo 6 163 41833
Gobo 6 173 44288
Gobo 6 / Open 182 46513
Open 191 49150
Wheel Spin 192-255 49152-65535
Clockwise 192-223 49152-57343
Fast 192 49152
Slow 222 57087
Stop 223-224 57088-57599
Counter-Clockwise 225-255 57600-65535
Slow 225 57600
Fast 255 65535
14 Gobo 1 Fine Gobo 1 fine adjustment home: 0
15 GOBO 1 INDEX Rotating Gobo 1 Index Modifier home: 96 24575
Index Position 0-191 0-49151
0° 0 0
180° 96 24575
360° 191 49151
Index Rotation 192-255 49152-65535
Clockwise 192-223 49152-57343
Fast 192 49152
Slow 222 57087
Stop 223-224 57088-57599
Counter-Clockwise 225-255 57600-65535
Slow 225 57600
Fast 255 65535
Table 3-1: Best Boy DMX Channel Mapping (Continued)
Channel Function Description 8-Bit 16-Bit
1
2
34
5
6
OPEN
