68 BEST BOY
®
HP SPOT LUMINAIRE USER MANUAL
CAUTION: Allow lamp to cool before servicing.
Step 5. (Optional) Lamp alignment can be double-checked and/or adjusted by measuring the distance of the lamp
plate from the rear door.
a. First, open the lamp access door (refer to "Replacing the Lamp" on page 65).
b. Then use a telescoping gauge tool to measure the distance at three places. These should all be 0.388"
as shown in Figure 4-4. Adjust the lamp plate as necessary using the three lamp adjustment screws.
c. When finished, close lamp access door.

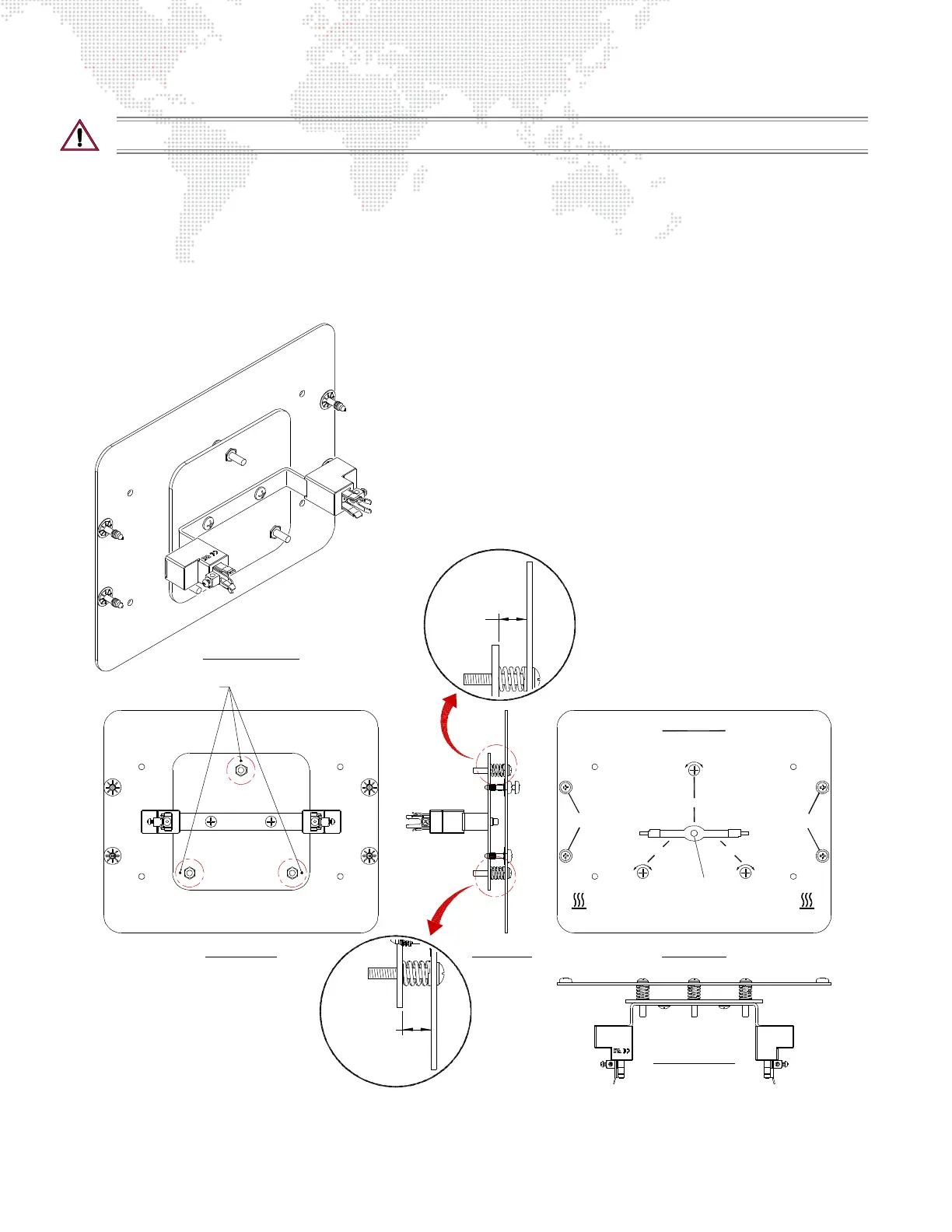

Figure 4-4: Measuring Lamp Alignment Position
FRONT VIEW REAR VIEWSIDE VIEW
BOTTOM VIEW
ISOMETRIC VIEW
0.343" TYP
2 PLACES
0.353"
MEASUREMENT POINTS
DO NOT OPERATE WITHOUT
IN PLACE OR WHEN LENS IS
COMPLETE LAMP ENCLOSURE
DAMAGED.
RISK OF EXPOSURE TO EX CESSIVE
ULTRAVIOLET RADIATION
SOURCE DE RAYONNEMENT UV
FOR 5 MINUTES. DISCONNECT FIXTURE BEFORE RELAMPING OR SERVICING.
NE PAS ENLEVER L’ECRAN DE
PROTECTION
DANGER: INTENSE HEAT. AVOID CONTACT BY PERSONS AND MATERIALS
COUPER L’ALIMENTATION AVANT LE DEPANNAGE
INSTALL LAMP NIPPLE TOWARD REAR OF FIXTURE.
RISK OF FIRE: USE WITH MAX
1500 WATT LAMP. USE ONLY A
HIGH-PRESSURE LAMP OF DOUBLE-ENDED
TYPE HTI 1500 W METAL HALIDE.
DANGER: CHALEUR INTENSE. EVITER TOUT CONTACT ET TENIR TOUTE
MATIERE A L’ECART
WARNING: RISK OF POSSIBLE LAMP EXPLOSION. ALLOW HOUSING TO COOL
ATTENTION: UTILISER UNE
LAMPE 1500 WATTS DOUBLE-CLOS
TYPE HTI METAL HALIDE.
LAMP ADJUST
LAMP ADJUST LAMP ADJUST
LOOSEN FOR
LAMP ACCESS
LOOSEN FOR
LAMP ACCESS
CAUTION
