Connecting to telescopes not equipped with PLUS rings
If your telescope is not equipped with PLUS support rings, just add the optional "PLUS Vixen + Losmandy style dovetail
clamp" that can be screwed directly to the EAGLE and allow you to connect it to any Vixen or Losmandy style dovetail bar

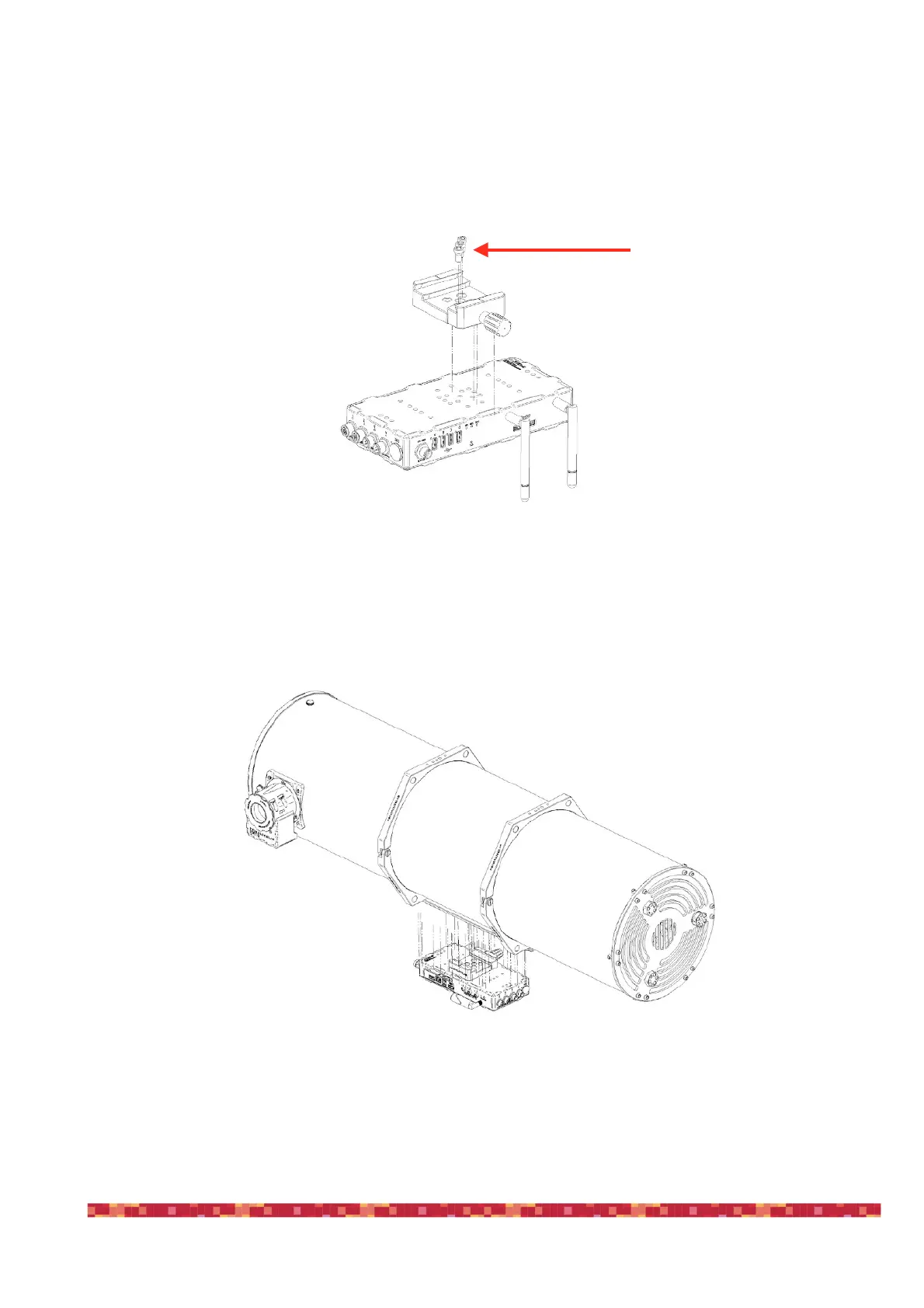

also from different brand. Take the "PLUS Vixen + Losmandy dovetail clamp" and, using 3 M6 screws (f), install it in the
bottom plate of EAGLE, as shown in image 20.
This way you can connect the EAGLE to any telescope equipped with Vixen or Losmandy style dovetail bar, as shown in
image 21.
