DS600 Non-Ferrous Double Sheet Detector
This document is confidential and proprietary. No part of this document may be disclosed in any manner
to a third party without the prior written consent of Prime Controls, Inc.
202177 6 Revision M

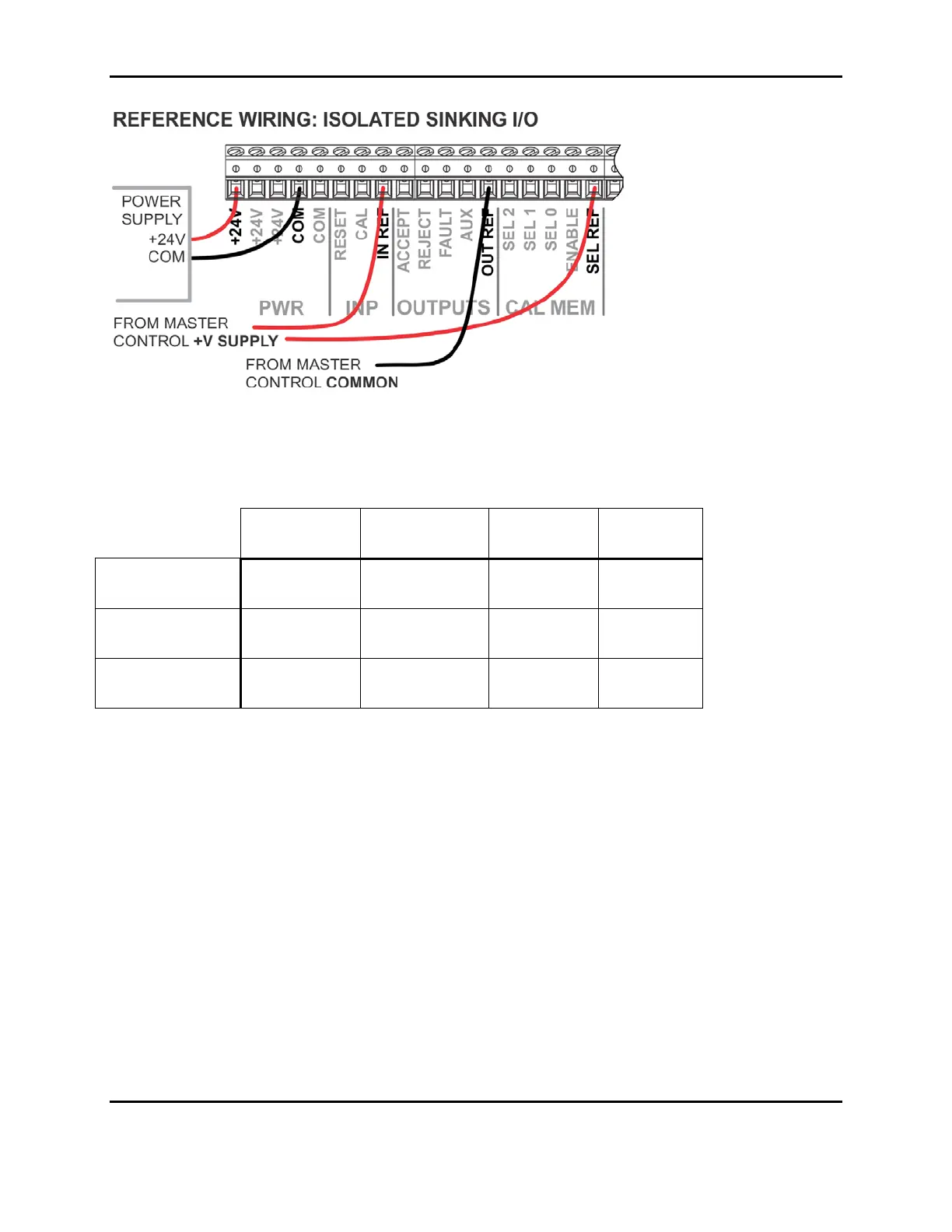

Table 1
Signal Group
Driver Signal Type
Non Isolated
Sourcing
Non Isolated
Sinking
Isolated
Sourcing
Isolated
Sinking
INP (input)
Controller
Common
Controller
+24V
Isolated
Common
Isolated
+24V
CAL MEM
Controller
Common
Controller
+24V
Isolated
Common
Isolated
+24V
OUTPUTS
Controller
+24V
Controller
Common
Isolated
+24V
Isolated
Common
