Prime Controls DS600 - MECHANICAL SPECIFICATIONS; Controller Drawing

DS600 Non-Ferrous Double Sheet Detector
This document is confidential and proprietary. No part of this document may be disclosed in any manner
to a third party without the prior written consent of Prime Controls, Inc.
202177 28 Revision M
8 MECHANICAL SPECIFICATIONS
8.1 Controller Drawing

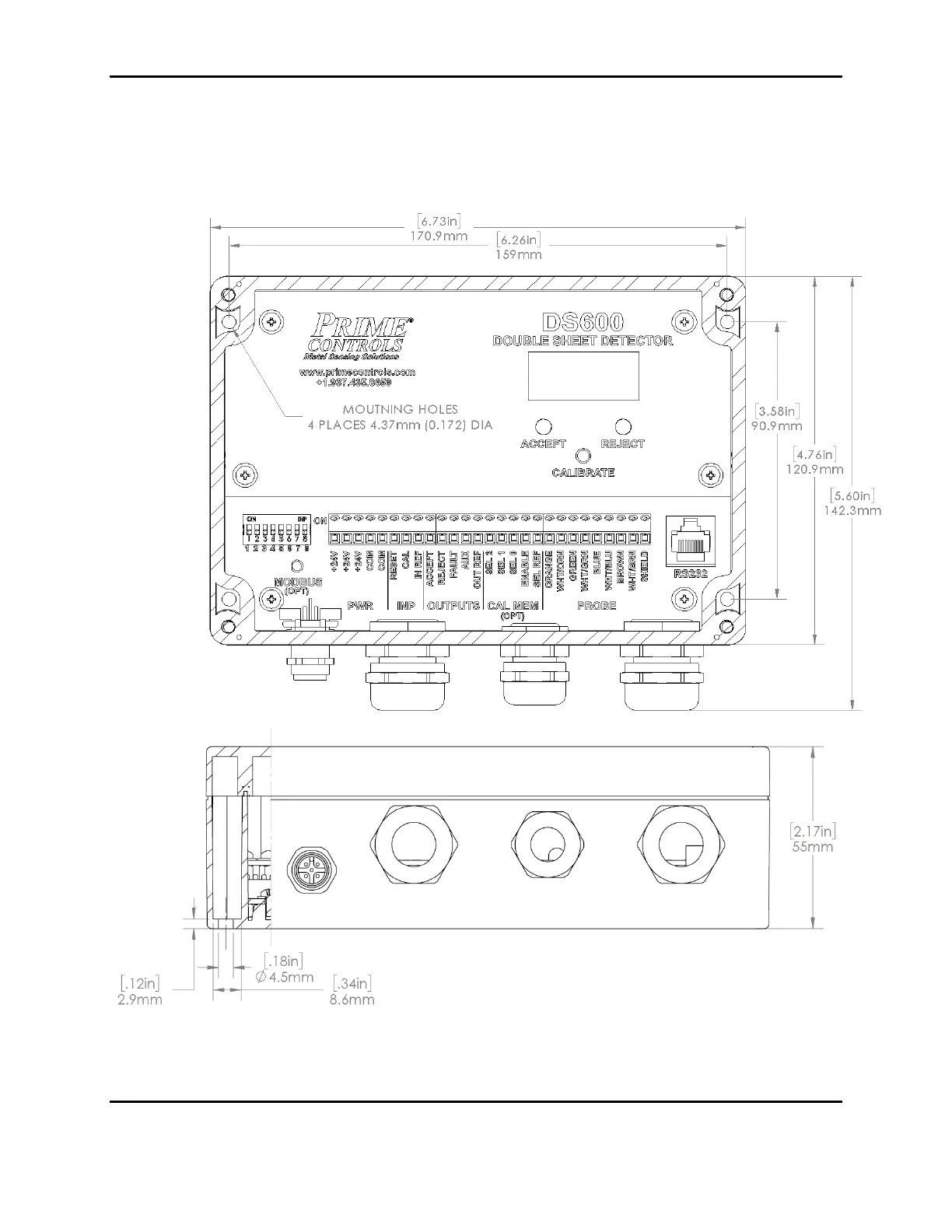

Cross sections showing controller size and mounting hole details.
