18
2B Installing Digi
tal Die
-Cutting
Label Stock

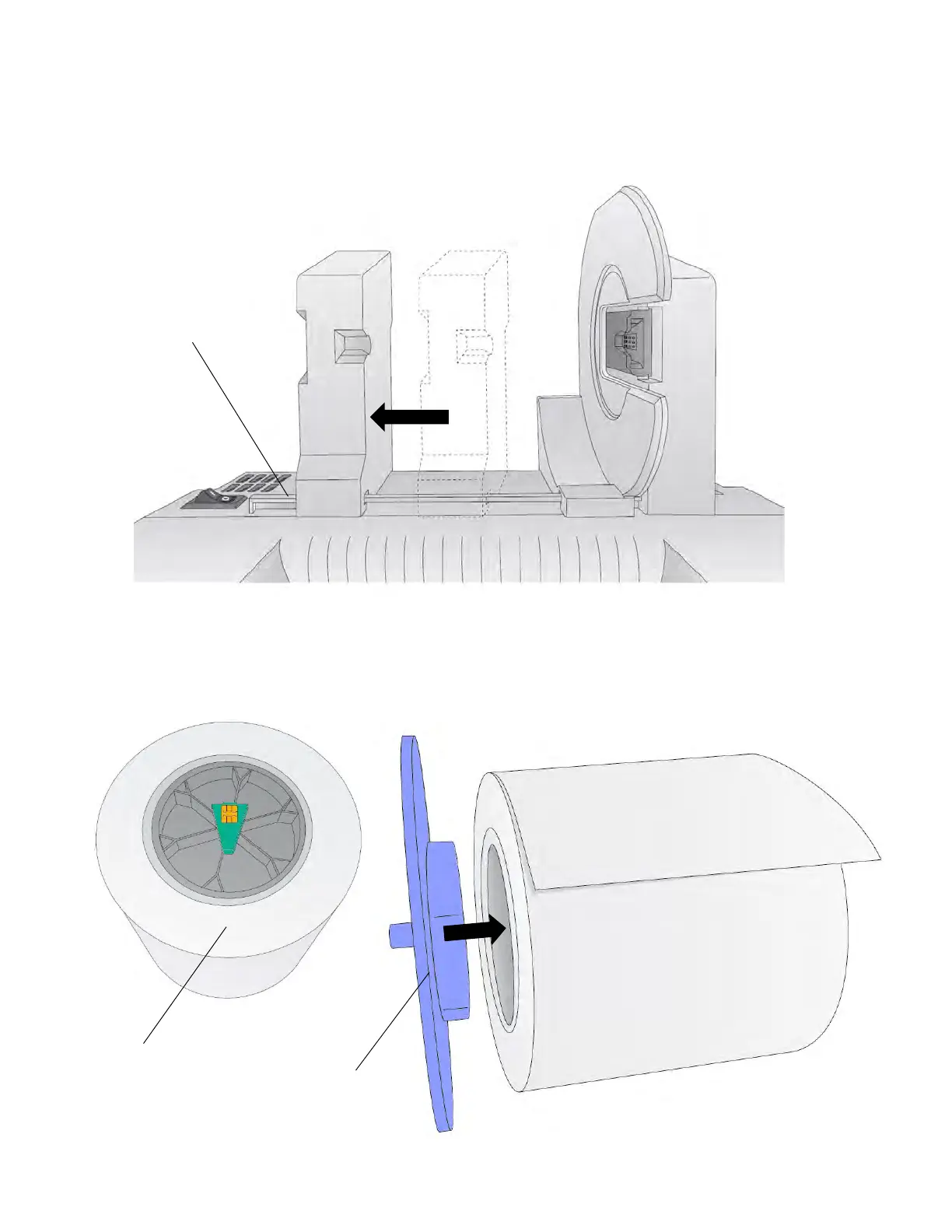

1.
Move the roll holder to the preset position for on demand digital die-
cutting (3
rd
mark
from
the left
–
1.25”)
2.
Install the Blue Hub on the open side of the digital die-cutting media.
Move to third
mark from Left
Digital Die Cutting
Media comes with
black hub with green
chip.
Blue Hub
Note:
The green hub
is not needed f
o
r
digital die-cutting and
can be stored in
the notch on the m
o
vable holder.
17
19
Table of Contents
Table of Contents
4
Section 1: Getting Started
6
Choosing a Good Location
6
Unpacking and Inspection
7
Installing the Roll Holders
8
Identifying the Parts
12
Section 2: Media, Cartridges and Knives
14
Label and Roll Specifications
15
Installing Digital Die-Cutting Label Stock
18
Installing Pre Die-Cut Label Stock
21
Replacing the Digital die Cutting Knife Holder
25
Replacing the Cutting Knife
27
Replacing Ink Cartridges
28
Adjusting the Gap Sensor Position (Pre Die-Cut Labels Only)
30
Section 3 Primera Printhub
32
Adjusting Knife Pressure and Stretch Factor
33
Using the Cost Estimator
35
Set the Gap Sensor Mode (Pre Die-Cut Labels Only)
36
Set the Present/Cut Mode
38
Adjusting Print Alignment
40
Printhub Settings
42
Printhub Printer Settings
44
3G1. Multiple Printer Support
45
Section 4 Printing and Cutting with Ptcreate
46
Overview (Standard Version Vs Pro Version)
46
Ptcreate Software Activation
49
Software Deactivation
50
Tutorial How to Setup a Print and Cut in Ptcreate Standard
51
Choosing a Label Size
51
Import a Flat Image (JPG, BMP, PNG, TIF, GIF)
52
Add a Cut File
54
Print
57
Tutorial: How to Setup a Print and Cut Using Ptcreate Pro - Vector File Cut
58
Choosing a Label Size
58
Import a Flat Image (JPG, BMP, PNG, TIF, GIF)
59
Working with Layers in an Imported Vector File
62
Tutorial: How to Setup a Print and Cut Using Ptcreate Pro - Contour Cut
64
Choosing a Label Size
64
Import an Image
65
Trace Image and Create Cut Line
67
Offset a Cut Path
71
Setup Multiple Identical Cuts (Duplicate and Array)
73
Print Preview
78
Vector File Specifications for Designer
79
Section 5: Printing Only to Pre Die-Cut Labels
80
Using Bartender for Pre Die-Cut Printing
80
Add Text, Barcodes and Graphics to a Bartender Label
87
Printing from Other Programs
88
Creating a Full Bleed Print
89
Printer Driver Settings
91
Section 6: Troubleshooting
94
Solving Pre Die-Cut Print Alignment Problems
94
Maintenance
96
Poor Print Quality - Cleaning the Cartridge
97
Technical Support
100
Section 7: Technical Specifications
101
