21
2C Installing

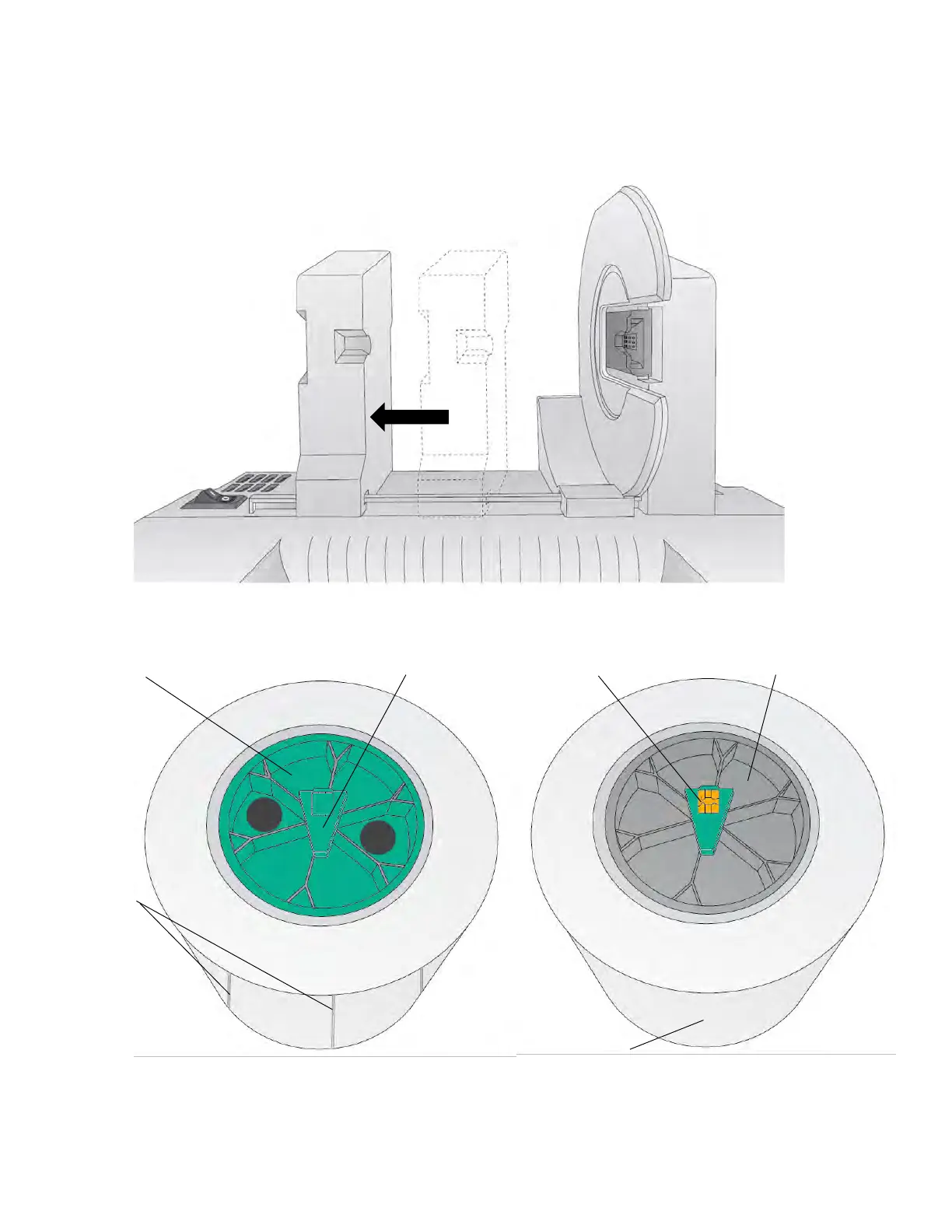

Pre Die-Cut Label Stock
1.
Move the roll holder to the approximate position w
hich matches the width of the stock you
are installing. You can always fine tune this later.
2.
Install the Green Hub on the right side of the pre die-cut media.
Green Hub
Die Cuts
Bl
ank Chip Holder
Pre Die-Cut Roll
Digital Die-
Cut Roll
Smart Chip
Black Hub
Continuous Media
(User must install Green Hub)
20
22
