8
1C Installing
the Roll Hold
ers

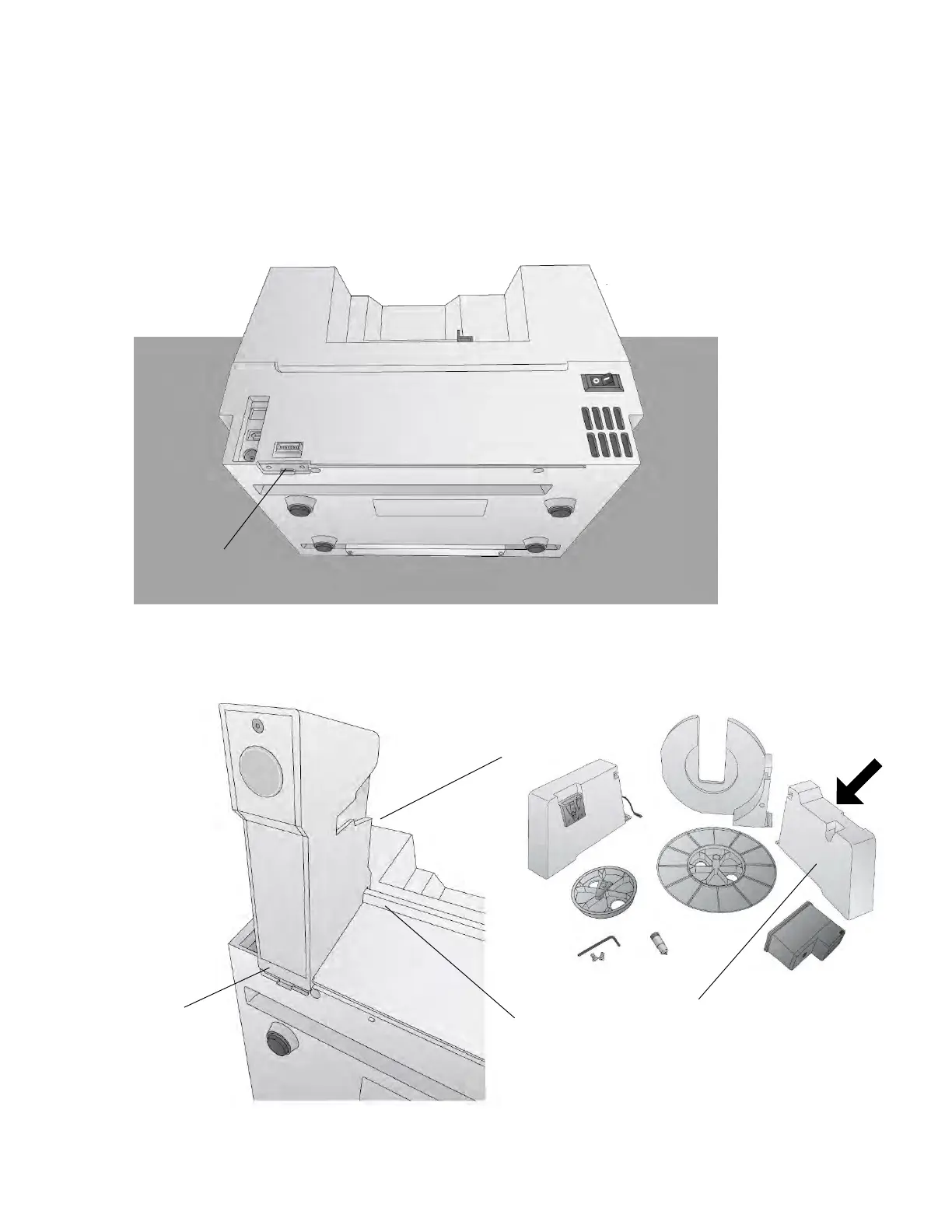

Some light assembly is required before operating the printer. Follow these instructions to install
the
roll holders.
1.
Set the printer on its front so the bottom is facing you.
2.
Install the movable label roll holder by attaching t
he hooked end on the rail. The bottom of
the holder will fit in the notch on the printer.
Rail
Notch
Tab
Movable Roll Holder
Movable Roll Holder
7
9
Table of Contents
Table of Contents
4
Section 1: Getting Started
6
Choosing a Good Location
6
Unpacking and Inspection
7
Installing the Roll Holders
8
Identifying the Parts
12
Section 2: Media, Cartridges and Knives
14
Label and Roll Specifications
15
Installing Digital Die-Cutting Label Stock
18
Installing Pre Die-Cut Label Stock
21
Replacing the Digital die Cutting Knife Holder
25
Replacing the Cutting Knife
27
Replacing Ink Cartridges
28
Adjusting the Gap Sensor Position (Pre Die-Cut Labels Only)
30
Section 3 Primera Printhub
32
Adjusting Knife Pressure and Stretch Factor
33
Using the Cost Estimator
35
Set the Gap Sensor Mode (Pre Die-Cut Labels Only)
36
Set the Present/Cut Mode
38
Adjusting Print Alignment
40
Printhub Settings
42
Printhub Printer Settings
44
3G1. Multiple Printer Support
45
Section 4 Printing and Cutting with Ptcreate
46
Overview (Standard Version Vs Pro Version)
46
Ptcreate Software Activation
49
Software Deactivation
50
Tutorial How to Setup a Print and Cut in Ptcreate Standard
51
Choosing a Label Size
51
Import a Flat Image (JPG, BMP, PNG, TIF, GIF)
52
Add a Cut File
54
Print
57
Tutorial: How to Setup a Print and Cut Using Ptcreate Pro - Vector File Cut
58
Choosing a Label Size
58
Import a Flat Image (JPG, BMP, PNG, TIF, GIF)
59
Working with Layers in an Imported Vector File
62
Tutorial: How to Setup a Print and Cut Using Ptcreate Pro - Contour Cut
64
Choosing a Label Size
64
Import an Image
65
Trace Image and Create Cut Line
67
Offset a Cut Path
71
Setup Multiple Identical Cuts (Duplicate and Array)
73
Print Preview
78
Vector File Specifications for Designer
79
Section 5: Printing Only to Pre Die-Cut Labels
80
Using Bartender for Pre Die-Cut Printing
80
Add Text, Barcodes and Graphics to a Bartender Label
87
Printing from Other Programs
88
Creating a Full Bleed Print
89
Printer Driver Settings
91
Section 6: Troubleshooting
94
Solving Pre Die-Cut Print Alignment Problems
94
Maintenance
96
Poor Print Quality - Cleaning the Cartridge
97
Technical Support
100
Section 7: Technical Specifications
101
