24
6.

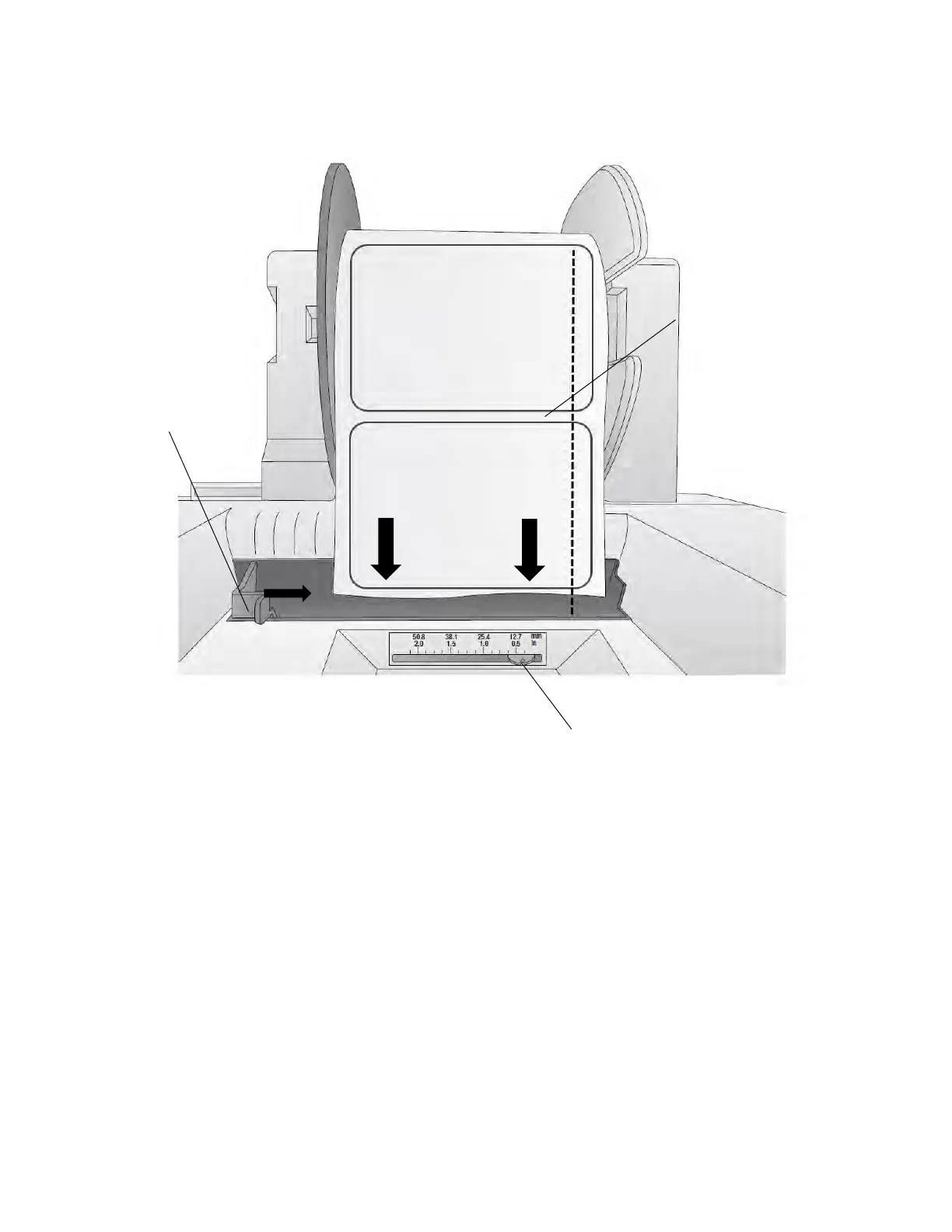

Guide the leading edge of the roll into the feed area. Move the blue guide so that it touches
the label stock
.
7.
Push until the printer detects the stock, grabs it a
n
d pulls it through the printer.
Blue Guide
Gap Sensor Position
Indicator from right
edge of media
Gap sensor
should intersect
the gap between
labels
Note
the positon of the label sensor. Slide
the sensor position indicator so that it
intersects with the gaps between your labels.
For most label stock you will not need to
move this.
23
25
