Physical Overview
20

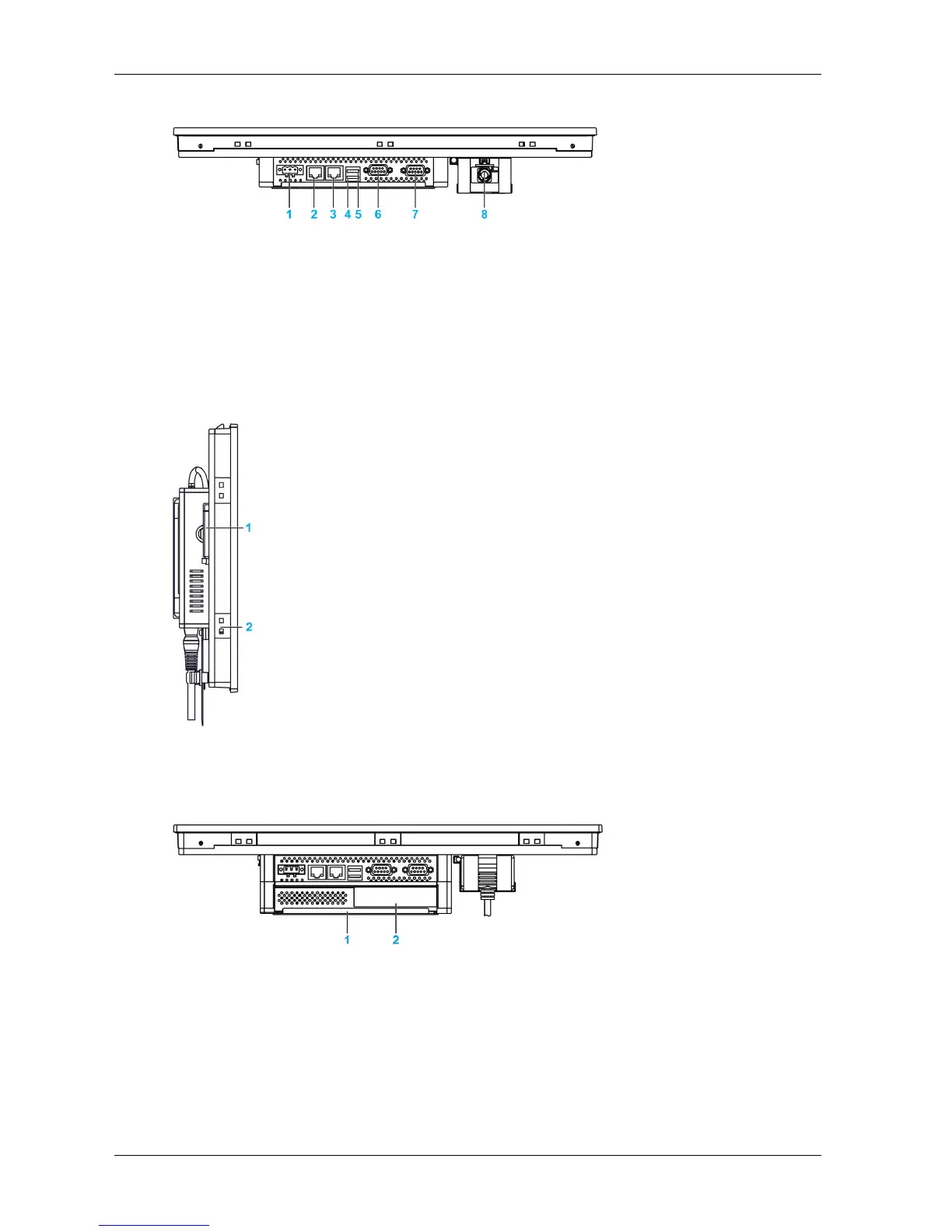

Slim Panel W15” Multi-touch Bottom View
1 DC power connector
2 ETH2 (10/100/1000 Mbit/s)
3 ETH1 (10/100/1000 Mbit/s)
4 USB2 (USB 3.0)
5 USB1 (USB 2.0)
6 COM2 port RS-232/422/485
7 COM1 port RS-232
8 Optional AC power supply
Slim Panel W15” Multi-touch Side View
1 Access CFast memory card
2 Slot for the installation fasteners
Slim Panel Bottom View with Extension Kit
1 Extension kit (PFXZPSADSSD2)
2 Optional interface
