PS5000 Series (Slim Panel Type Atom Model) User Manual
31

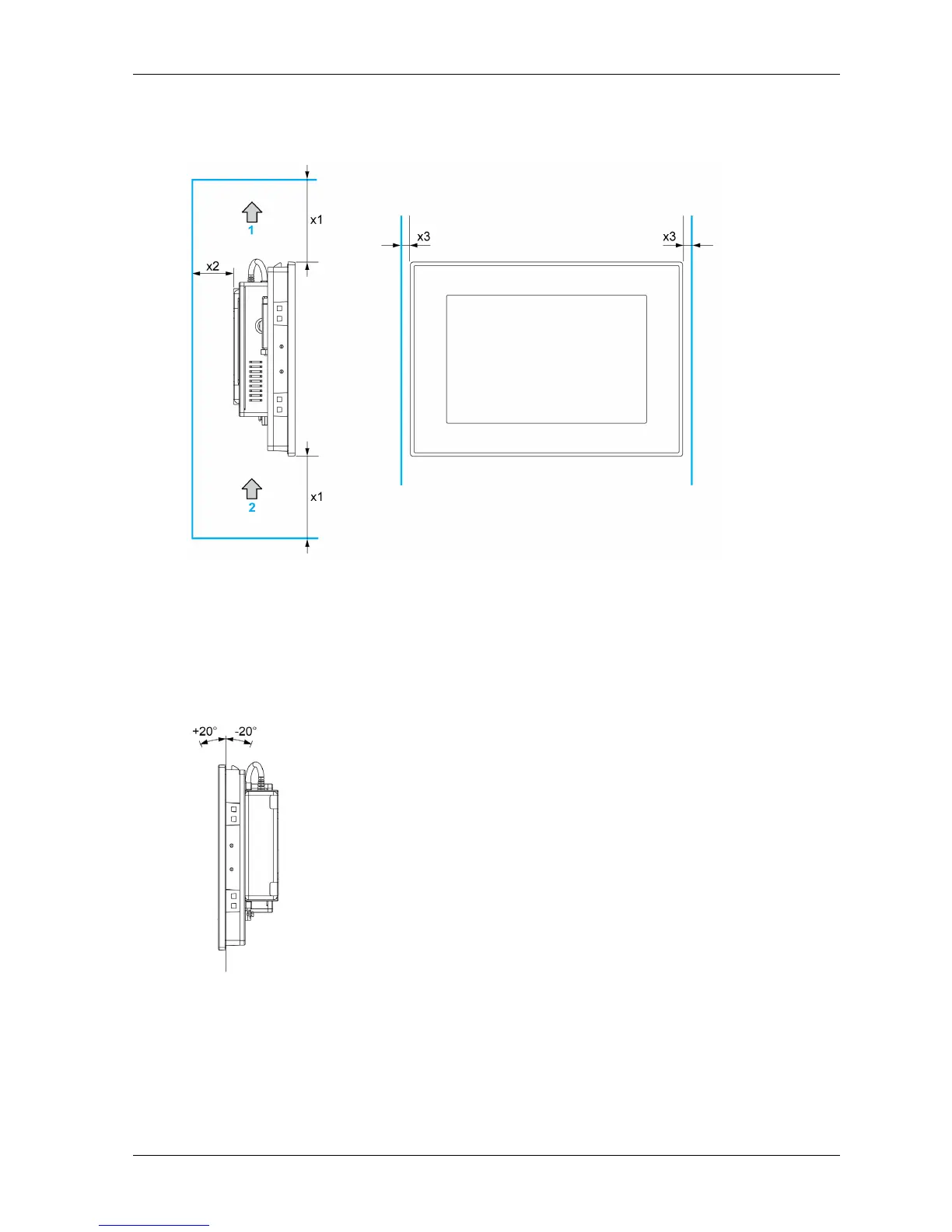

Spacing Requirements
In order to provide sufficient air circulation, mount the Slim Panel so that the spacing above, below,
and on the sides of the unit is as follows:
1 Air out
2 Air in
x1 > 100 mm (3.93 in)
x2 > 50 mm (1.96 in)
x3 > 10 mm (0.39 in)
Mounting Orientation
The following figure shows the allowable mounting orientation for the Slim Panel:
