PS5000 Series (Slim Panel Type Atom Model) User Manual
83

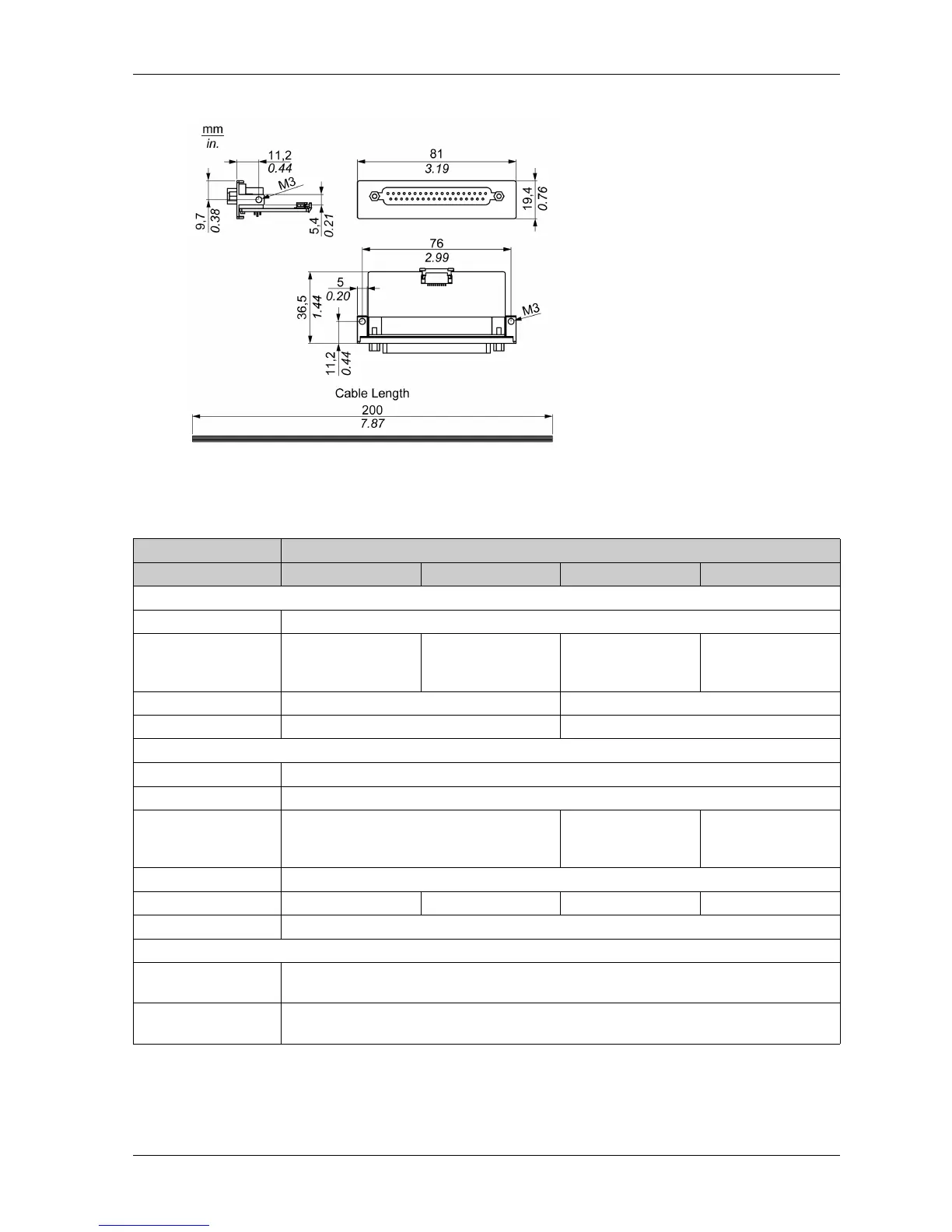

The following figure shows the dimensions of the 4 x RS-232/422/485 interface module:
Serial Interface
The table shows technical data for the serial interfaces:
Element Characteristics
Part number PFXZPBMPR42P2 PFXZPBMPR22P2 PFXZPBMPR44P2 PFXZPBMPR24P2
General
Bus type Mini PCIe card revision 1.2
Type 2 x RS-422/485,
electrically isolated
2 x RS-232,
electrically isolated
4 x RS-422/485,
electrically non-
isolated
4 x RS-232,
electrically non-
isolated
Connectors 2 x D-Sub 9-pin, plug 1 x D-Sub 37-pin, socket
Power consumption 3.3 Vdc at 400 mA 3.3 Vdc at 500 mA
Communication
Data bits 5, 6, 7, 8
FIFO 128 bytes
Flow control RTS/CTS
Xon/Xoff
RTS/CTS (not
supported)
Xon/Xoff
RTS/CTS
Xon/Xoff
Parity None, odd, even, Mark and space
Speed 50 bps...921.6 kbps 50 bps...230.4 kbps 50 bps...921.6 kbps 50 bps...230.4 kbps
Stop bits 1, 1.5, 2
Transfer rate
Transfer rate
RS-232
Maximum 115 kbps with cable length ≤ 10 m
Maximum 64 kbps with cable length ≤ 15 m
Transfer rate
RS-422/485
Maximum 115 kbps with cable length ≤ 1200 m
