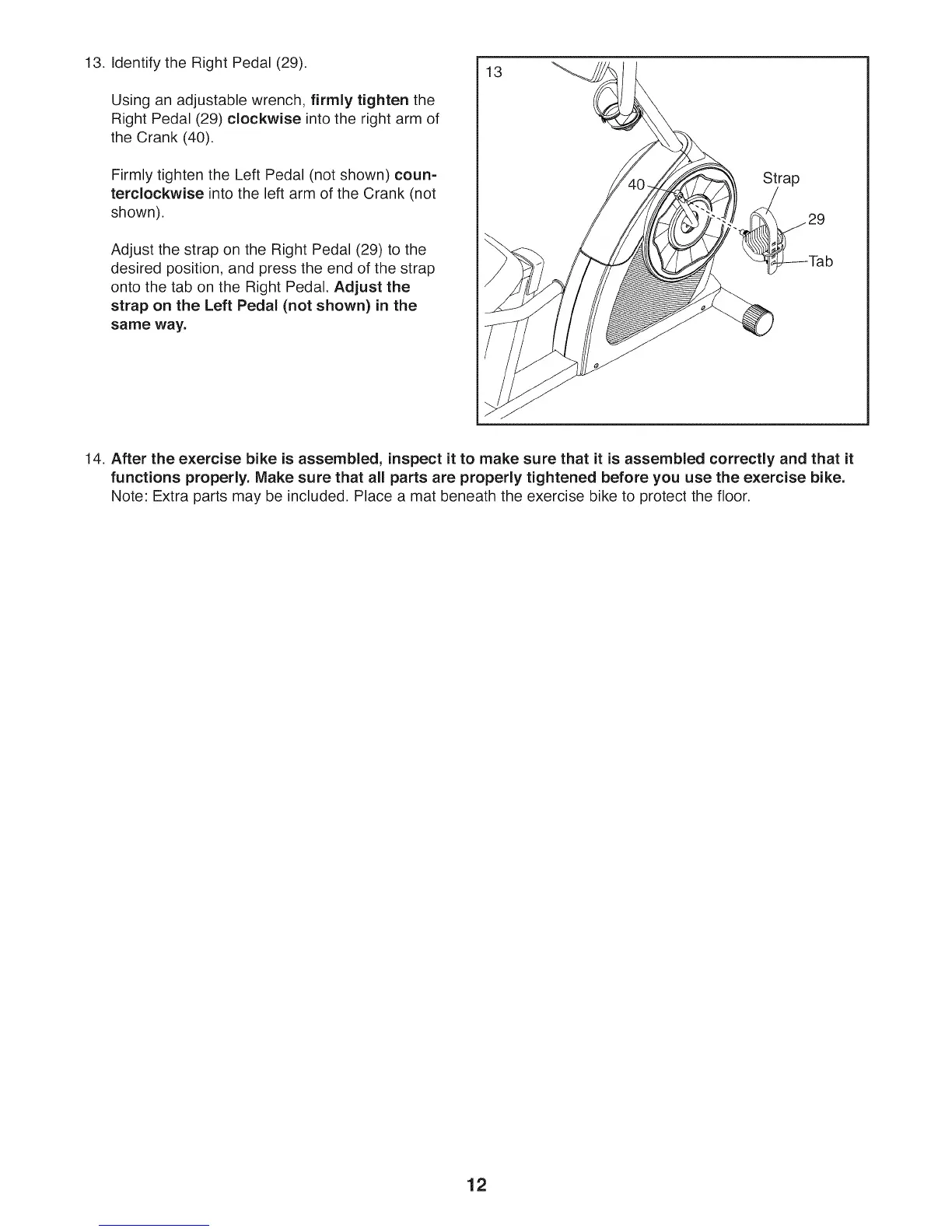

13. Identify the Right Pedal (29).
Using an adjustable wrench, firmly tighten the
Right Pedal (29) clockwise into the right arm of
the Crank (40).
Firmly tighten the Left Pedal (not shown) coun-
terclockwise into the left arm of the Crank (not
shown).
Adjust the strap on the Right Pedal (29) to the
desired position, and press the end of the strap
onto the tab on the Right Pedal. Adjust the
strap on the Left Pedal (not shown) in the
same way.
13
14. After the exercise bike is assembled, inspect it to make sure that it is assembled correctly and that it
functions properly. Make sure that all parts are properly tightened before you use the exercise bike.
Note: Extra parts may be included. Place a mat beneath the exercise bike to protect the floor.
12
