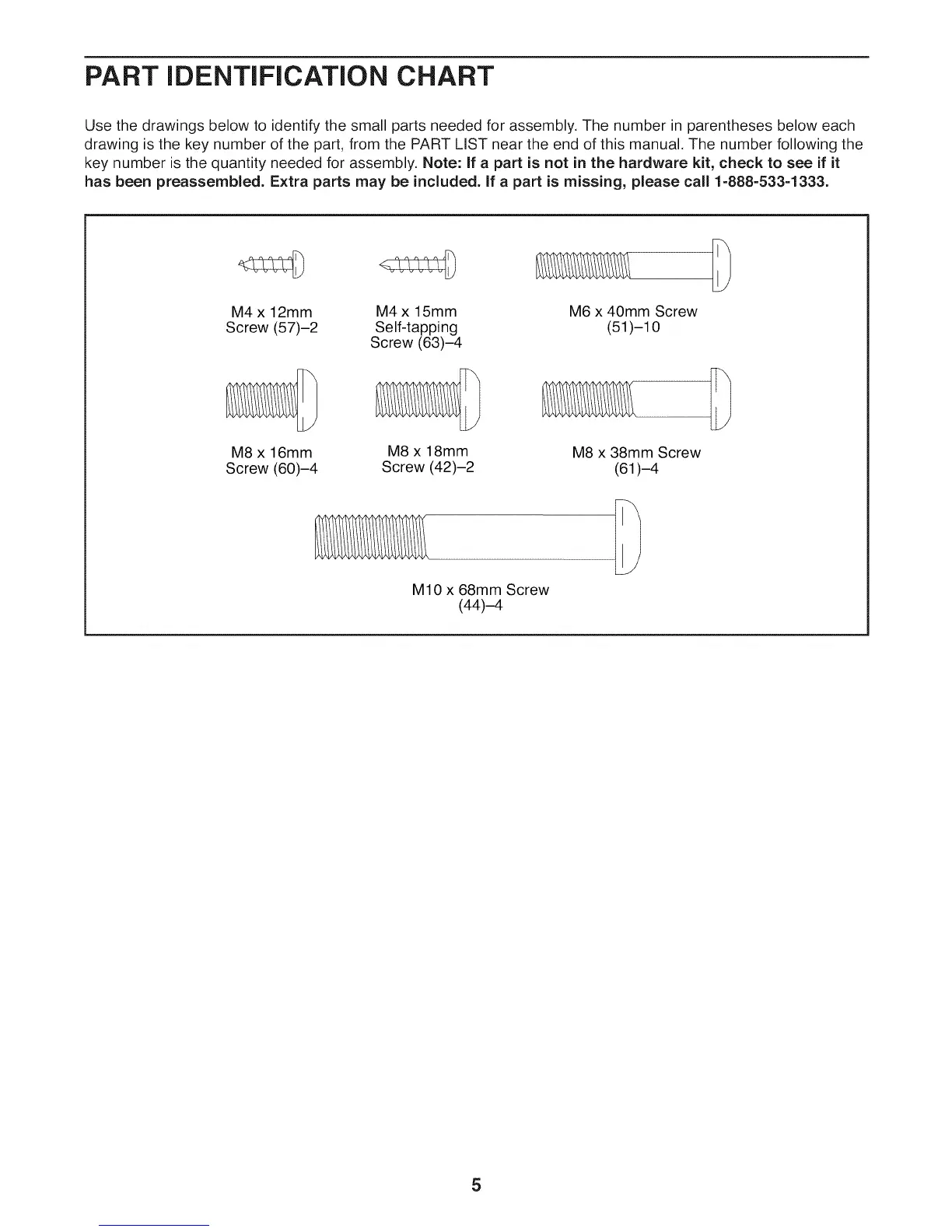

PART iDENTiFiCATiON CHART
Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the
key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it
has been preassembled. Extra parts may be included. If a part is missing, please call 1=888=533=1333.
M4x 12mm M4x 15mm
Screw (57)-2 Self-tapping
Screw (63)-4
M6 x 40mm Screw
(51)-10
M8 x 18mm
Screw (42)-2
M8 x 16mm M8 x 38mm Screw
Screw (60)-4 (61)-4
MIO x 68mm Screw
(44)-4
5
