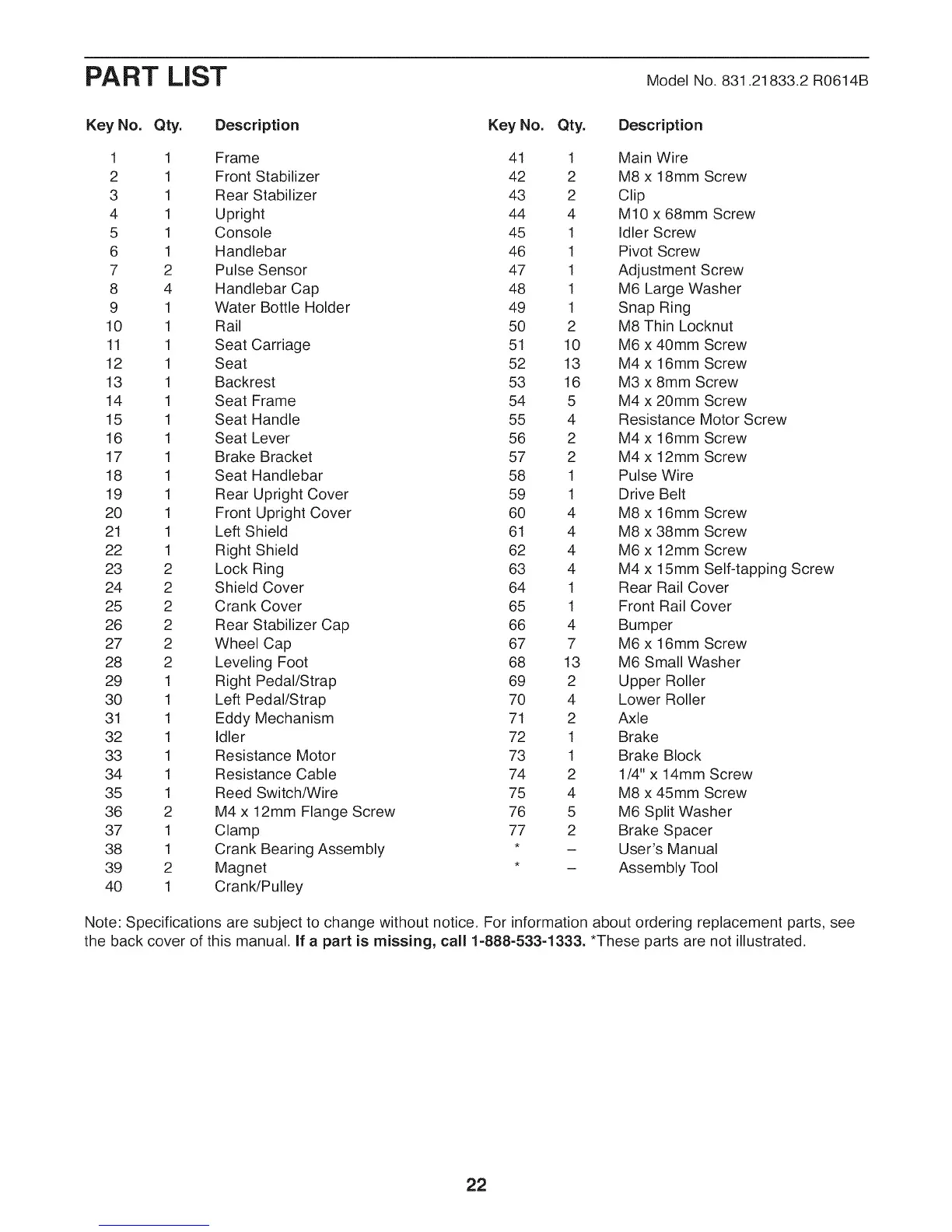

PART LIST Model No. 831.21833.2 R0614B
Key No. Qty. Description Key No. Qty. Description
1 1 Frame 41 1 Main Wire
2 1 Front Stabilizer 42 2 M8 x 18mm Screw
3 1 Rear Stabilizer 43 2 Clip
4 1 Upright 44 4 M10 x 68mm Screw
5 1 Console 45 1 Idler Screw
6 1 Handlebar 46 1 Pivot Screw
7 2 Pulse Sensor 47 1 Adjustment Screw
8 4 Handlebar Cap 48 1 M6 Large Washer
9 1 Water Bottle Holder 49 1 Snap Ring
10 1 Rail 50 2 M8 Thin Locknut
11 1 Seat Carriage 51 10 M6 x 40mm Screw
12 1 Seat 52 13 M4 x 16mm Screw
13 1 Backrest 53 16 M3 x 8mm Screw
14 1 Seat Frame 54 5 M4 x 20mm Screw
15 1 Seat Handle 55 4 Resistance Motor Screw
16 1 Seat Lever 56 2 M4 x 16mm Screw
17 1 Brake Bracket 57 2 M4 x 12mm Screw
18 1 Seat Handlebar 58 1 Pulse Wire
19 1 Rear Upright Cover 59 1 Drive Belt
20 1 Front Upright Cover 60 4 M8 x 16mm Screw
21 1 Left Shield 61 4 M8 x 38mm Screw
22 1 Right Shield 62 4 M6 x 12mm Screw
23 2 Lock Ring 63 4 M4 x 15mm Self-tapping Screw
24 2 Shield Cover 64 1 Rear Rail Cover
25 2 Crank Cover 65 1 Front Rail Cover
26 2 Rear Stabilizer Cap 66 4 Bumper
27 2 Wheel Cap 67 7 M6 x 16mm Screw
28 2 Leveling Foot 68 13 M6 Small Washer
29 1 Right Pedal/Strap 69 2 Upper Roller
30 1 Left Pedal/Strap 70 4 Lower Roller
31 1 Eddy Mechanism 71 2 Axle
32 1 Idler 72 1 Brake
33 1 Resistance Motor 73 1 Brake Block
34 1 Resistance Cable 74 2 1/4" x 14mm Screw
35 1 Reed Switch/Wire 75 4 M8 x 45mm Screw
36 2 M4 x 12mm Flange Screw 76 5 M6 Split Washer
37 1 Clamp 77 2 Brake Spacer
38 1 Crank Bearing Assembly * - User's Manual
39 2 Magnet * - Assembly Tool
40 1 Crank/Pulley
Note: Specifications are subject to change without notice. For information about ordering replacement parts, see
the back cover of this manual, if a part is missing, call 1-888-533-1333. *These parts are not illustrated.
