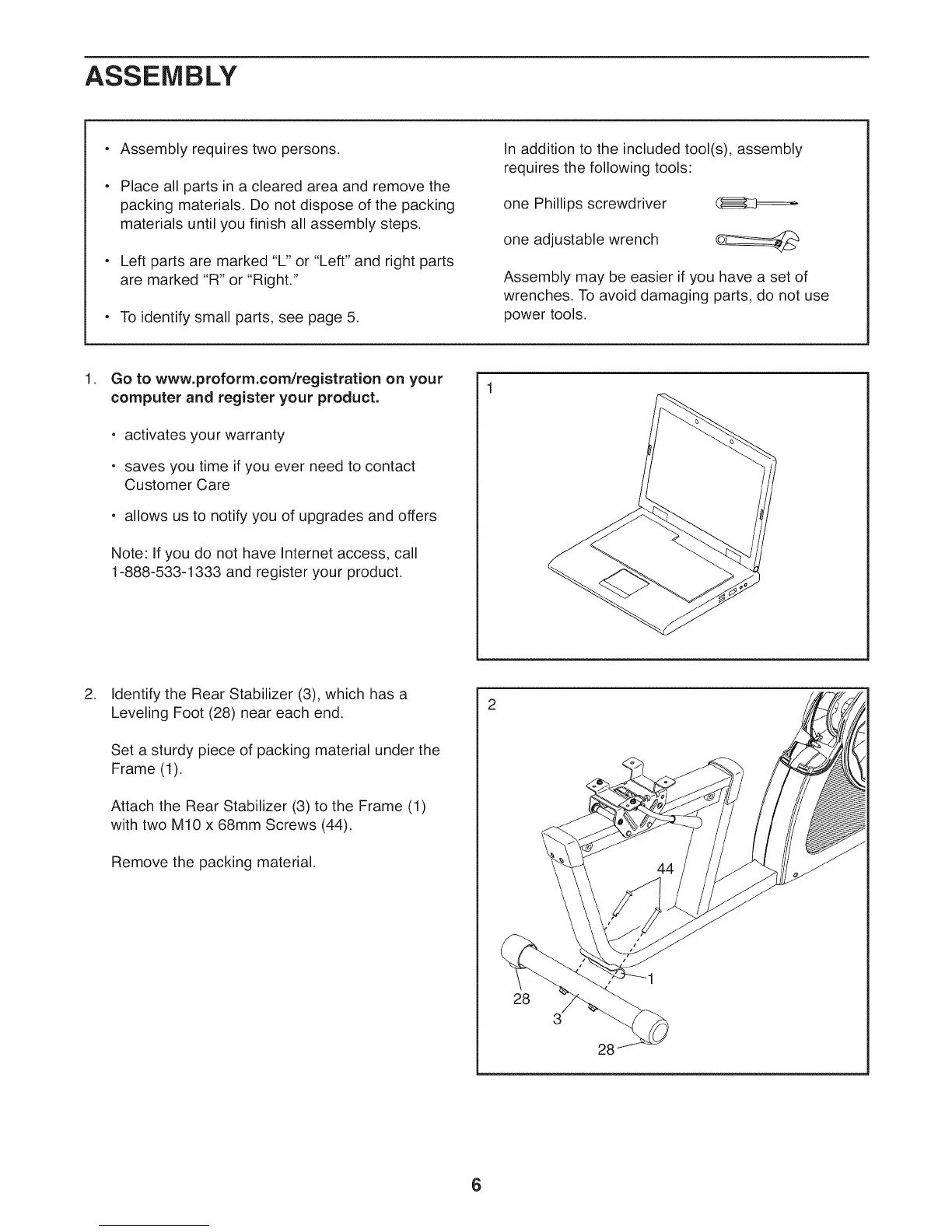

ASSEMBLY
Assembly requires two persons.
Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you finish all assembly steps.
Left parts are marked "L" or "Left" and right parts
are marked "R" or "Right."
To identify small parts, see page 5.
In addition to the included tool(s), assembly
requires the following tools:
one Phillips screwdriver
one adjustable wrench
Assembly may be easier if you have a set of
wrenches. To avoid damaging parts, do not use
power tools.
.
Go to www.proform.com/registration on your
computer and register your product.
o activates your warranty
o saves you time if you ever need to contact
Customer Care
o allows us to notify you of upgrades and offers
Note: If you do not have Internet access, call
1-888-533-1333 and register your product.
.
Identify the Rear Stabilizer (3), which has a
Leveling Foot (28) near each end.
Set a sturdy piece of packing material under the
Frame (1).
Attach the Rear Stabilizer (3) to the Frame (1)
with two M10 x 68mm Screws (44).
Remove the packing material.
28
28
6
