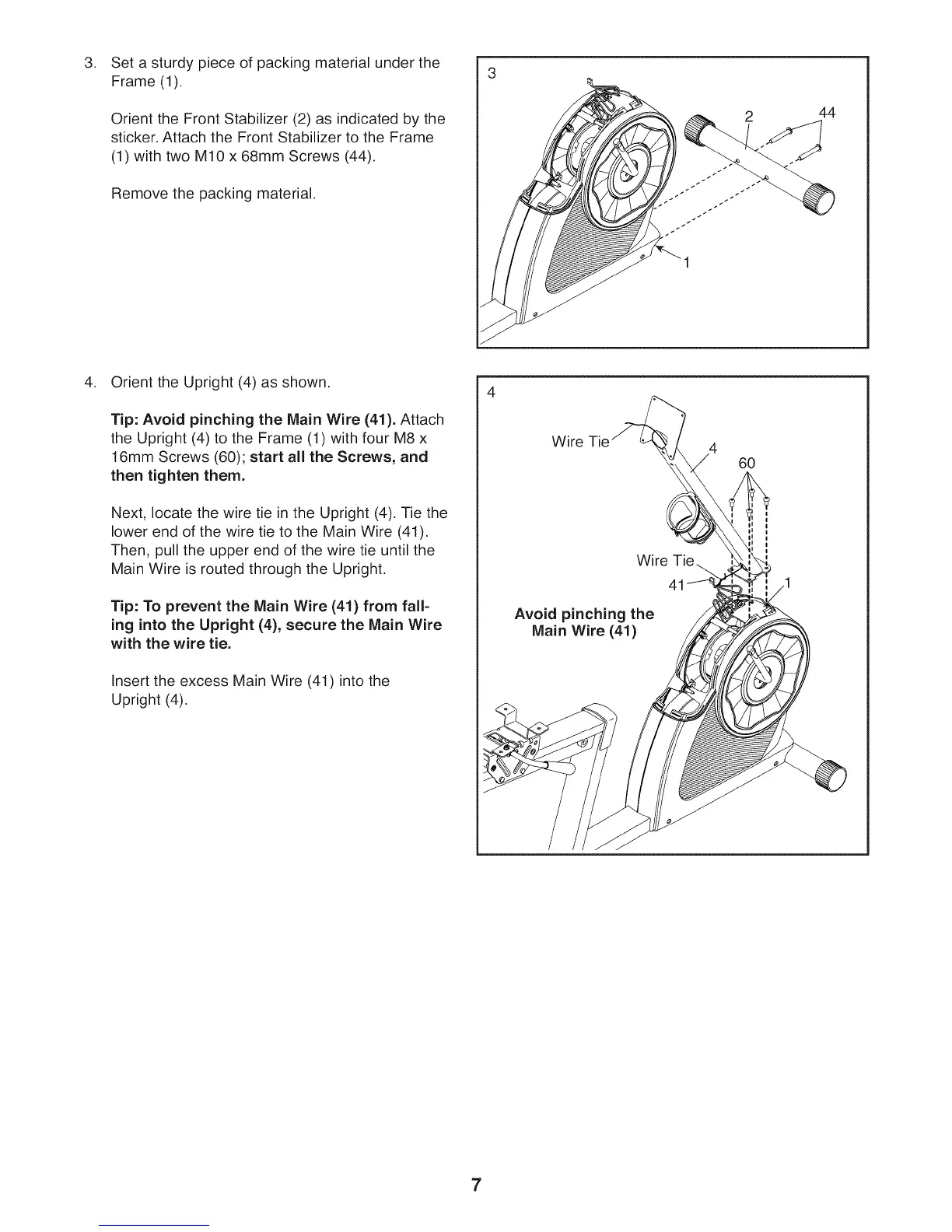

3. 3
Set a sturdy piece of packing material under the
Frame (1).
Orient the Front Stabilizer (2) as indicated by the
sticker. Attach the Front Stabilizer to the Frame
(1) with two M10 x 68mm Screws (44).
Remove the packing material.
2 44
4. Orient the Upright (4) as shown.
Tip: Avoid pinching the Main Wire (41). Attach
the Upright (4) to the Frame (1) with four M8 x
16mm Screws (60); start all the Screws, and
then tighten them.
Next, locate the wire tie in the Upright (4). Tie the
lower end of the wire tie to the Main Wire (41).
Then, pull the upper end of the wire tie until the
Main Wire is routed through the Upright.
Tip: To prevent the Main Wire (41) from fall-
ing into the Upright (4), secure the Main Wire
with the wire tie.
Insert the excess Main Wire (41) into the
Upright (4).
Wire
Wire Tie
Avoid pinching the
Main Wire (41)
60
7
To Next Page
