Pro-Form 460R - Page 9

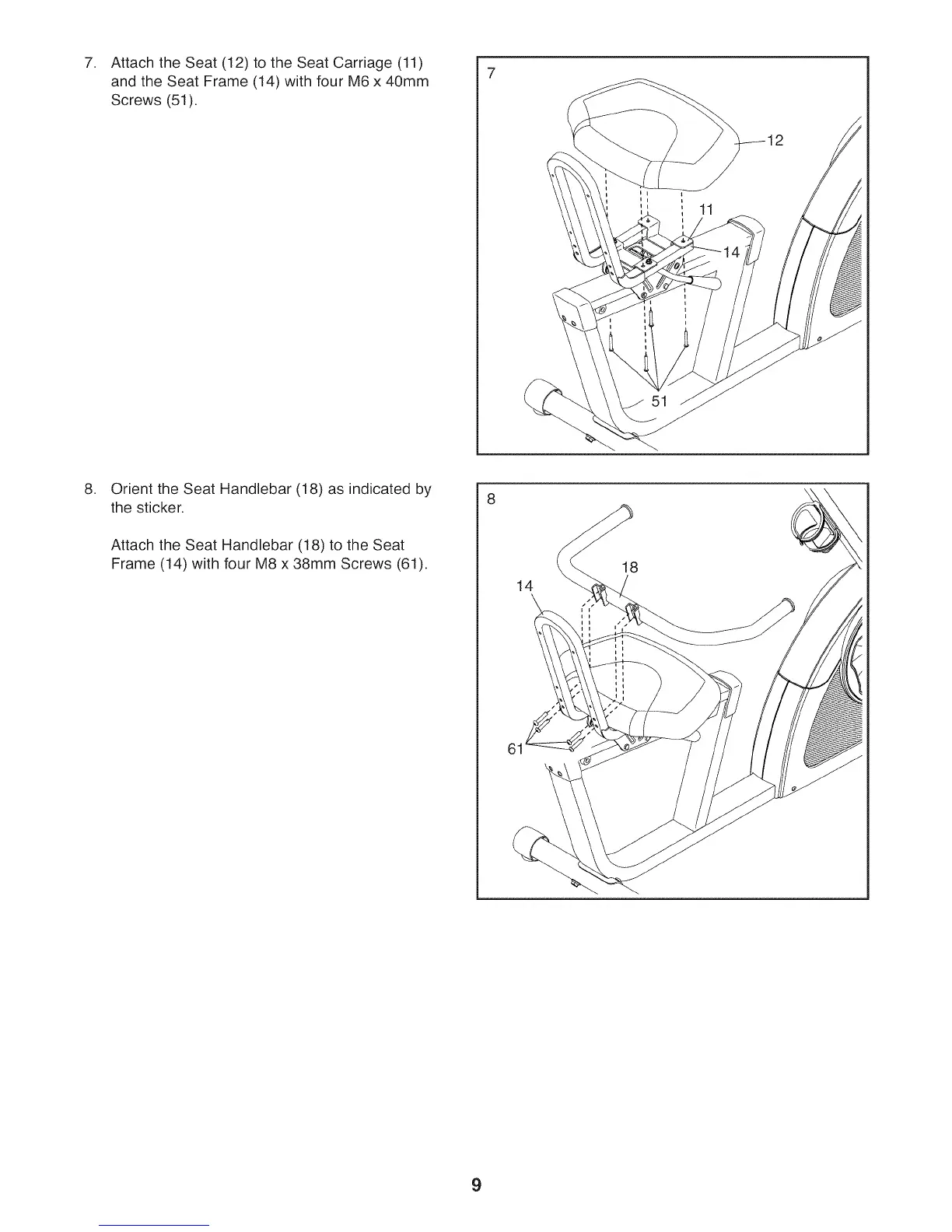

7. Attach the Seat (12) to the Seat Carriage (11)
and the Seat Frame (14) with four M6 x 40mm
Screws (51).
.
Orient the Seat Handlebar (18) as indicated by
the sticker.
Attach the Seat Handlebar (18) to the Seat
Frame (14) with four M8 x 38mm Screws (61).
14
61
9
