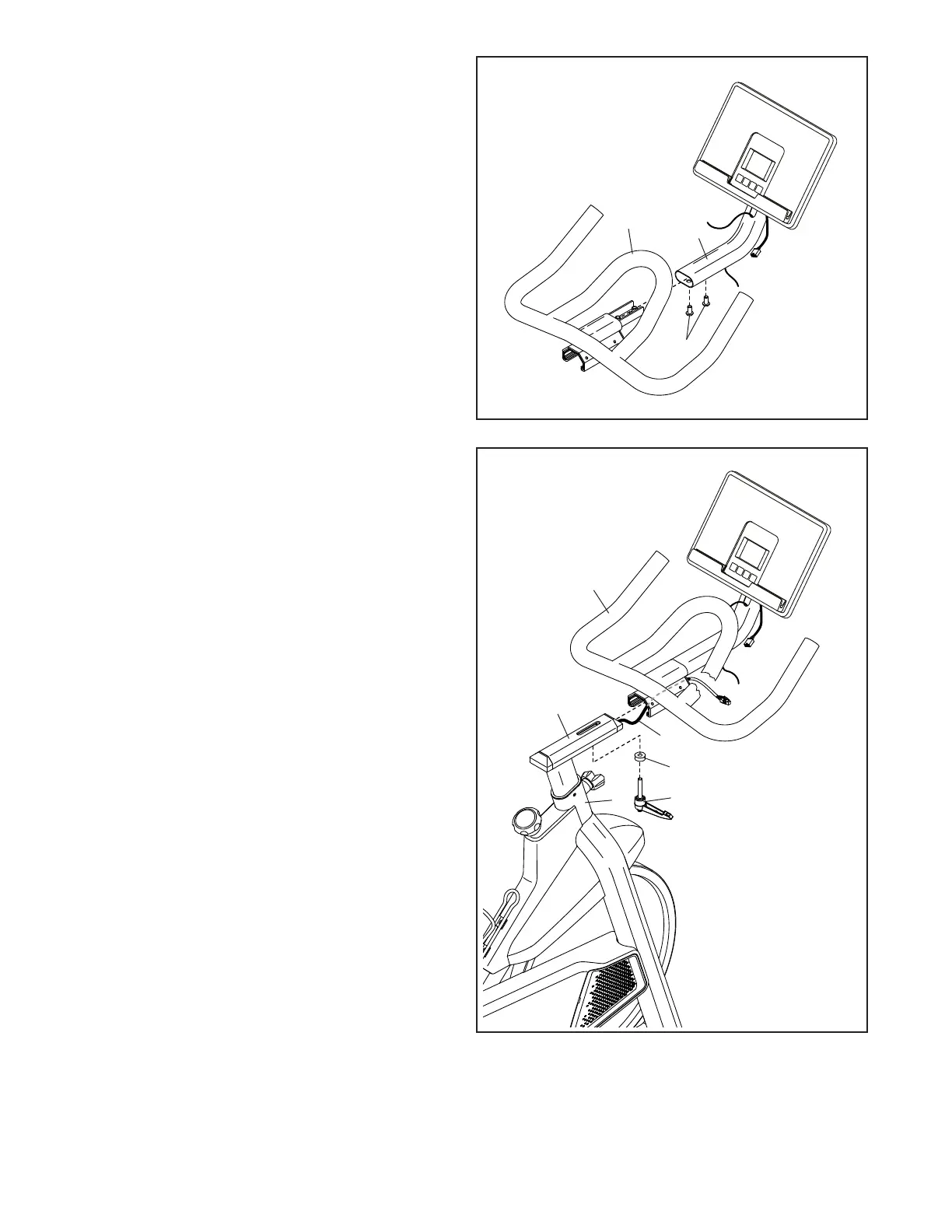

6. Slide the Console Mount (5) onto the Handlebar
(4). Attach the Console Mount with two M8 x
16mm Screws (79).
Assembly is 115% of ED
6
79
4
5
7. Remove the plastic tie (not shown) securing the
Upper Wire (90) to the Frame (1).
Next, hold the Handlebar (4) near the Handlebar
Post (9), and route the Upper Wire (90) through
the Handlebar as shown.
Avoid pinching the Upper Wire (90). Slide the
Handlebar (4) onto the Handlebar Post (9).
Next, slide an M8 Washer (40) onto an
Adjustment Handle (13), insert the Adjustment
Handle upward into the Handlebar Post (9),
and tighten the Adjustment Handle into the
Handlebar (4).
Note: The Adjustment Handle (13) functions
like a ratchet. Turn the Adjustment Handle in
the desired direction, pull it downward, turn it in
the opposite direction, push it upward, and then
turn it in the desired direction again. Repeat this
process as many times as necessary.
Note: To adjust the Handlebar (4) after you
assemble the exercise bike, see page 13.
Assembly is 115% of ED
40
4
9
7
13
Avoid pinching
the Upper Wire
(90)
90
