4 - Operation
Page 14
i5
4.2.3 i5 Touch Screen Control
2-Sided Welding (Semi-Auto mode)
Creating a Custom Weld
1. Select a Weld Cap, Stack Size, and Program
2-Sided Welding (Semi-Auto Mode)
Custom Weld Programs:

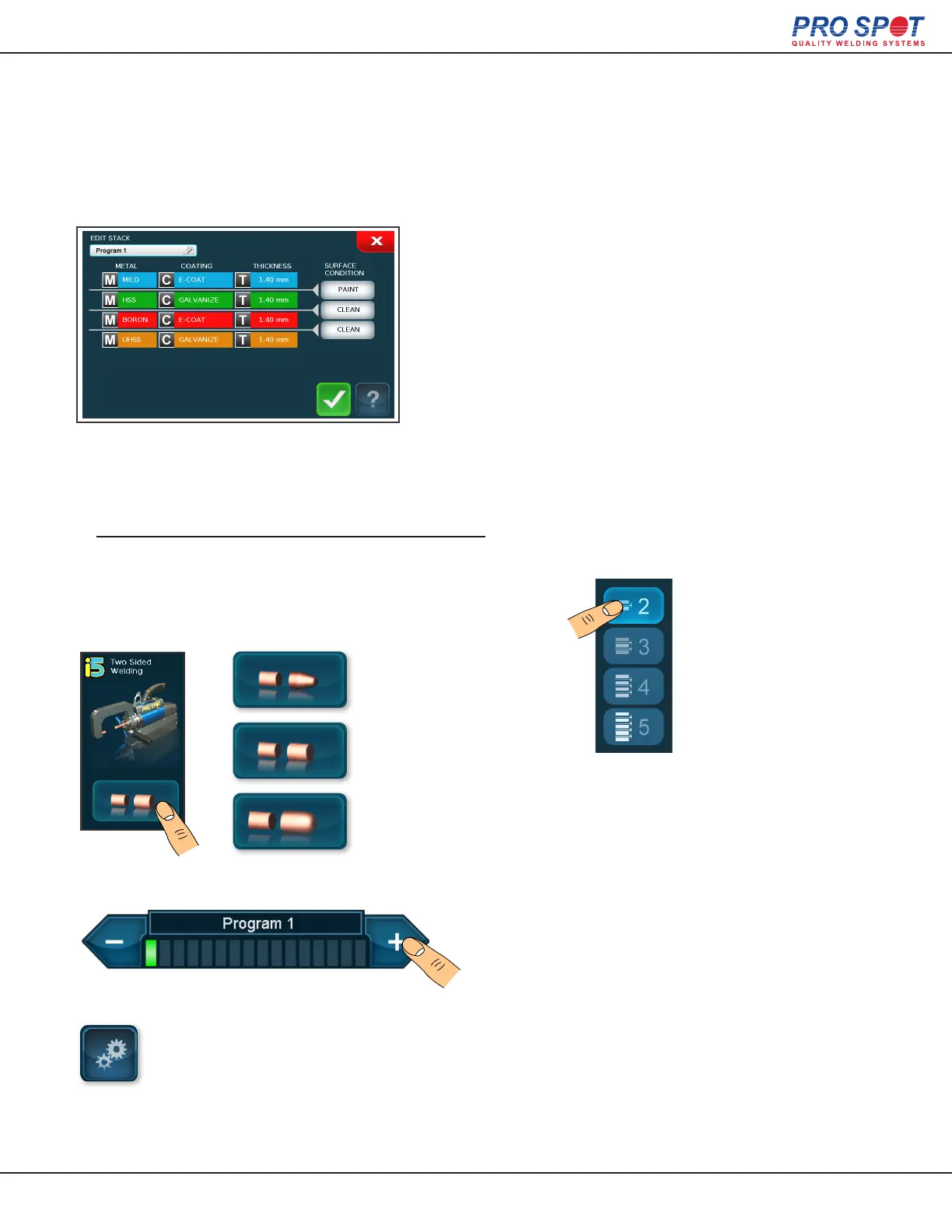

The edit stack screen (which is accessed with the set-
tings button from the Semi-Auto Mode screen) allows
the user to make custom weld stacks.
To create a custom
weld program in
Semi-Auto Mode,
rst select the size
of stack you’re
working with.
Press the weld cap selection button on the main
Manual Mode screen, then select the appropriate
weld cap.
PS-025
Weld Cap
PS-026
Flat 1/2” Cap
PS-027
OEM Cap
Continued on next page >
Go to settings to edit the stack composition and surface
conditions.
Then select a weld program to over-write.
