4 - Operation
Page 14
i5
4.2.3 i5 Touch Screen Control
Amount of time between pressure
and the initial pulse being applied.
Amount of time pressure is applied
after the weld is complete.
Amount of time between pulses.
Amount of time it takes for the
current to reach its peak during the
rst pulse.
Amount of time it takes for the
current to go from its peak to 0
during the rst pulse.
Amount of time it takes for the
current to reach its peak.
Amount of time current is applied
during the weld during the
second pulse.
Amount of time it takes for the
current to go from its peak to 0.
Amount of time current is applied
during the weld during the
second pulse.
All Info Copyright © Pro Spot International Inc.
4 - Operation
Page 14
i5
4.2.3 i5 Touch Screen Control
Squeeze
Time
Amount of time between pressure
and current being applied.
Squeeze
Time
Hold
Time
Amount of time pressure is applied
after the weld is complete.
Hold
Time
Weld
Delay
Rise
Time
Rise
Time
Fall
Time
Fall
Time
Rise
Time (2)
Fall
Time (2)
If you selected “Single Weld” on the main screen you are
presented with these options.
If you selected “Double Weld” on the main screen you are
presented with these options.

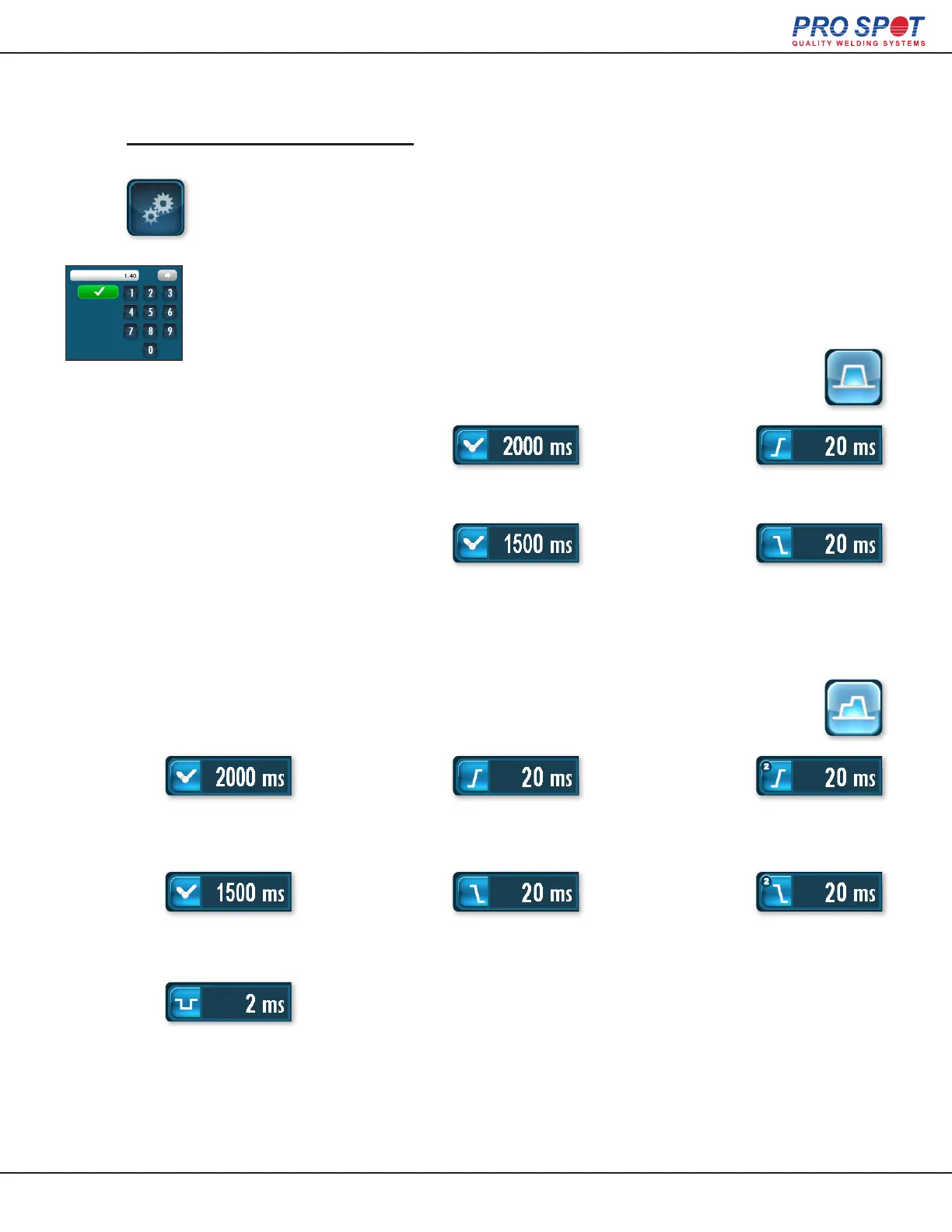

3. Choose Your Advanced Settings
Press the settings button to go to advanced settings.
Set the desired parameters by selecting each one to be edited and
modify using the keypad that opens.
Continued on next page >
