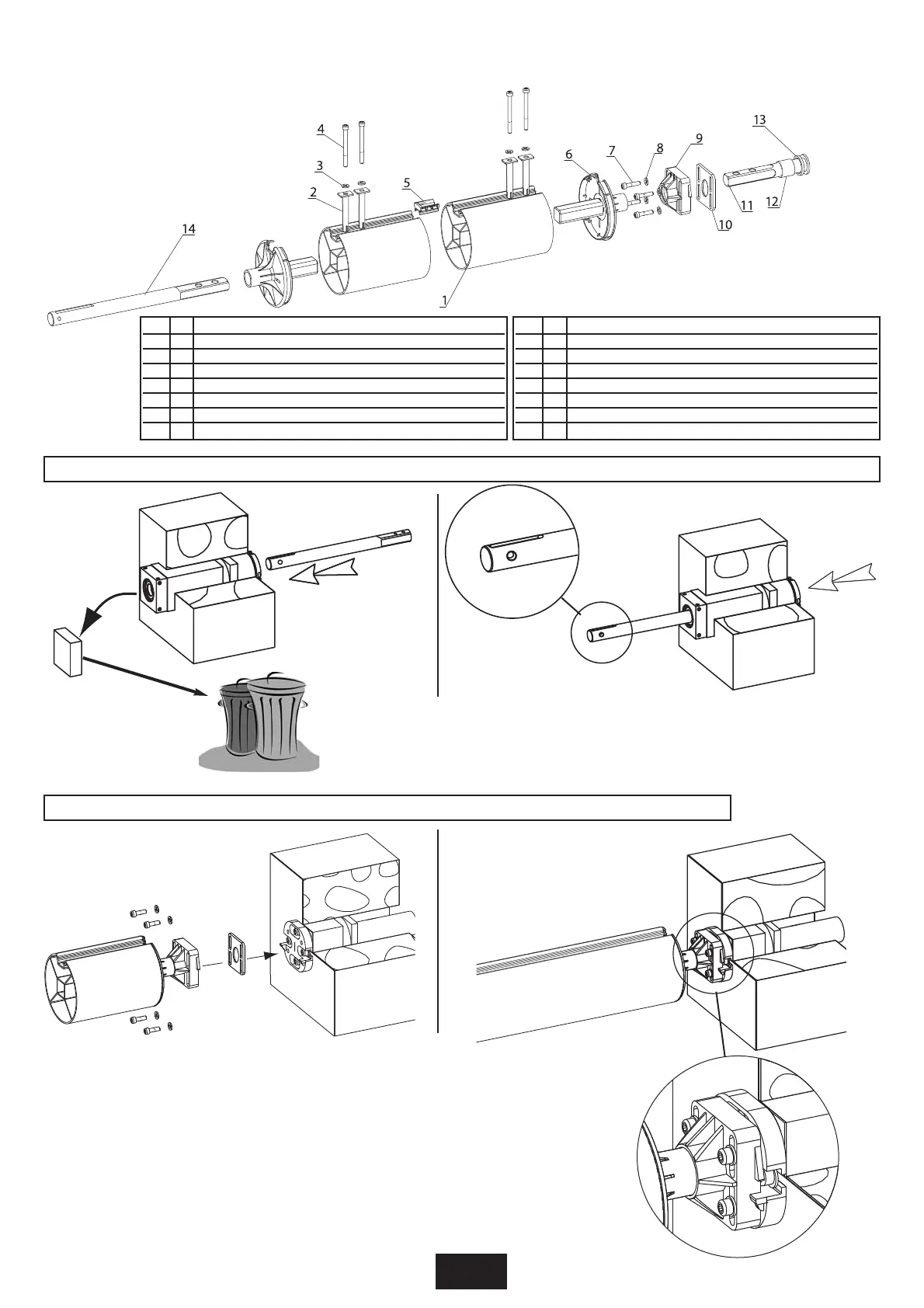

MOUNTING THE COVER AXLE (Ø150 & Ø180)
Index Nbr Component designation
1 1 Aluminium axle Ø150 or Ø 180
2 4 Hollow locking inserts
3 4 Stainless steel M8 washers
4 4 HSHC screw M8 x 65 x 28 SS (M8 x 80 x 28 SS for Ø 180)
5 5 Slat/axle connecting strap support fitting
6 2 Axle end-piece
7 4 HSHC screw M8 35 x 35 SS
Index Nbr Component designation
8 4 Washers Z8 SS
9 1 Bearing
10 1 Bearing blocking gasket
11 1 Stainless steel bearing shaft
12 1 Composite bushing 36x30x30
13 1 Composite washer 44 x 36 x 5
14 1 Motor shaft IM 544 SS
INSERTION OF THE STAINLESS STEEL SHAFT
MOUNTING THE AXLE ON THE BEARING SUPPORT PLATE
DO NOT BLOCK THE SCREWS
