2009/02 - Indice de révision : D - code : 0035431
46/76

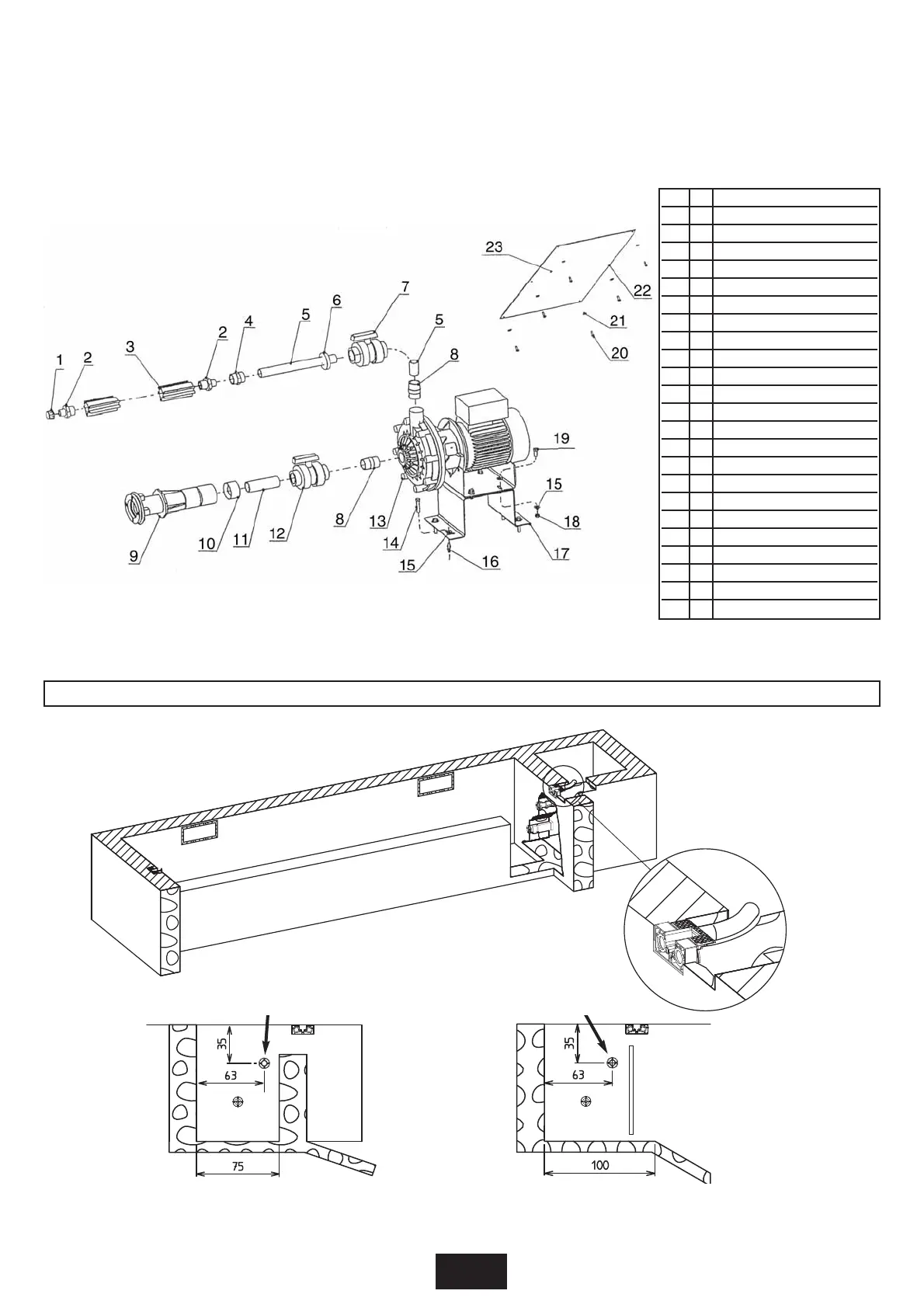

INSTALLATION OF THE SLAT COVER CLEANING MANIFOLD
“CLEANDECK”
Index Nbr Component designation
1 1 PVC plug ½” F
2 2 Adaptor nipple ½” / 25 M
3 1 Bare manifold
4 1 Sleeve ½”/ 25 F
5 1 Metre of PVC piping SR Ø 25
6 1 Seal PARA 46/24/10
7 1 1/4 turn valve Ø 25
82
Adaptor nipple 1” / 32 M
91
Suction throughwall flange TP 271
10 1 Reducing bush, solvent 50/32
11 1 Metre of PVC SR Ø 32
12 1 ¼ turn valve Ø 32
13 1 AQUABOOST booster
14 4 Stainless steel screw 8 x 40
15 12 Stainless steel washer M8
16 4 Nylon bushing for screw Ø 8
17 1 AQUABOOST spacer
18 4 Stainless steel nut M8
19 4 Stainless steel screw 8 x 35
20 6 Stainless steel screw 4.2 x 13
21 6 “pop” rivet 4.8 x 21
22 6 Spacer 5.3 x 10 x 5
23 1
Protective plexiglass plate 500 x 300
Not supplied with the kit
PREPARATION PRIOR TO INSTALLATION
SEALING DIMENSIONS WITH A PIT WALL
SEALING DIMENSIONS WITH A PIT PARTITION
