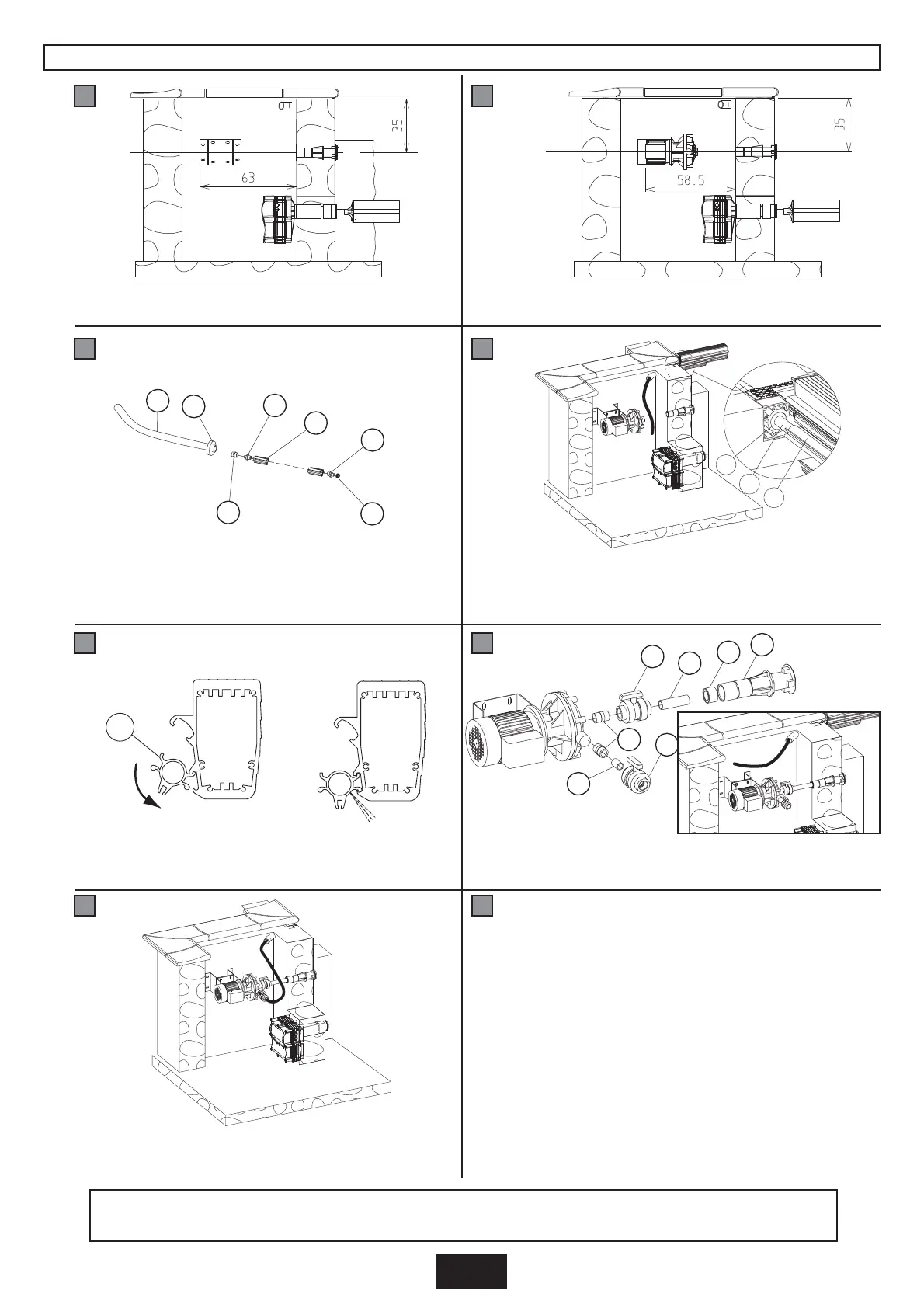

INSTALLATION OF THE CLEANING MANIFOLD KIT
Using the nylon bushings, screws and stainless steel bushings Ø 8,
attach the support plate to the wall as illustrated in the diagram above.
Attach the manifold to the beam. First insert the upper profile, then push
down to clip into position.
Mount the booster on the support plate using the screws,
washers and stainless steel washers Ø 8.
Assemble the plumbing accessories on the cleaning manifold as
illustrated above. Be careful to orient the jet nozzles correctly
. They
should be directed towards the pool.
Pass the PVC hose through the elbow duct until it protrudes into the motor
housing. Insert the PARA seal (part 6) into the duct to ensure leaktightness
of the motor housing.
Connect the booster to the suction fitting
1 2
3
5 6
7 8
4
Connect the hose to the booster via the Ø 25 valve.
Mount the protective plexiglass plate under the duckboarding
exactly above the booster to protect if from the rain. Insert
spacers (part no. 22) between the duckboarding and the plate.
Use “pop” rivets for PVC duckboarding and stainless steel
screws 4.2 x 13 for wooden duckboarding.
ELECTRICAL CONNECTIONS AND OPERATING INSTRUCTIONS:
REFER TO THE “AQUAMAT 3001” INSTALLATION AND OPERATING INSTRUCTIONS
6
3
5
1
2
3
4
6
5
2
3
9
8
5
7
10
11
12
