Procopi Delta STARDECK User Manual

2009/02 - Indice de révision : D - code : 0035431
45/76

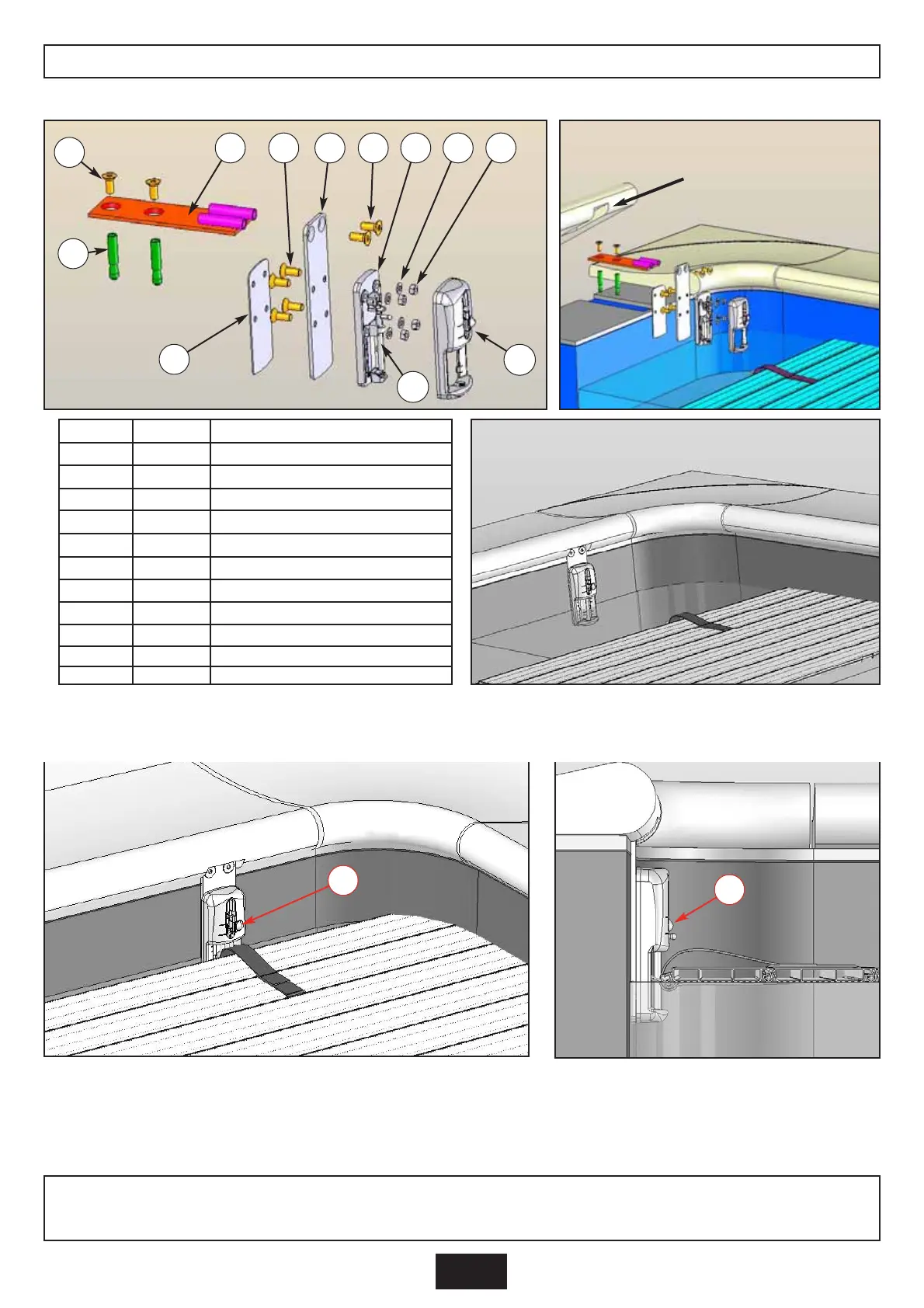

INSTRUCTIONS FOR PREFABRICATED POOLS, THIN WALLS OR POLYSTYRENE BLOCKS
1 8 923
5
11
10
6 7
7
Index Nbr Component designation
1 1 Fastener frame
2 1 Stainless steel fastener bracket
3 1 Fastener support plate
4 2 UPAT bushing M8x50
5 1 Fastener frame gasket
6 4 Countersunk flat head socket screw M6-20
7 4 Countersunk flat head socket screw M8-20
8 4 Washer Z6
9 4 Nut H M6
10 1 Stainless steel slide rod
11 1 Tr im
U
U
SE
SE
A
A
2 P
2 P
ART
ART
FASTENER
FASTENER
ATTACHED
ATTACHED
UNDER
UNDER
THE
THE
COPING
COPING
.
.
Cut-out in the coping
4
Using the fastener support (3) as a template, drill holes (Ø 10 mm - depth 8 mm).
Attach the fastener support plate under the coping using 2 UPAT bushings M8x50 (4) and 2 countersunk flat head socket screws (7).
The fastener frame (1) will be attached to the support plate (2) using 4 countersunk flat head socket screws M6x20 (6) washers Z6
(8) and hex nuts M6 (9).
THE USE OF FASTENING STRAPS IS MANDATORY UNDER FRENCH LAW
DO NOT FORGET TO RELEASE THE STRAPS BEFORE ROLLING THE COVER UP,
FAILURE TO DO SO COULD LEAD TO SERIOUS DAMAGE
BLOCKING THE SLAT COVER CLOSED USING THE FASTENING STRAPS:
Once the cover has been fully rolled out on the surface of the water, press the button “A” and slide the slide bar upwards, then lower it
down through the ring at the end of the strap. Push the slide bar down fully (you will hear a click) to ensure that it is locked.
R
ELEASING THE SLAT COVER:
Press in the button “A” and pull the slide bar up to release the strap.
A
A
