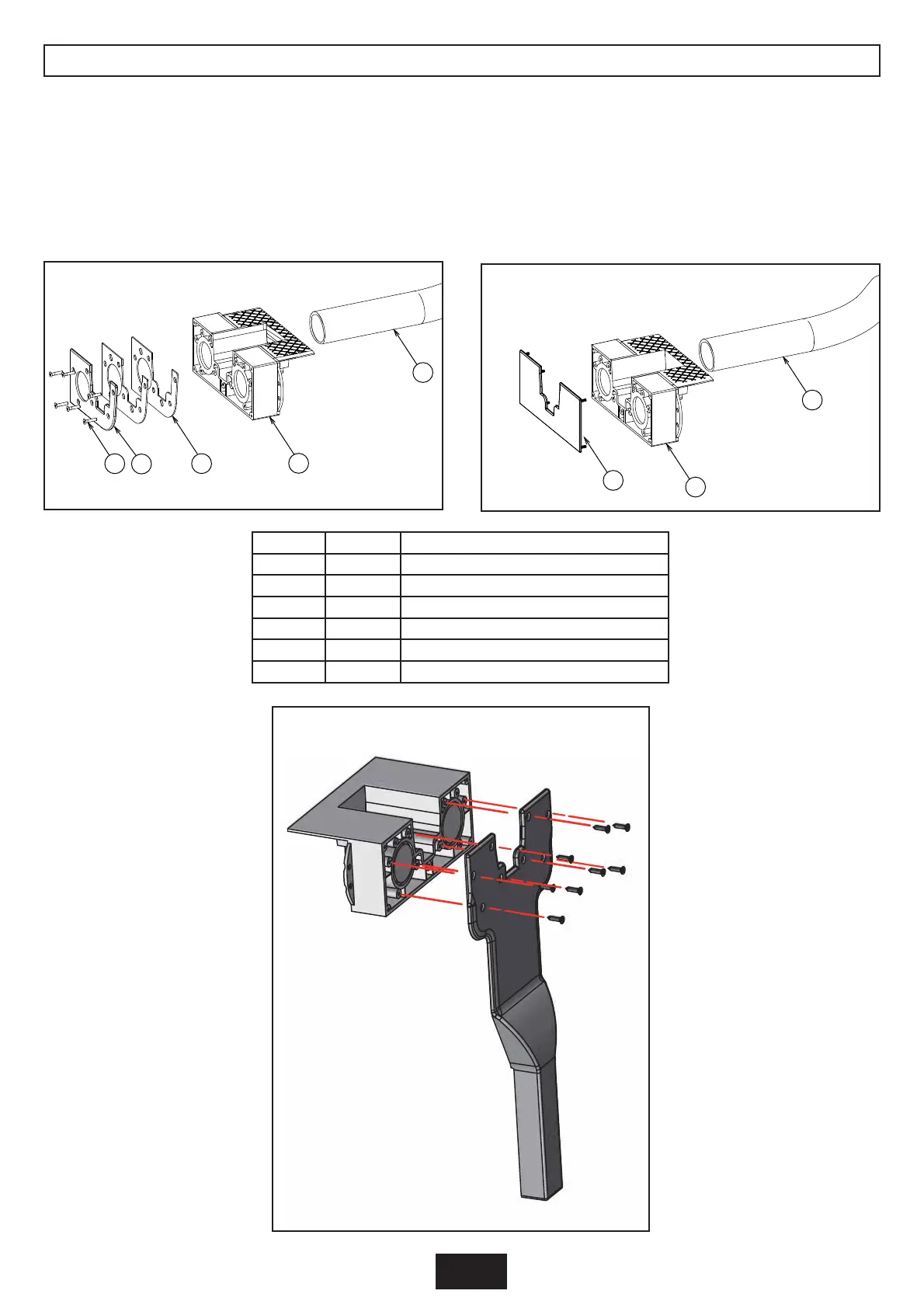

INSTALLING THE LATERAL SUPPORT FLANGES
The lateral support flanges are attached to the beam mounting units.
If the beam mounting units are not yet installed, they need to be put in place, but without installing the flange “4” (liner
pool) or the flange trim "6" (concrete pool).
If the beam is already in position, take up the coping stones at the beam and remove the flange “4” or the flange trim “6”.
Ref Quantity Description
1 1 Elbowed sleeve Ø 50
2 2 Beam mounting unit
3 2 Beam mounting unit seal
4 1 Mounting unit flange (right or left)
5 6 Pozi CSH screw 4.2 x 19
6 1 Mounting unit trim (right or left)
