Procopi Delta STARDECK User Manual

2009/02 - Indice de révision : D - code : 0035431
52/76
NOMENCLATURE
CTRL PANEL POWER SUPPLY: 24 V DC.
MOTOR POWER SUPPLY....: 230 V + Earth
NOMINAL TORQUE............: 250 Nm
SPEED OF ROTATION........: 4 RPM
OUTPUT SHAFT ................: SS, diametre 30 mm
MOTOR PIN GROOVE..........: 8 mm
LEAKTIGHTNESS ................: IP 55 water splashes
MOTOR CASING ..................: 30% glass filled
............................................ polypropylene
TECHNICAL DATA

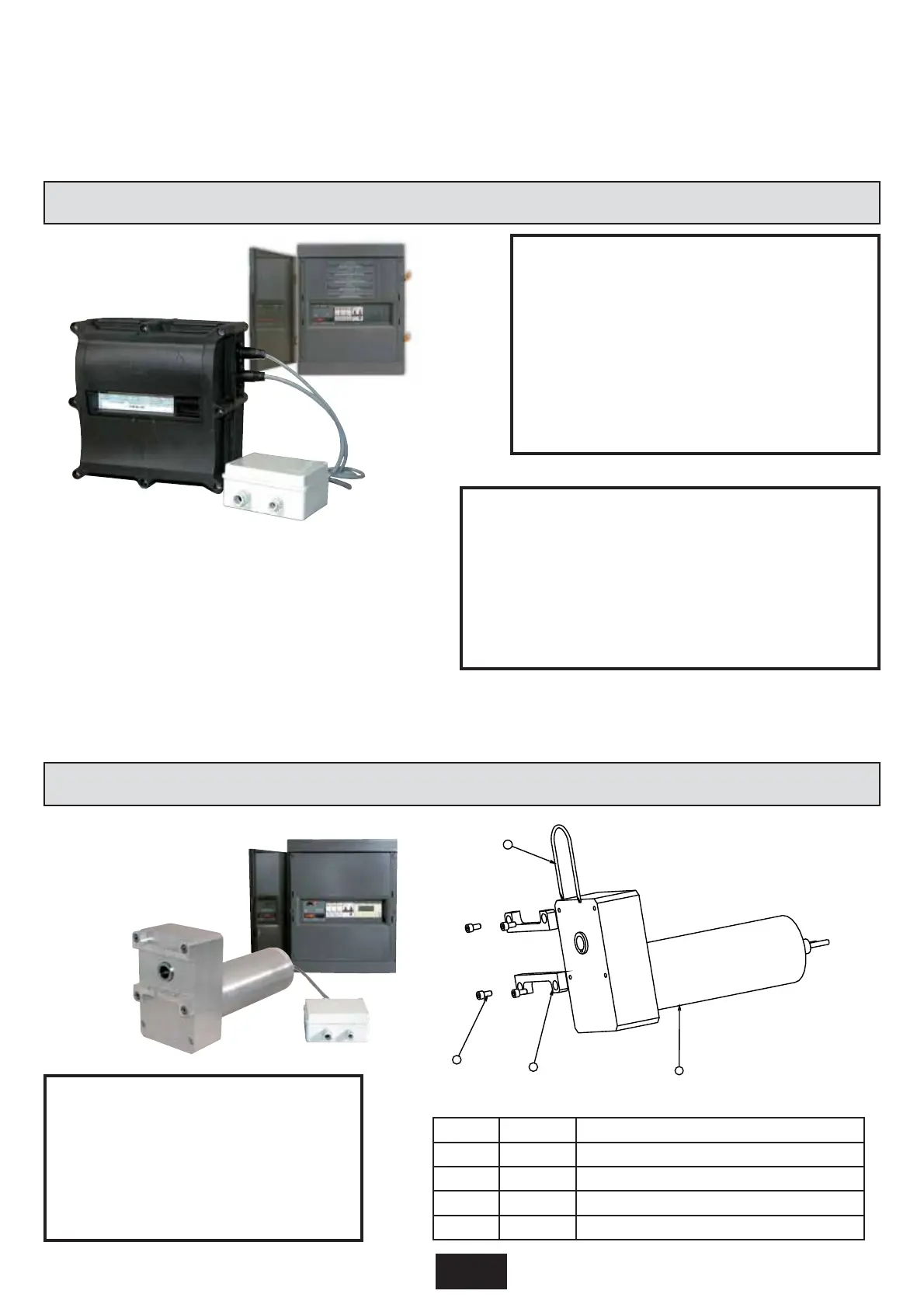

INSTALLATION OF THE “AQUAMAT 3001” OR “PL3”
MOTOR DRIVE SYSTEM
EQUIPMENT PROVIDED
- AQUAMAT 3001 with its junction box
- AQUAMAT control panel
- Drip ring
- Motor pin
- U-shaped pin
EQUIPMENT PROVIDED
- PL3 motor With junction box
- PL3 control panel
- Motor pin
- U-shaped pin
AQUAMAT 3001 MOTOR DRIVE SYSTEM
PL3 MOTOR DRIVE SYSTEM
INDEX NUMBER DESIGNATION
1 1 PL3 motor
2 2 PL3 Adapter
3 4 HSHC screw M10 x 20 SS
4 1 U-shaped pin Ø motor/ feedthrough
4
3
2
1
