2009/02 - Indice de révision : D - code : 0035431
63/76
b
c
d

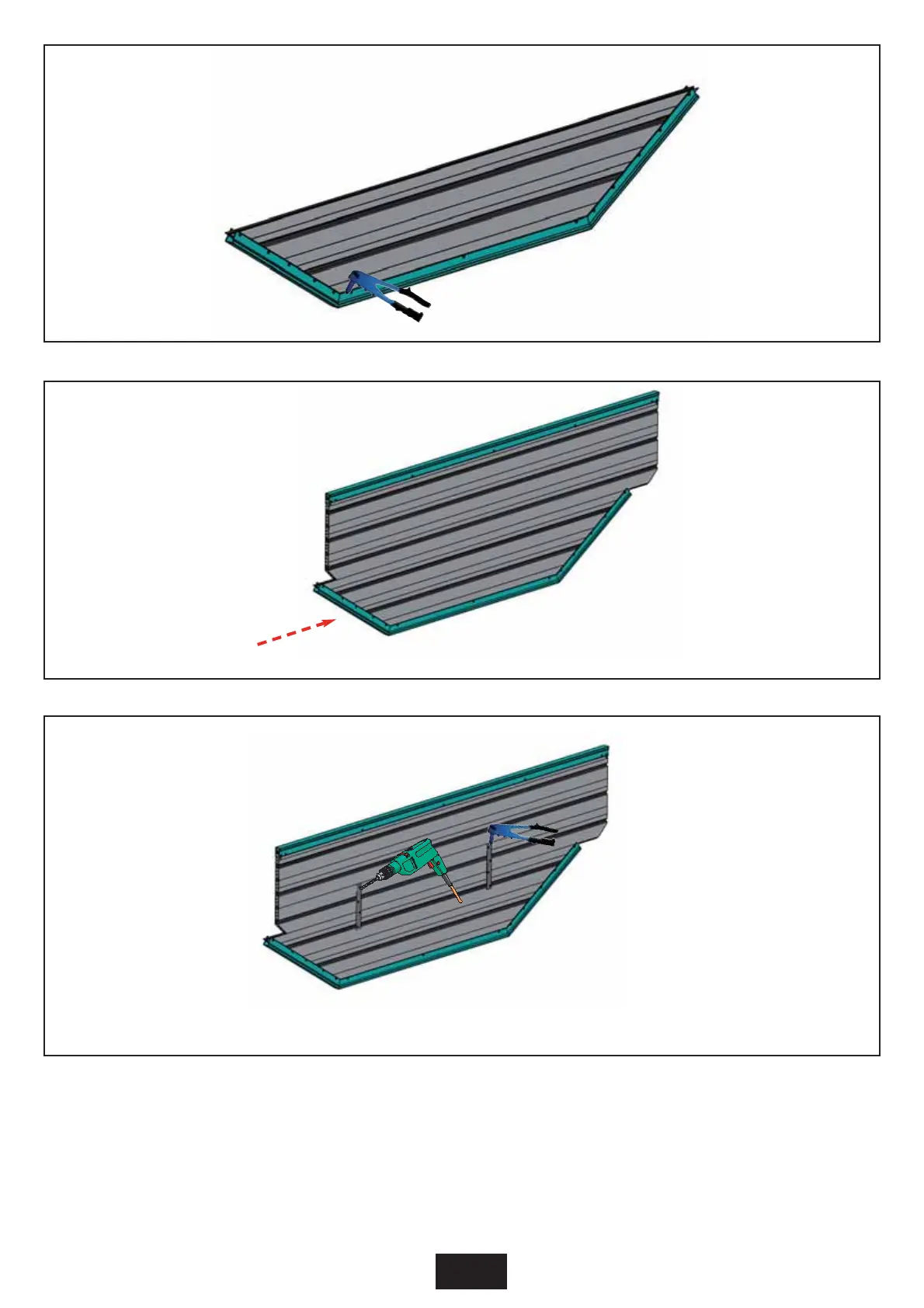

Mount the finishing trim on the partition using aluminium rivets.
Slide the trapezoidal section onto the straight section.
a) Place the partition flat on the ground, pool side down (smooth side).
b) Next position the plats*** such that they lie across the straight section and the trapezoidal section and they divide the
partition into roughly equal areas.
c) Adjust the height of the plats*** to ensure that no hole coincides with a groove or join.
d) Using the holes as a template, drill hole in the partition and rivet the plats*** in position.
