Procopi Delta STARDECK User Manual

2009/02 - Indice de révision : D - code : 0035431
68/76

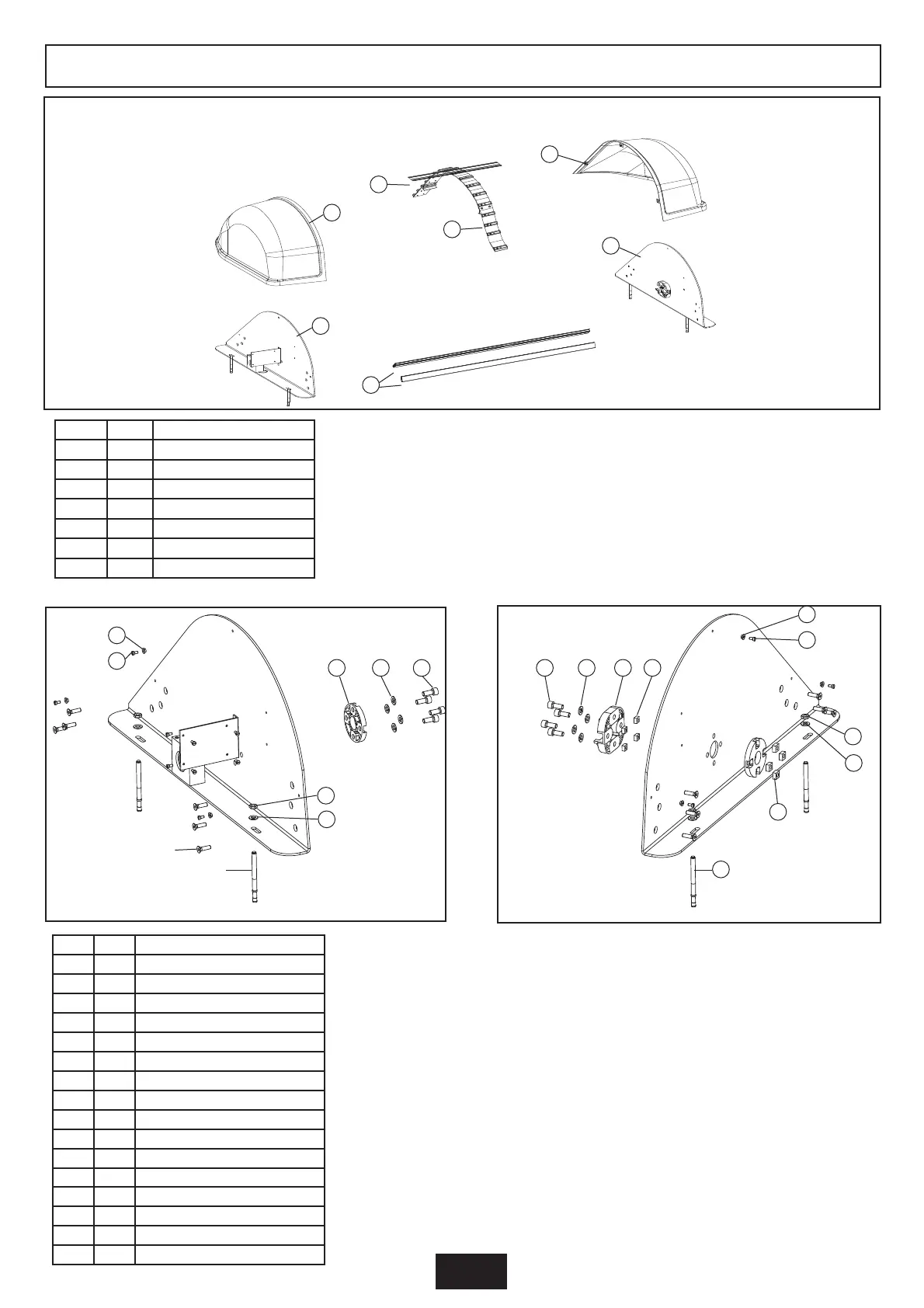

FLANGE MOTOR SIDE
FLANGE BEARING SIDE
NOMENCLATURE
22
6
5
4
1
3
7
2
23
21
20
16
18
10
9
8
8 9
12
22
23
20
21
18
13
11
Ref. Nbr Component designation
1 1 LH arched flange - white alu
2 1 RH arched flange - white alu
3 2 Joist 150x45 alu
4 5/6/7 Arched brace
5 17 PVC housing slat
6 1 Flange trim motor side
7 1 Flange trim bearing side
Ref. Nbr Component designation
8 8 HSHC M10x25 SS
9 8 Washer Z10 SS
10 2 STARDECK throughwall flange
11 4 Square nut M10 SS
12 1 Bearing flange, above ground
13 4 Square nut M8 SS
14 1 Motor bearing
15 1 Aluminium bracket
16 12 Countersunk flat socket head screw M8x30 SS
17 12 HSHC M8 screw cover, white
18 4 Express pin Ø 10x120 SS
19 4 Washer Z10 SS
20 4 Nut M10 SS
21 4 TH M10 screw cover, white
22 8 Grommet M5x3.5 Pa
23 14
Cap screw M5x10 SS
