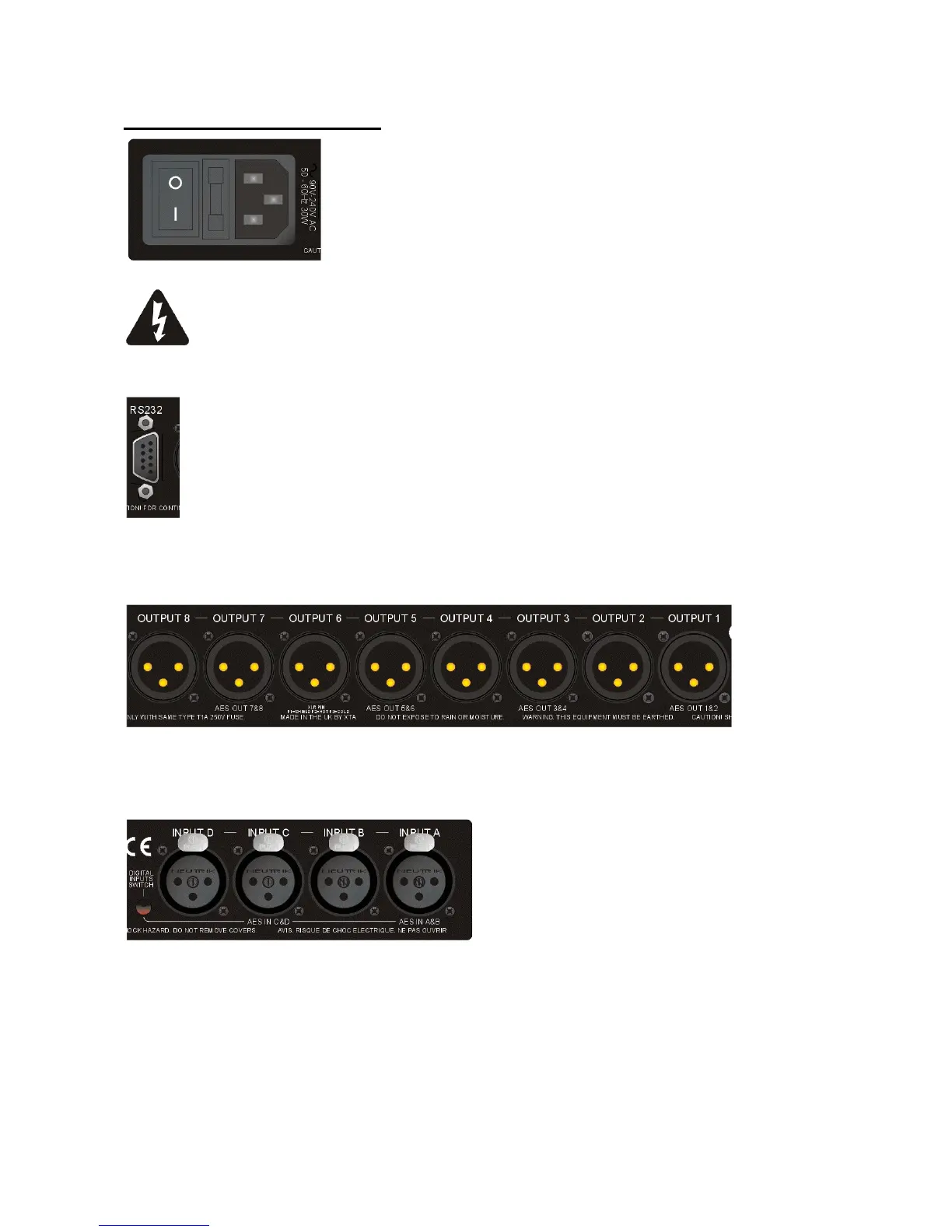

RearPanelConnections



PowerSwitch:turnstheunit’smainssupplyoffandon.

MainsFuse:locatedinafinger‐proofholderadjacenttothemainsinlet.A

sparefuseisalsolocatedinthisholder.

MainsInlet:connecte dviaastandardIECsocket.





Alwaysreplacethefusewiththecorrecttypeandratingasshownontherearpan

ellegend.



RS232:RS232standardviaa9pinD‐typeconnector,forconnectiontoaPC.







AudioOutputs:3pinXLRsocketsareprovidedforeachchannel.Allarefullybalanced,pin2hot,3cold,1



screen.



AESInputSwit

ch:RecessedswitchtoselectAESdi gital inputs.RedLEDwillilluminateintheholewhen

AESinputsareselected,alongwiththecorrespondingfrontpanelindicator.

AudioInputs:3pinXLRsocketsareprovidedforeachchannel.Allarefullybalanced,pin 2hot,3cold,1

screen.



Notethelege

ndingonthepaneltodesignatewhichinputsareusedforAESwhenthedigitalinputsare

enabled.Pleaseseepage26formoreinformation.
