PROEL DSO480 - Parametric Filter Configuration; Standard Parametric EQ

34
ParametricFilterTypesandTheirUses
AwideselectionoffiltertypeshasbeenmadeavailableunderthePEQsectionwheneditinginputoroutput
filters.ScrollingthroughthevariousfiltertypesisachievedbyrepeatedpressesoftheENTERkey.Notethat
thiswillonlychangefiltertypesifthefilterisBYPASSEDortheGAINsetto0dB.Bypassingth
efilter,then
changingtypesusingtheENTERkeywillautomaticallysetthegainbackto0dB.

Eachfiltertypewillbeexplainedinturninthefollowingsection.

Standard Parametric EQ

InA Input A PEQ:1<>
1k00Hz Q=3.0 0.0dB


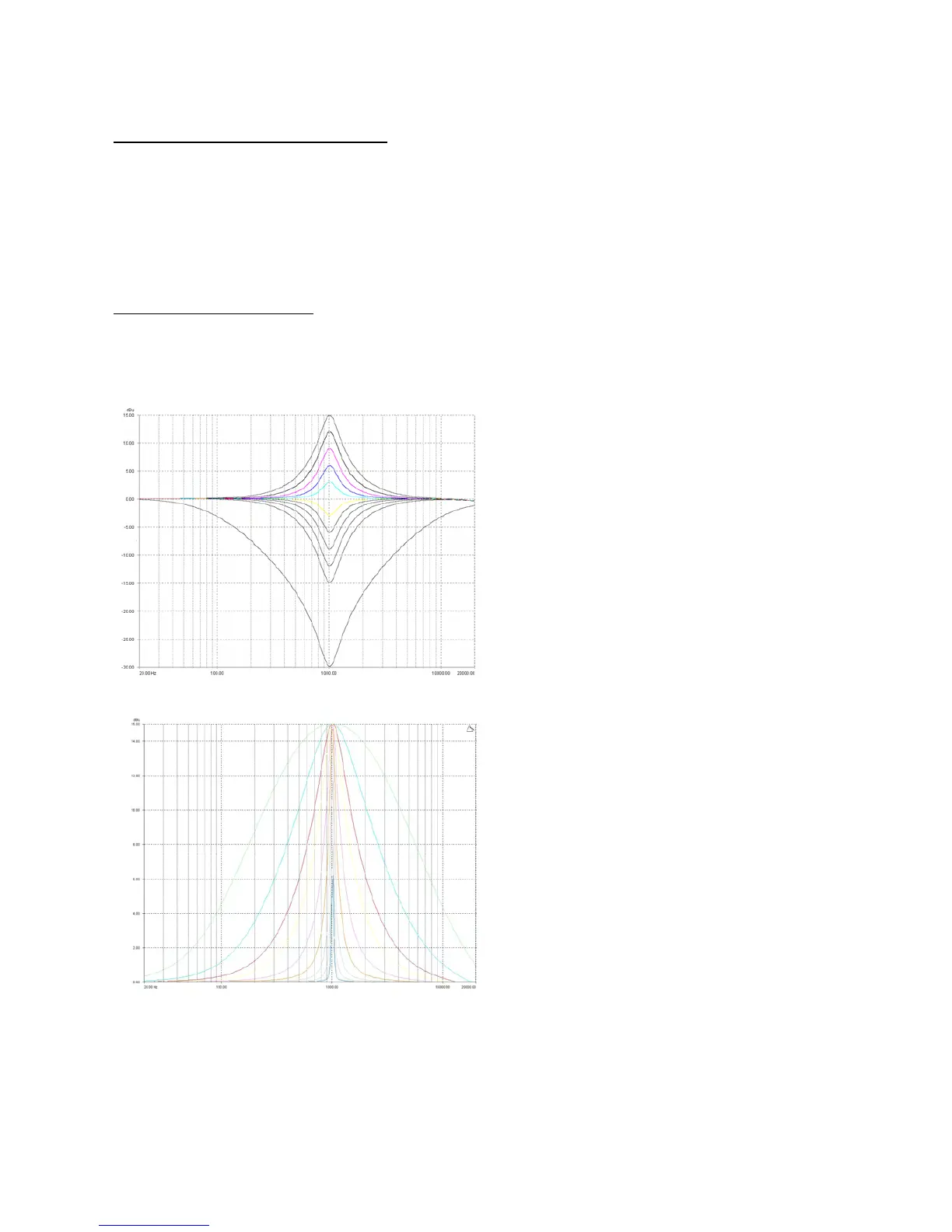

Thestandardparametricbandhasadjustable
frequency,‘Q’(orBandwidth)andGaincontrols.
Theseaffectarangeoffrequenciessymmetrically
aboutthecentrefreqencyasshowninthegraph.

Variouslevelsofcutandboostareshowntothe
left,alongwithvarious‘Q’settings(gainboostsonly
areshownbe
low).Rememberthat‘Q’is
1/Bandwidth,sothehigherthe‘Q’,thelowerthe
Bandwidth,andthesmallertherangeoffrequencies
affected.






