20
Ganging=Free Assign [choose ganging]
Ganging=1+2+3+4+5+6+7+8 [1 x 8 way]
Ganging=1+5 2+6 3+7 4+8 [4 x 2 way]
Ganging=1+3+5+7 2+4+6+8 [2 x 4 way]
Selecting Free Assign and then pressing ENTER will begin the process of ganging
outputs together using the following simple rules:
 All outputs are ganged to the lowest number – so to gang 3 & 5, 5 must be
selected and then ganged to 3.
 Outputs cannot share more than one ganging set – so for example output 3 cannot
be ganged to 2 and 4 unless they are ganged together as well. (Effectively 3 and 4
are ganged to 2 in this case)


Withtheserulesinmind,selectingandsettingupgangsisquitestraightforward.

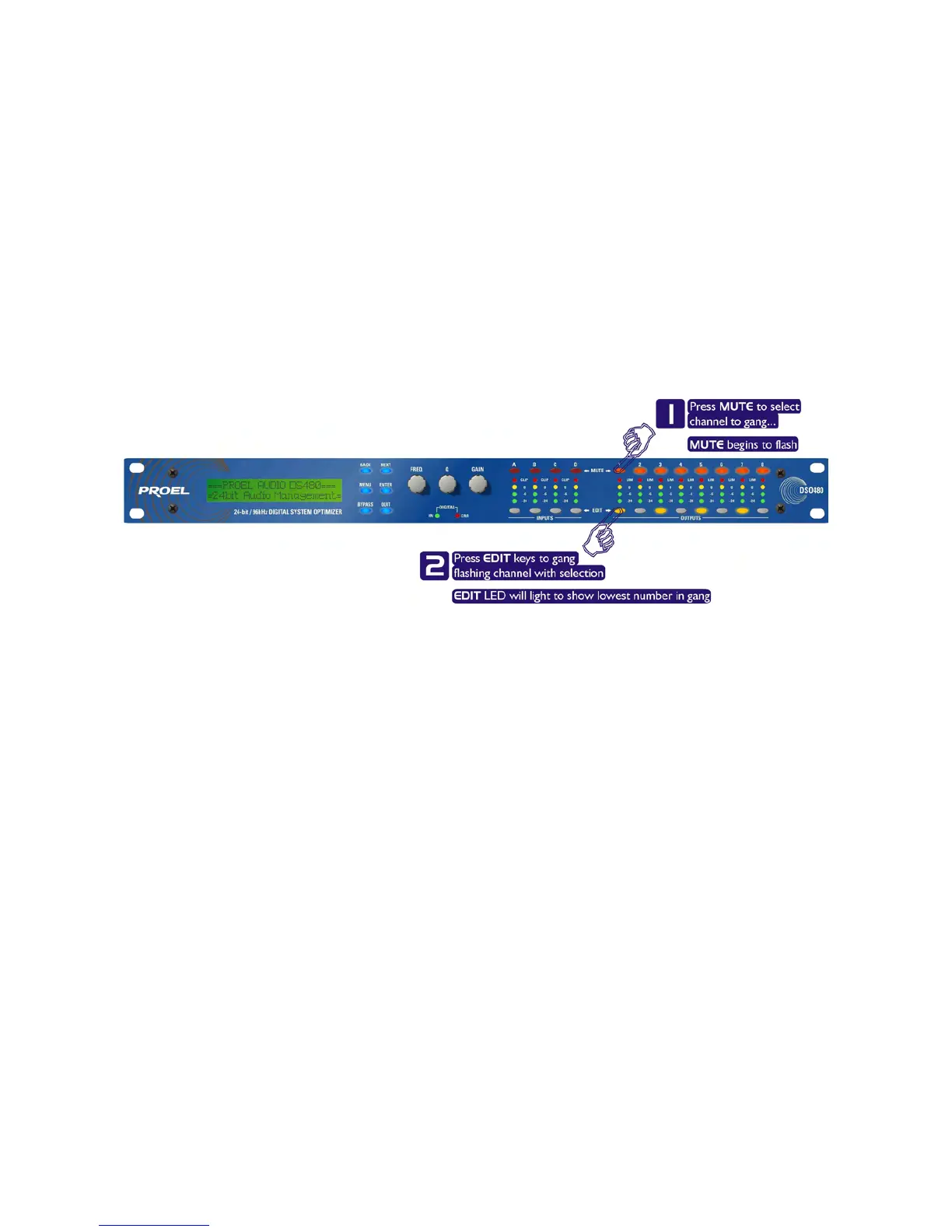

PressaMUTEkeytochoosetheoutputtogang–itsLEDwillbegintoflash,andanEDITkeywillilluminateto
showwhichoutputitiscurrentlygangedwith.Tochangethisselection,justpr
essanotherEDITkey,
rememberingthatgangsworkfromthehighesttolowestnumber.So,togangoutputs1and5,pressMUTE
5thenEDIT1–thedisplaywillshow
<-Crossover Ganging
Gang Output 5 with 1

GangingisclearedbyselectingGanging=None fromtheinitialchoicesgivenabove.The Input
Ganging procedureisidenticaltothecrossoverganging,selectableunderthe Input Sub-Menu.
